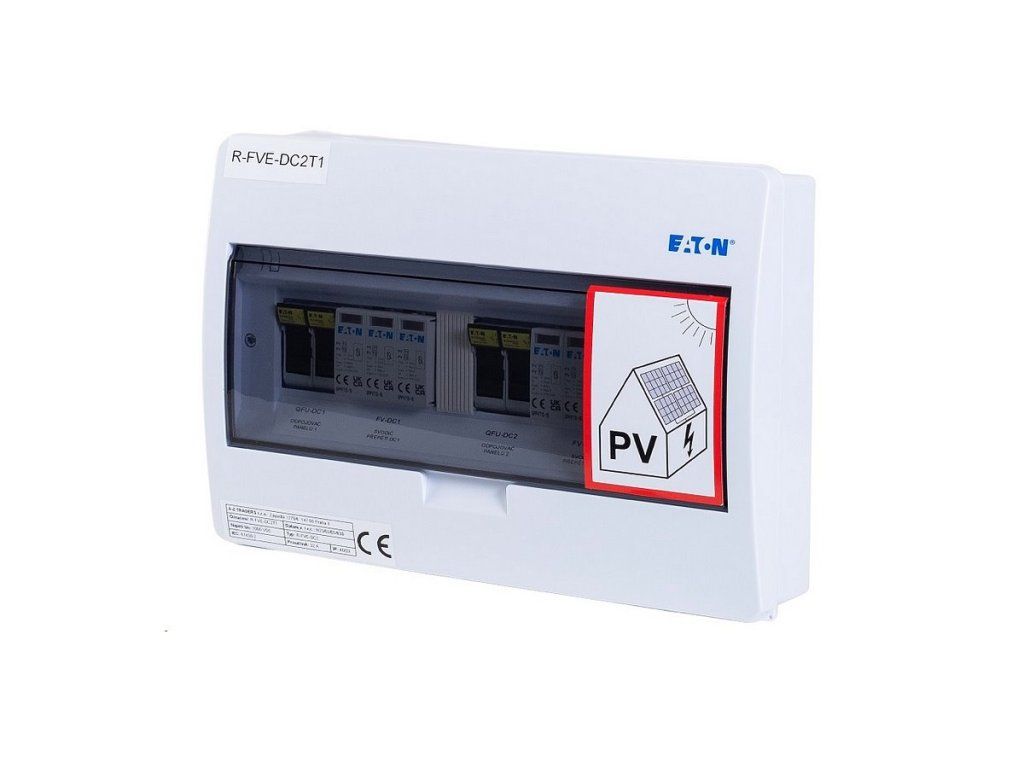

Switchboard R-FVE-DC2T1 EATON, T1+T2 (1000V DC / 32A) for 2 strings IP40 certified

Product detailed description

Certified DC2 switchboard EATON T1+T2 (protection class I+II) for 2 strings including test report for wall mounting, IP40 serving as an input switchboard from photovoltaic panels (to inverter) for the entire portfolio of photovoltaic power plants. Complete certified DC switchgear including test report for wall mounting, IP40 serving as an input switchgear from PV panels (to inverter) for the entire PV power plant portfolio. It has the advantage of a small footprint, the ability to be "stacked" with other AC switchgear side by side or underneath, making it possible to install it in a space where it may be difficult to find enough free space. A DC surge arrester with fused disconnects including gPV fuses to protect the DC input to the inverter is fitted in the switchboard. The individual components mounted on the DIN rail are already interconnected, which ensures time-saving installation. Component list -1x EATON, BC-O-1/12-ECO - Switchboard for plasterboard, transparent plastic door, 1 row, 12 modules -2x EATON, SPPVT12-10-2+PE - Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max.short-circuit current 1000A -4x EATON/ETI/OEZ, CH10x38 gPV 16A/1000V DC - Ultra fast cylindrical fuse for photovoltaic applications, (UL standard), 10x38mm, 1100V DC, 15A -2x EATON, CHPV2U - Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm) Notice: The device may only be installed by an authorised person with an electrical qualification. Incorrect wiring/setting of the product and other components in the installation may lead to damage and irreversible damage and electric shock. Claims due to incorrect wiring/setting cannot be accepted. We are not responsible for improper wiring and any damage caused by it.
