System insulation board UHP52 (STIROTERMAL DUO 30)
Code: STIROTERMAL DUO 30Related products
Product detailed description

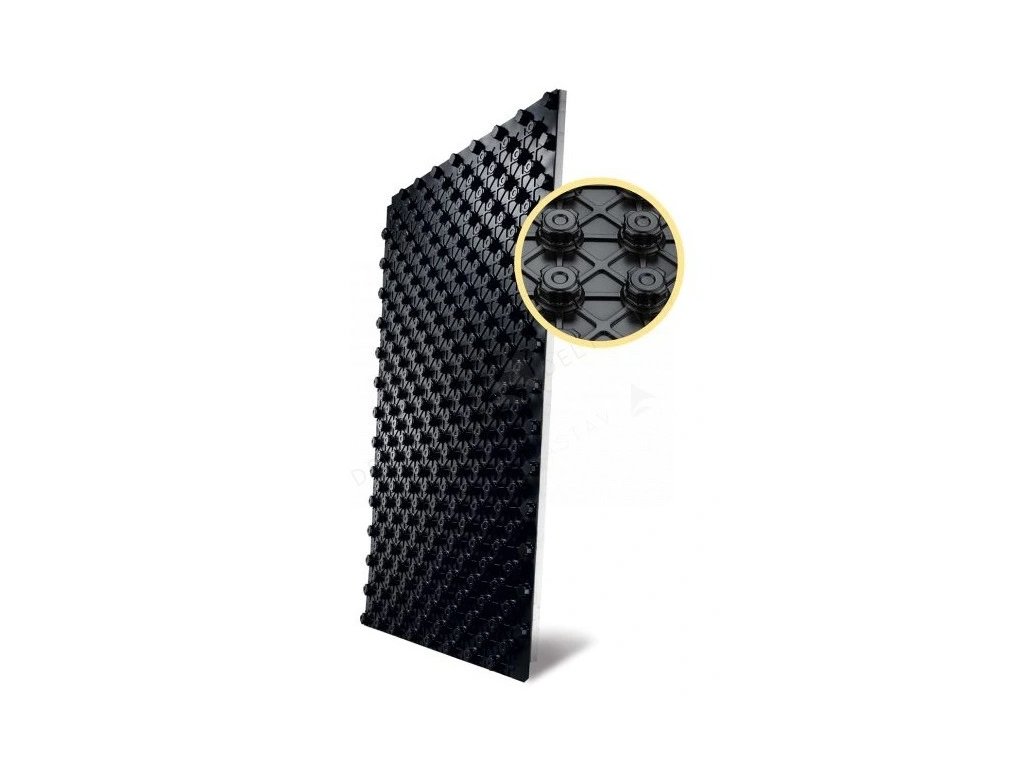

Systemic insulating polystyrene board UHP52 (STIROTERMAL DUO 30) for floor heating with PS hard foil. For very high retraction.
Note: The price is for 1 m2.
Board size:1.12 m2
Pipe diameter: 14 - 18 mm
Bending strength: 120 kPa
Total height: 52 mm
In one package there are 7,84 m2 or 7 pcs of boards.
Systemic polystyrene insulation board UHP52(STIROTERMAL DUO 30) for underfloor heating is suitable for very high load, industry, car service, production hall.
The impact film is made of hardened PS plastic with a thickness of 0.6 mm.
All system boards contain a so-called "lock", guaranteeing the overlap of each side of the board with the next board, thus ensuring no concrete penetration under the polystyrene.
The upper part of the slab consists of octagonal protrusions (mushrooms) with overhangs allowing quick and easy installation (the pipe does not subsequently jump out) of any pipe with a thickness of 14 to 18 mm.
In the inner part of the plate under the projections there are 5 mm small projections, which ensure that the pipe is perfectly encased with grout, thus also from the bottom. This ensures perfect heat transfer to the heating plate around the entire circumference of the pipe.
For more information, visit www.systemova-doska.sk, or for a underfloor heating installation guide with FAQs, visit www.systemova-doska.sk/podlahove-vykurovanie/
- for pipe diameter : 14 - 18 mm
- pipe spacing : 50, 100, 150, 200 mm
- insulating material : EPS 120
- net dimension of the board (real usable dimension) : 1400 x 800 mm
- net board area : 1,12 m2
- total thickness : 52 mm
- Insulation thickness : 30 mm
- coefficient of thermal conductivity : 0,036 W/(m.K)
- thermal conductivity : 0,85 m2 K/W
- maximum load : 2400 kg/m2
- thermal resistance : 80 °C
- fire classification EN 13501-1 : E
- fire classification DIN 4102 : B1
- foil thickness : 0,6 mm
- foil material : PS
- foil colour : black
- quantity per package : 7,84 m2 / 7 sheets
- country of origin : EU
Additional parameters
| Category: | Polystyrene, system boards |
|---|---|
| Warranty: | 2 roky |
| Weight: | 1.58 kg |
| Čistá plocha dosky: | 1,12 m² |
| Čistý rozmer dosky (rozmer reálne použiteľný): | 1400 x 800 mm |
| Farba fólie: | čierna |
| Hrúbka fólie: | 0,6 mm |
| Hrúbka izolácie: | 30 mm |
| Izolačný materiál: | EPS 120 |
| Koeficient tepelnej vodivosti: | 0,036 W/(m.K) |
| Materiál fólie: | PS |
| Požiarna klasifikácia DIN 4102: | B1 |
| Požiarna klasifikácia EN 13501-1: | E |
| Pre priemer potrubia: | 14 – 18 mm |
| Rozteč uloženia potrubia: | 50, 100, 150, 200 mm |
| Celková hrúbka: | 52 mm |
| Krajina pôvodu: | EU |
| Maximálne zaťaženie: | 2400 kg/m² |
| Množstvo v balíku: | 7,84 m² / 7 tabúľ |
| Tepelná odolnosť: | 80 °C |
| Tepelná vodivosť: | 0,85 m² K/W |
