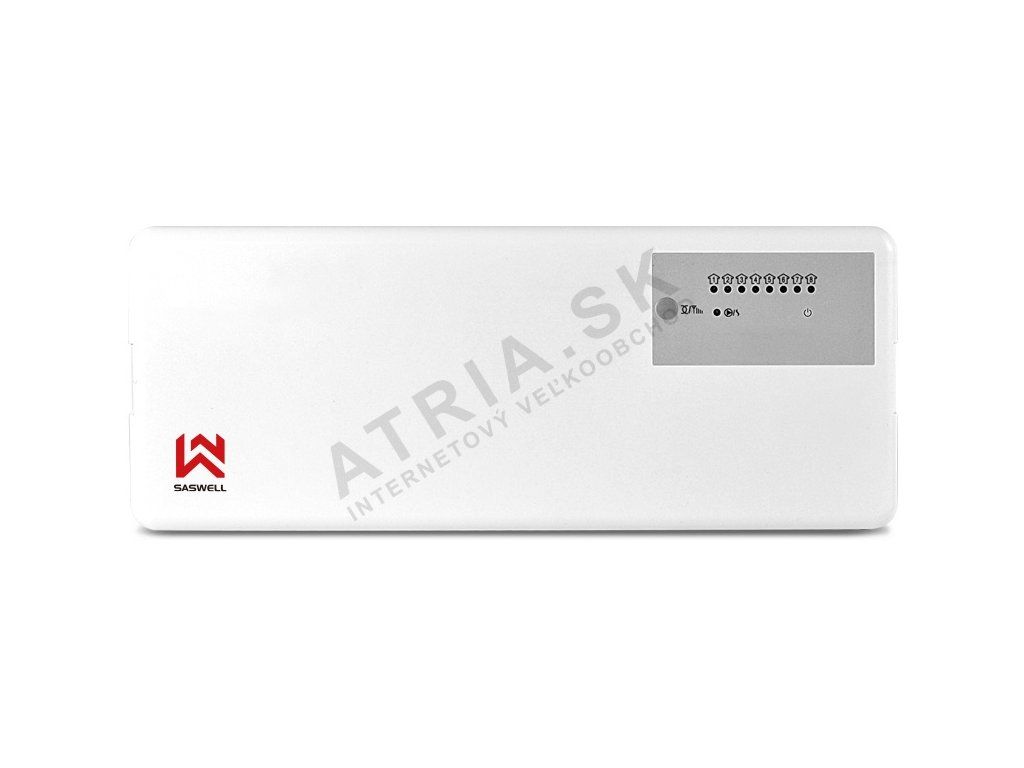

Saswell SCU209LED switchboard

Product detailed description

The Saswell SCU209LED switchboard is commonly used in residential and commercial buildings where radiant floor heating systems are installed. This unit serves as a central control point for multiple thermostats and ancillary components, allowing precise regulation of heating circuits. Installers working with low-voltage thermostats and digital controls will find this device suitable for applications requiring individual zone management. It is frequently integrated into systems that require timed operation or seasonal adjustments using external actuators and valves.

Typical installation environments include underfloor heating in bathrooms, kitchens, and living areas where zoning is necessary. The compact design allows mounting in electrical cabinets or behind wall panels. Installers should ensure that the installation site is free from moisture and vibration, and that the ambient temperature remains within the specified operating range. This ensures long-term reliability and correct functionality of the connected thermostats and actuators.

Technical parameters

EAN	3838088460327
Package dimensions (mm)	50/290/120
Power supply	100-240 VAC 50/60 Hz
Operating temperature	-20 °C to 60 °C
Dimensions (height/width/depth)	280/110/40 mm
Storage temperature	-20 °C to 70 °C
Weight	0.6 kg
Code	SCU209LED-TM1

The operating voltage range of 100–240 VAC makes this device compatible with standard single-phase AC supplies across Europe, supporting both 50 Hz and 60 Hz frequencies. The -20 °C to 60 °C operating temperature range ensures suitability for most indoor environments, while the storage range of -20 °C to 70 °C allows safe transport and storage in extreme conditions. The physical dimensions allow it to fit into standard junction boxes or control panels, while the weight of 0.6 kg simplifies handling during installation.

Installation and connection

To install the Saswell SCU209LED, begin by securing the unit in a dry location with sufficient ventilation. Connect the power supply using standard wiring techniques, ensuring correct phase and neutral connections. Thermostats, timers, and actuators can then be connected to designated terminals according to the circuit diagram provided by the manufacturer. Each thermostat input should be clearly marked to prevent miswiring, particularly when multiple zones are involved. A common mistake is incorrect polarity when connecting control devices, which can lead to improper operation or damage. Always verify continuity between inputs and outputs using a multimeter before energizing the system. Additionally, ensure that all connections are tightened securely and insulated properly to prevent short circuits or exposure to environmental factors. Incorrect cable routing can also cause interference with nearby electronic components, so maintain separation between signal and power lines where possible.

Compatibility and accessories

The Saswell SCU209LED is designed to work with up to eight thermostats, making it ideal for multi-zone floor heating systems. Additional compatible components include programmable timers, motorised actuators for valve control, and dual-port valves. When designing a system, ensure that all connected devices operate within the same voltage and frequency range and share compatible signal protocols. While the SCU209LED includes all necessary internal circuitry, external components such as thermostats and actuators must be sourced separately. No specific accessories are included with the device, so installers must prepare all required components in advance. Correct matching of input/output types is essential for reliable system performance.

Technical background for designers

This switchboard operates by receiving signals from thermostats and using those to control the flow of electricity to heating elements or valves. Internally, solid-state relays or contactors manage switching functions, and LED indicators provide real-time feedback on each channel’s state. The device is constructed using durable materials suitable for indoor environments, with a non-corrosive housing to resist humidity and dust. The modular design allows for easy expansion or reconfiguration of the system, making it well-suited for both new builds and retrofit projects. The thermal stability of the enclosure ensures consistent performance across a wide range of ambient temperatures. Longevity is supported by the absence of moving parts in the switching mechanism and the use of sealed contacts, which reduce wear and tear over time. However, exposure to extreme temperatures outside the specified range may affect component life and accuracy of control.

Service and operation

Routine checks should include verifying the tightness of terminal connections and inspecting for signs of overheating or insulation wear. The LED indicators provide immediate visual confirmation of active channels, reducing the need for invasive testing. While no scheduled service intervals are specified in the technical documentation, periodic inspections are recommended after major system changes or in environments with high dust levels. During troubleshooting, isolate the unit from the power supply and test individual channels for continuity and resistance. Replace any faulty components promptly to avoid disruption of the entire heating system. Ensure that replacement parts match the original specifications to maintain safety and performance standards.

Frequently asked questions

Can the Saswell SCU209LED be used with digital thermostats?
Yes, provided the digital thermostats operate within the same voltage and frequency range as the switchboard and are wired correctly to their designated inputs.

Is it possible to connect more than eight thermostats to this unit?
No, the maximum number of thermostats is limited to eight due to the fixed number of input channels available on the device.

Can the switchboard be mounted vertically or horizontally?
It can be mounted in either orientation, as long as the installation surface is stable and the ventilation requirements are met.

Does the Saswell SCU209LED support integration with smart home systems?
According to the technical documentation, no direct support for smart home integration is stated. Additional interface modules would be required for such functionality.
