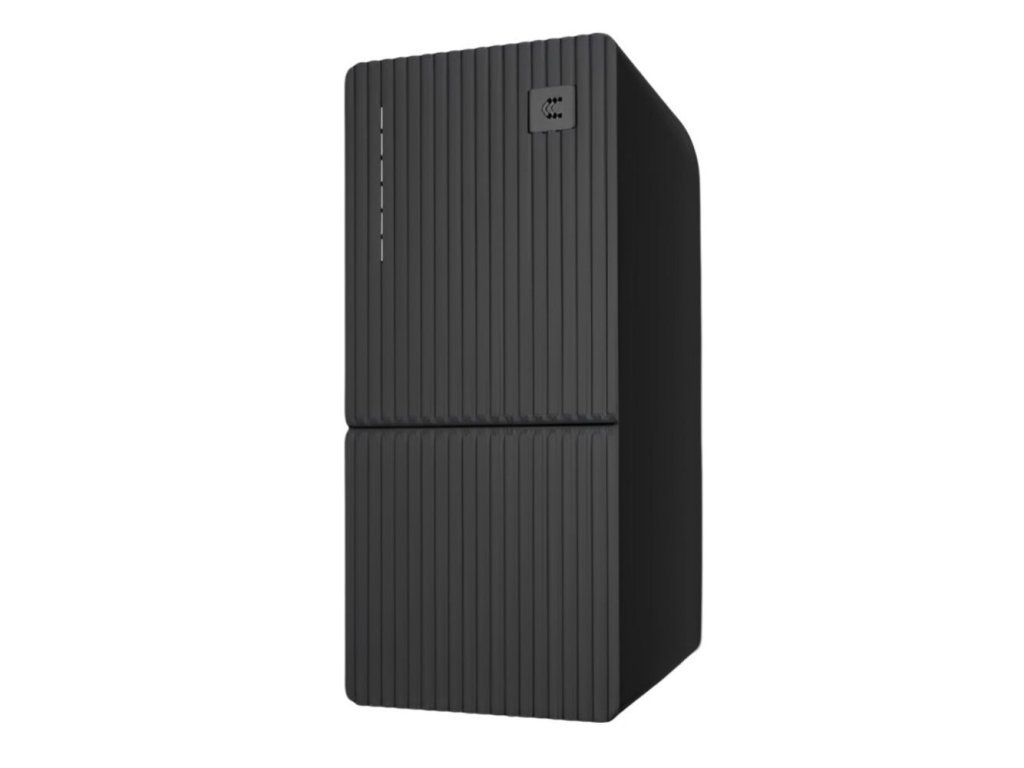

Teltonika TeltoCharge charging station for electric vehicles, 22kW, 3 phases, Type 2 socket, modem, without cover

Product detailed description

Elegant charging station for electric vehicles and plug-in hybrids with up to 22 kW of power and Type 2 socket. It offers control via Ethernet, Wi-Fi, 4G/LTE Modem (Quectel EG91-EX) or Bluetooth and supports OCPP 1.6 and Modbus/RS-485. It allows authorization via RFID (NFC) card or app, which also allows management and monitoring of charging. The station supports solar integration and dynamic power management. IP55 and IK10 protection makes it suitable for outdoor use. The charger ensures safe and efficient charging even in harsh environments such as public parking lots, garages or home environments. Charger without cover - cover must be ordered separately ! Key Features - Power: 22 kW - Input voltage: 3× 400 V (1× 230 V possible) - Input current: up to 32 A - Output: IEC 62196 Type 2 - 4G/LTE communication modem - Quectel EG91-EX - Current protector: no - Protection category: IP55, IK10 - Operating temperature: -30 to +50 °C - Dimensions: 341 × 170 × 94 mm - 1 NFC card included - Charger without cover - cover must be ordered separately
