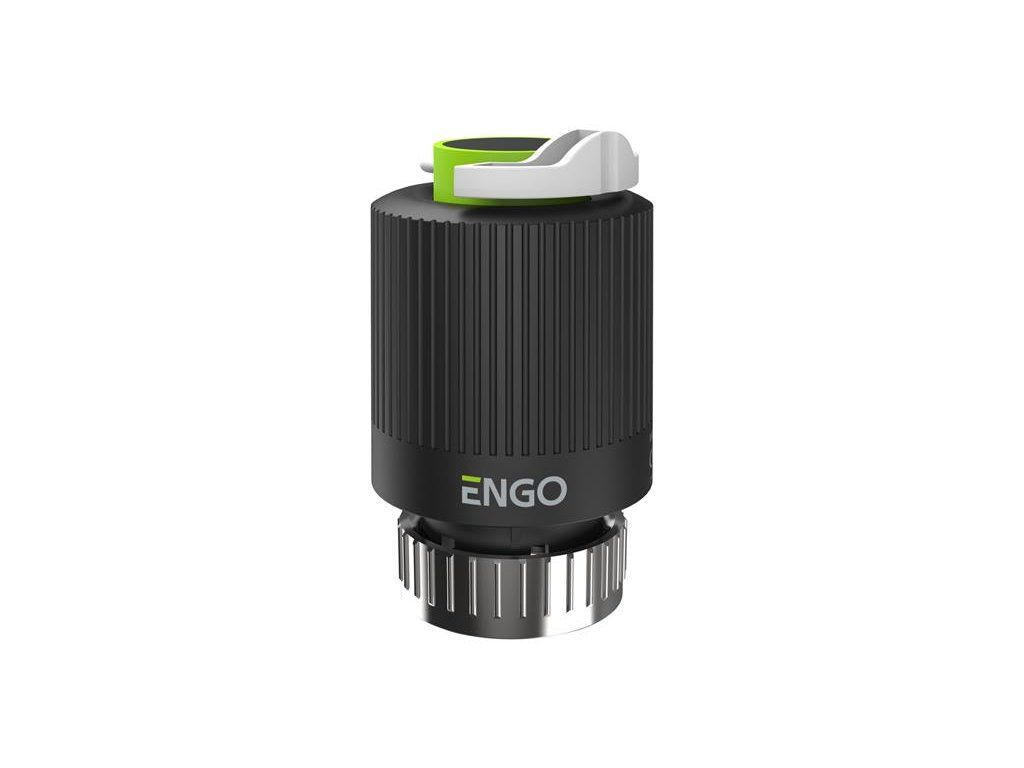

Thermoelectric drive ENGO E28NC-230
Code: TI_06446822Product detailed description
Thermoelectric actuator 230 V, M28x1,5, without current, closed
The thermoelectric actuator is designed to control the heating system. It can be used with valve inserts in the manifold for underfloor heating or with zone valves. It allows opening or closing of the zone valve of the underfloor heating / radiator. Works directly with the thermostat or indirectly via the central terminal block.
Technical parameters:
Design: NC = voltage-free contact.
Thread dimensions: M28 x 1.5 mm
Power supply: 230 V AC 50 Hz
Power consumption: 2W
Switching current: 300mA / 200ms
Strength: 100N +/- 20%
Maximum stroke: 4.5 mm
Storage temperature: -25°C to +60°C
Ambient temperature: max. +60°C
IP protection: IP 54/II
Cable length: 90 cm
Dimensions [mm]: Φ 41 x 65
Additional parameters
| Category: | Thermostatic head |
|---|---|
| EAN: | 5904665764626 |
| EAN: | 5904665764626 |
