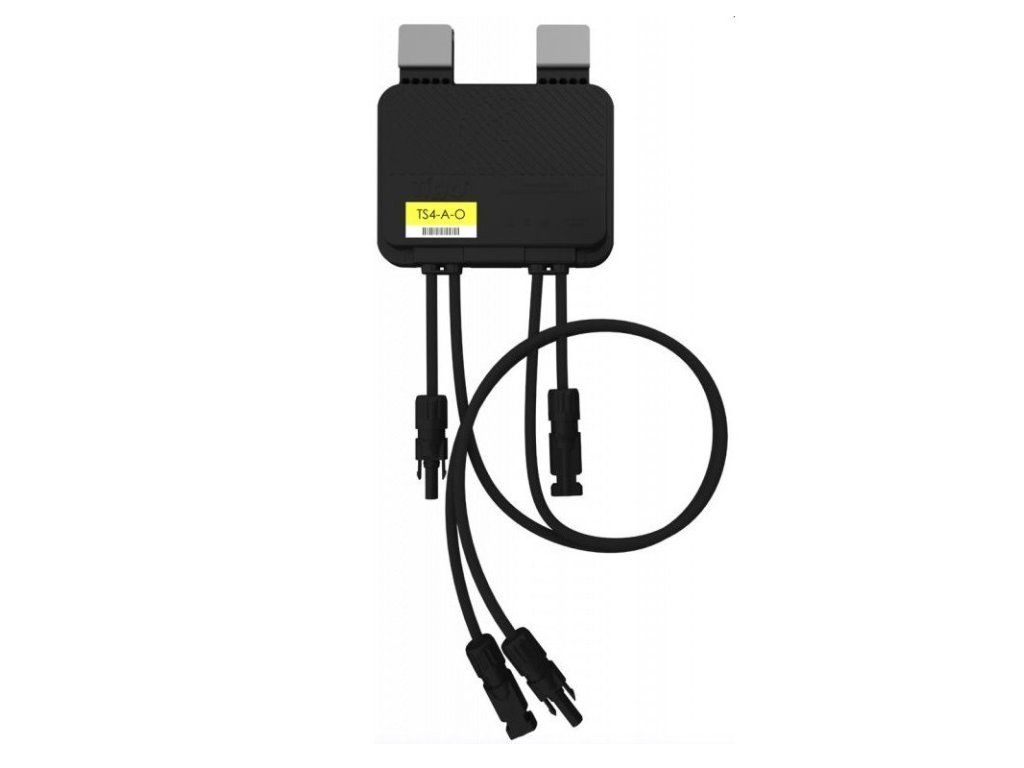

Tigo TS4-AO-700W power optimizer

Product detailed description

An advanced complementary optimization solution that brings a smart module to standard PV modules for higher reliability. Improve energy efficiency by upgrading underperforming PV systems (partially shaded panels / differently arranged panels) or add smart features to new or existing installations. The TS4-A-O complies with NEC 2017 and 2020 690.12 Rapid Shutdown specifications when installed on each module, along with Tigo Access Point (TAP) and Cloud Connect Advanced (CCA). DC generation data at the module level, as well as data from other Modbus-connected devices, can be analyzed via Tigo's Energy Intelligence software when connected to the cloud. The TS4-A-O with UHD-Core technology and extended specifications supports PV modules up to 700W and 15A For partially shaded systems, we only equip the optimization function for modules that are directly shaded. In most cases, this is no more than 20% of the modules of the entire system. With Tigo TS4, customers only pay for the optimization they really need - - Improves PV efficiency when shading, pollution or complicated roofs - Higher energy yield - Greater design flexibility - Maximum rooftop utilization - Plus all the benefits of safety and monitoring - Works with any inverter and charge controller (except Victron Energy products) Product parameters: Environmental Operating temperature range: -40 °C to +70 °C (-40 °F to +158 °F) Protection rating: IP68, NEMA 3R Maximum mounting altitude: 2000 m Mechanical Dimensions W=138.4 mm, L=139.7 mm, H=22.9 mm Weight 520 g Electrical Maximum input voltage: 80V Input voltage range: 16 - 80 V* Maximum current draw (Imax): 15A Maximum short circuit current (Isc): 20A Maximum power: 700W Cable length (input/output): 0.12/1.2 m (standard) Connectors: MC4 (standard), EVO2 (optional) Communication Type: wireless Recommended fuse value: 30A Quick shutdown time limit: 30 seconds or less** AWG wire gauge: 10-12 AWG PVRSE controlled conductors: ?30 Vdc, ?240VA, ?8A** Cloud Connect Advanced (CCA) is required for module-level shutdown and monitoring. *VMOD MAX of connected panel = TS4-AO VDCU MAX **Limits are based on NEC 690.12 fast shutdown requirements.
