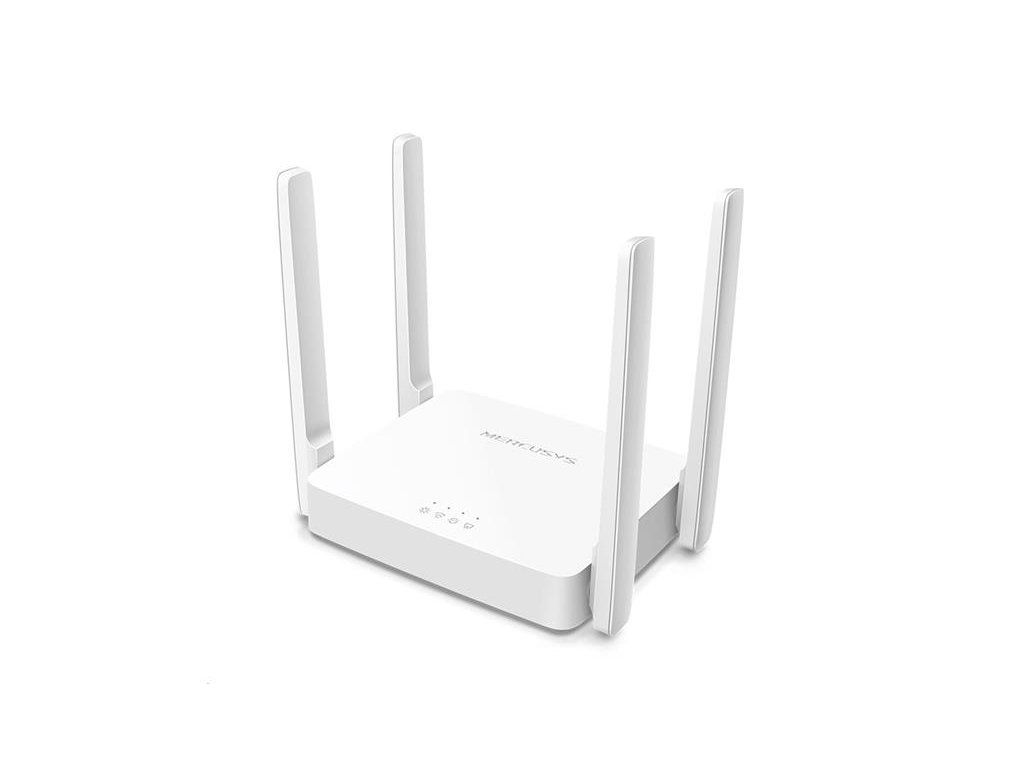

TP-LINK Mercusys AC10 router

Product detailed description

The Mercusys AC10 2-band wireless router with support for the advanced 802.11ac Wi-Fi standard delivers incredibly fast data transfer speeds of up to 1,200 MB/s, which is 3 times faster than the previous 802.11n standard. Choose speeds of 300MB/s in the 2.4GHz band for web surfing, email and social media, or 867MB/s in the 5GHz band for bandwidth-intensive tasks like streaming in HD quality or playing PC games. Four external antennas with 5 dBi gain and MU-MIMO technology support provide users with greater wireless coverage throughout your home or office. Combined with Beamforming, the AC10 can detect the location of your connected devices and focus the wireless signal strength towards them, making your connection more stable.

Features:

- Modes: AP, LAN/WAN router, Wi-Fi router, bridge, repeater
- CPU: Realtek RTL8197F
- Architecture: 24Kc MIPS core
- Number of cores and CPU frequency: 2x 1 GHz
- RAM: 128 MB
- Supported partition formats: NTFS, exFAT, HFS+, FAT32
- FLASH memory: 32 MB
- I-Cache / D-Cache: 64 / 32KB
- Antenna: 4x omnidirectional 5dBi antenna
- Interface: 1x WAN Port 10/100 MB/s, 2x LAN Port 10/100 MB/s
- Default IP address: 192.168.1.1
- Default username/password: admin / admin
- Operating system: OpenWRT (Linux)
- System Requirements:Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7/8 / 8.1 / 10, Mac OS, NetWare, UNIX, Linux
- Browser Requirements:Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
- Required modem: cable (coaxial) or DSL modem
- WAN Types Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- DHCP: server, list of DHCP clients
- Dynamic DNS: DynDNS, NO-IP, TP-Link Guest Network
- NAT: Port Forwarding, Port triggering, UPnP, DMZ, ALG
- Wi-Fi bands: 2.4 GHz / 5 GHz
- Wi-Fi standards: IEEE 802.11a (Wi-Fi 1), 802.11b (Wi-Fi 2), 802.11g (Wi-Fi 3), 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5 )
- CE transmit power: <20dBm (2.4 GHz), <23dBm (5.15 GHz to 5.25 GHz)
- Transfer speeds for WLAN (Wifi): 300 (2.4GHz) + 864 MB/s (5GHz)
- IPv6 support: yes
- Encryption: WEP, WPA, WPA2, WPA / WPA2-Enterprise (802.1x)
- Network security: SPI Firewall, Access Control, IP and MAC Binding, Application Layer Gateway
- VPN server: OpenVPN, PPTP
- Wireless functions: enable/disable wireless radio, WMM
- External power supply: 9 V / 0.85 A
- Operating temperature: 0 to 40°C
- Operating humidity: 10 to 90% non-condensing
- Storage humidity: 5 to 90% non-condensing
- Colour: white
- Product weight: 140 g
- Product dimensions (W x H x D): 11.4 x 2.6 x 9.4 cm
- Package weight: 380 g
- Package dimensions (W x H x D): 16.7 x 6.5 x 22.7 cm
