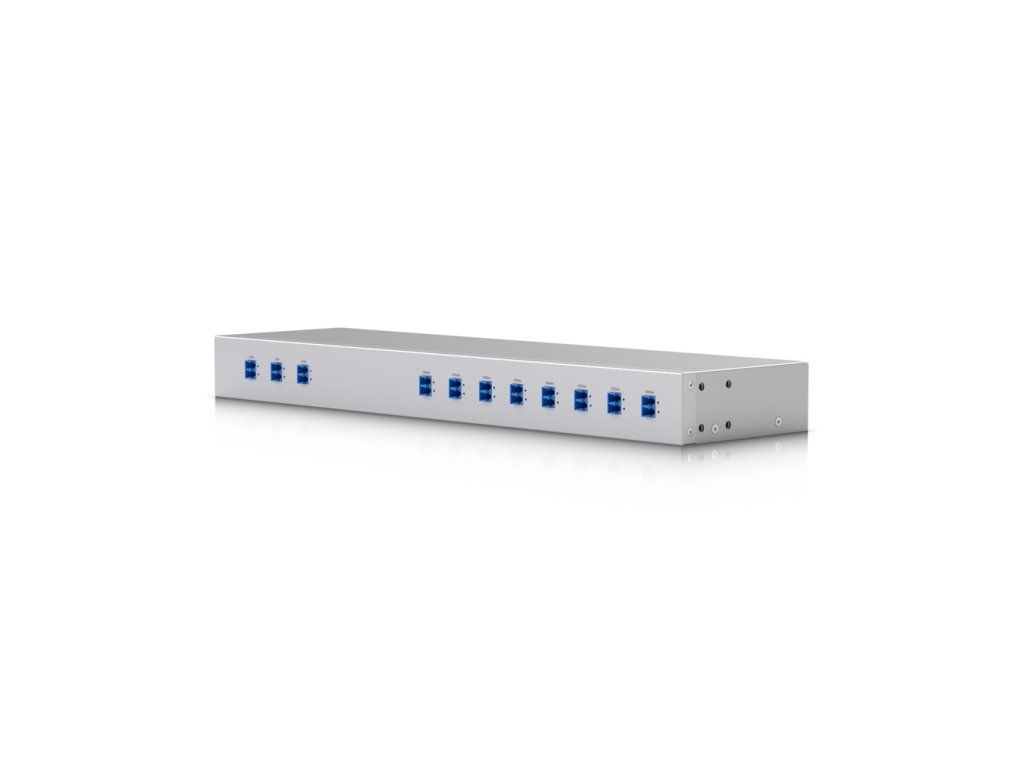

Ubiquiti UACC-CWDM-8 - 8 channel CWDM Mux/Demux module

Product detailed description

an 8-channel CWDM Mux/Demux (1450 to 1590 nm) designed to increase the capacity of existing optical infrastructure, with rack-mount capability. Key Features: - 8 channels with a wavelength range of 1450-1590 nm - Compatible with SMF-28e fiber - Duplex LC UPC connector for interconnection with other Mux/Demux equipment - Monitoring port for easy performance monitoring and spectrum analysis - Expansion port for interfacing with CWDM Mux Demux 4 to add additional channels - High isolation between channels ensures reliable operation - Allows power transfer up to 500 mW - Durable metal housing for rack mounting Compatible with USW-Aggregation and USW-Pro-Aggregation switches. Technical parameters Physical characteristics Design: rackmount Use: Indoor Material: Steel Weight [g]: 1400 Width [mm]: 442 Height [mm]: 44 Depth [mm]: 120 Ports: 8× LC/UPC (1450-1590 nm), 1× LC/UPC communication port, 1× LC/UPC monitoring port, 1× LC/UPC expansion port Fiber: SMF-28e, length 0.5-1 m Medium wavelength channel: 1450/1470/1490/1510/1530/1550/1570/1590 nm Min. channel passband: ± 6.5 nm Isolation: adjacent channel max. 30 dB, non-adjacent channel min. 40 dB Max. passband ripple: 0.3 dB Min. directivity: 55 dB Max. insertion loss: <2.5 dB Min. return loss: 50 dB Max. power: 500 mW Operating temperature: -30 to +75 °C
