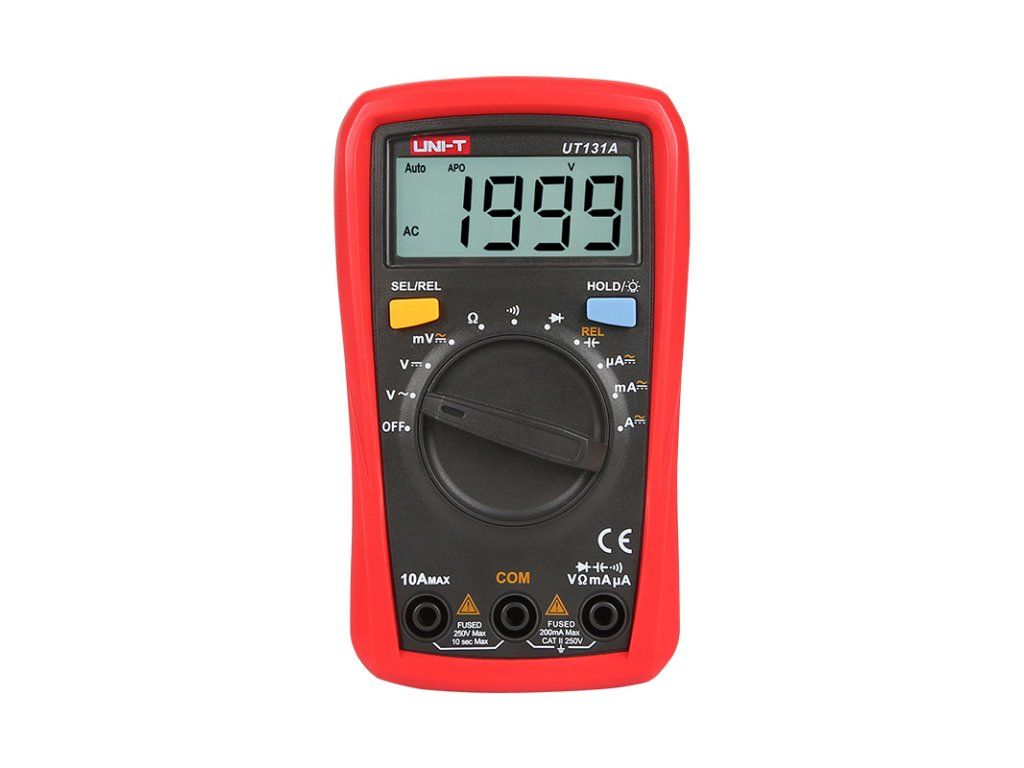

UNI-T UT131A multimeter

Product detailed description

UT131A with capacitor capacitance measurement and automatic ranging The new generation of UT131 series multimeters offers a higher standard of measurement in the more affordable category of digital multimeters. The innovative and industrial design ensures the multimeter is shock and drop resistant from up to two meters. The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option. The UT131 series multimeters guarantee safe handling and measurement according to CAT II standard. Multimeter functions: AC voltage measurement (AC) - 200 mV / 250 V AC current measurement (AC) - 200.0 µA / 10.00 A DC voltage measurement (DC) - 200 mV / 250 V DC current measurement (DC) - 200.0 µA / 10.00 A Resistance measurement - 200.0 ? / 200.0 M? Capacitor capacitance measurement - 2.000 nF / 2.000 mF Line continuity test (buzzer) Diode test Automatic range selection Reverse polarity detection Data hold function Backlit display Automatic shutdown after 15 min. of inactivity Measurement cables included Low battery indication Overload protection, fuse protection Technical parameters: AC voltage measurement (range, resolution, accuracy): 200.0 mV / 0.1 mV / ± 1.0% + 2 2.000 V / 0.001 V / ± 0.7 % + 3 20.00 V / 0.01 V / ± 1.0 % + 2 200.00 V / 0.1 V / ± 1.2 % + 3 250 V / 1 V / ± 1.2 % + 3 AC current measurement (range, resolution, accuracy): 200.0 µA / 0.1 µA / ± 1.2% + 3 2000 µA / 1 µA / ±1.2 % + 3 20.00 mA / 0.01 mA / ±1.2 % + 3 200.0 mA / 0.1 mA / ±1.2 % + 3 2.000 A / 0.001 A / ± 1.5 % + 5 10.00 A / 0.01 A / ± 1.5 % + 5 DC voltage measurement (range, resolution, accuracy): 200 mV / 0.1 mV / ± 0.7% + 3 2000 mV / 1 mV / ± 0.5 % + 2 20.00 V / 0.01 V / ± 0.7 % + 3 200.0 V / 0.1 V / ± 0.7 % + 3 250 V / 1 V / ± 0.7 % + 3 DC current measurement (range, resolution, accuracy): 200.0 µA / 0.1 µA / ± 1.0% + 2 2000 µA / 1 µA / ± 1.0 % + 2 20.00 mA / 0.01 mA / ± 1.0 % + 2 200.0 mA / 0.1 mA / ± 1.0 % + 2 2.000 A / 0.001 A / ± 1.2 % + 5 10.00 A / 0.01 A / ± 1.2 % + 5 Resistance measurement (range, resolution, accuracy): 200.0 Ohm / 0.1 Ohm / ± 1.0% + 2 2000 Ohm / 1 Ohm / ± 0.8 % + 2 20.00 kOhm / 0.01 kOhm / ± 0.8 % + 2 200.0 kOhm / 0.1 kOhm / ± 0.8 % + 2 20.00 MOhm / 0.01 MOhm / ±1.2 % + 3 200.0 MOhm / 0.1 MOhm / ± 5.0 % + 10 Capacitor capacitance measurement (range, resolution, accuracy): 2.000 nF / 0.001 nF / in REL mode ± 5% + 5 20.00 nF / 0.01 nF / ± 4 % + 8 200.0 nF / 0.1 nF / ± 4 % + 8 2.000 µF / 0.001 µF / ± 4 % + 8 20.00 µF / 0.01 µF / ± 4 % + 8 200.0 µF / 0.1 µF / ± 4 % + 8 2000 µF / 0.001 µF / ± 10 % The instrument complies with IEC 61010-1, IEC 61010-2-030, CAT II standards Dimensions (mm) : 134 x 77 x 47 Power supply : 2 x AAA 1.5 V batteries (included) Weight : approx. 206 g (including batteries) Operating temperature : 0 - 40°C
