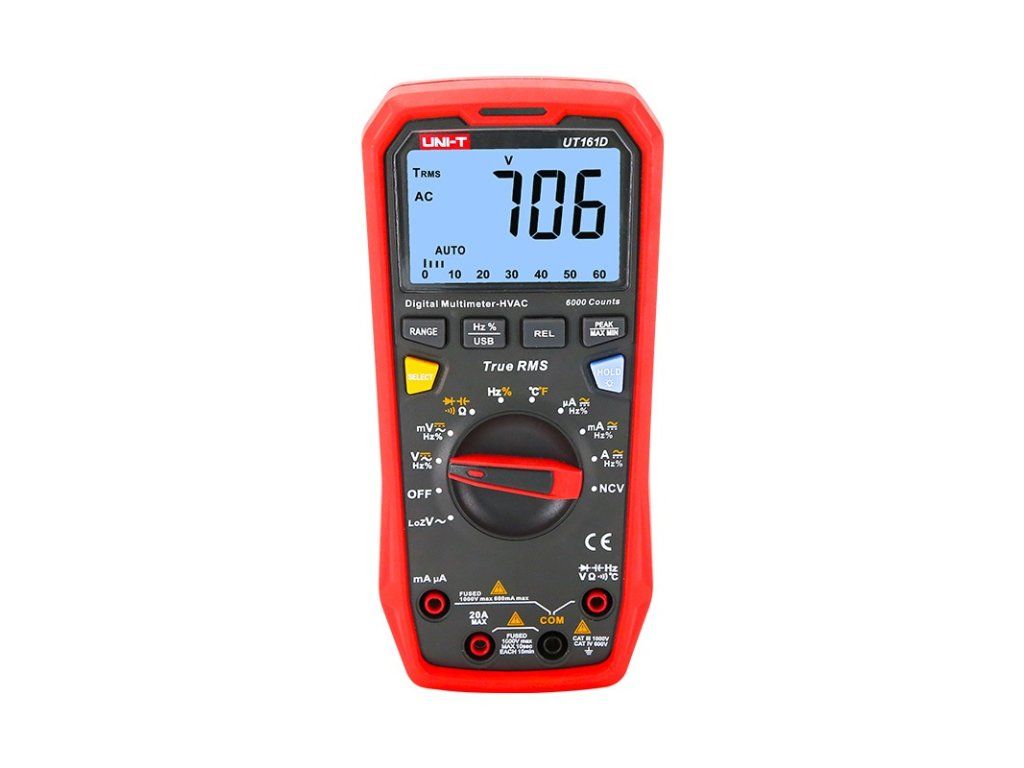

UNI-T UT161D multimeter

Product detailed description

This product comes with a 3-year warranty. The UT161 series is a range of highly reliable, safe, durable and accurate multimeters that are CE certified and suitable for the European market. The displays of these multimeters are backlit LCD (dark readings on a light background) with a digit count of ±6000 (for UT161B and UT161D) and ±22000 for UT161E. The displays have a refresh rate of 2 - 3 times per second, and also include an analogue column with 31 segments (UT161B and UT161D) or 41 segments (UT161E). The multimeters measure AC and DC voltages up to 1000V and are equipped with audible and visual warnings when maximum voltage/current or temperature values are reached. Allows non-contact detection of conductors with AC voltage. A USB cable with optocoupler for data transfer to PC is included. Power is supplied by four AAA micro-rechargeable batteries (R03) and the instrument switches off automatically after 15 minutes of inactivity (function can be temporarily disabled). The protection of the current inputs is made by tube fuses, which can be tested with this instrument without opening. UT161D True RMS 1000 V Digital Multimeter. Product parameters: - fully compliant with IEC/EN61010-1, and double insulated - categorised as CAT III 1000V - indoor electrical. installation including three-phase distribution - cAT IV 600V - outdoor electrical installations installation ( circuit breakers, start of indoor installation ) - LCD display type HTN with maximum display ±6000 - refresh rate for most measurements 3x per second - range setting automatic or manual - automatic polarity indication - aC voltage (AC) measurement ranges : 60 mV / 1000 V - aC current (AC) measurement ranges : 600 µA / 20 A - dC voltage (DC) measuring ranges : 60 mV / 1000 V - dC current (DC) measuring ranges : 600 µA / 20 A - loZ V~ measurement function with low input impedance (approx. 2k?) of the instrument - resistor resistance measuring ranges : 600 ? / 60 M? - capacitor capacitance measuring ranges : 60 nF / 66mF - frequency measuring range : 10 Hz / 10.00 MHz - measuring range duty cycle : 0.1% to 99.9% - temperature measurement range -40 °C to 1000 °C (-40 °F to 1832 °F), with thermocouple supplied up to 230 °C (446 °F) - measurement of silicon diode transitions - conductor continuity measurements - nCV non-contact voltage detection - high accuracy - TRMS, measurement of rms values of AC voltages and currents - relative measurement mode - mAX/MIN mode - overrange warning: OL - USB cable for transferring measured values to PC - input overload protection for voltages greater than 1000V - µA and mA current input protection with FF600 mA H 1000 V fast fuse, o6 x 32mm CE - protection of the current input 10A with fast fuse FF11A / 1000V o10 x 38mm CE - input impedance on mV range approx. 1G?, on other voltage ranges 10M?, - test diodes and semiconductor junctions at 0 to 3V, test current 1.2mA - power supply 4 pcs AAA batteries R03 1,5V - low battery indication - automatic shutdown after 15 minutes ( sleep when idle ) - optional accessory Bluetooth adapter for data transfer to PC - measurements in an elmag. field of 1V/m with an additional 5% error are possible General specifications: - operating temperature: 0 °C - 40 °C (32 °F - 104 °F) - relative humidity: ?75% at 0 °C - 30 °C; ? 50% at 30 °C - 40 °C - storage temperature: -10 °C - 50 °C (14 °F - 122 °F) - operating altitude: ?2000 m - electromagnetic compatibility: conforms to EN61326-1: 2006 and EN61326-2-2: 2006 - dimensions: 186 mm × 89 mm × 49 mm - weight: 400 g - the device complies with the standards: cETLus, CAT III 1000V, CAT IV 600V, double insulation, overload protection for voltages greater than 1000V EN 61326-1:2013; EN 61326-2-2:2013 EN 61010-1:2010; EN 61010-2-030:2010; EN 61010-2-033:2012 Conforms to UL STD.: 61010-1, 61010-2-030 Certified to CSA STD. C22.2 Nos. 61010-1, 61010-2-030, 61010-2-033 Package Contents: - uT161D multimeter with storage case - gold-plated CAT III 1000V / CAT IV 600V measuring cables - socket adapter for thermocouple connection - k-type thermocouple - USB cable for data transfer to PC - fuse F1: 6 x 32mm FF 600mA H 1000V (o6 x 32mm) CE - in the instrument - fuse F2: 6 x 25 mm FF 11A H 1000 V (o10 x 38mm) CE - in the instrument - 4 AAA batteries, R03 1,5V - czech, Slovak, English manual
