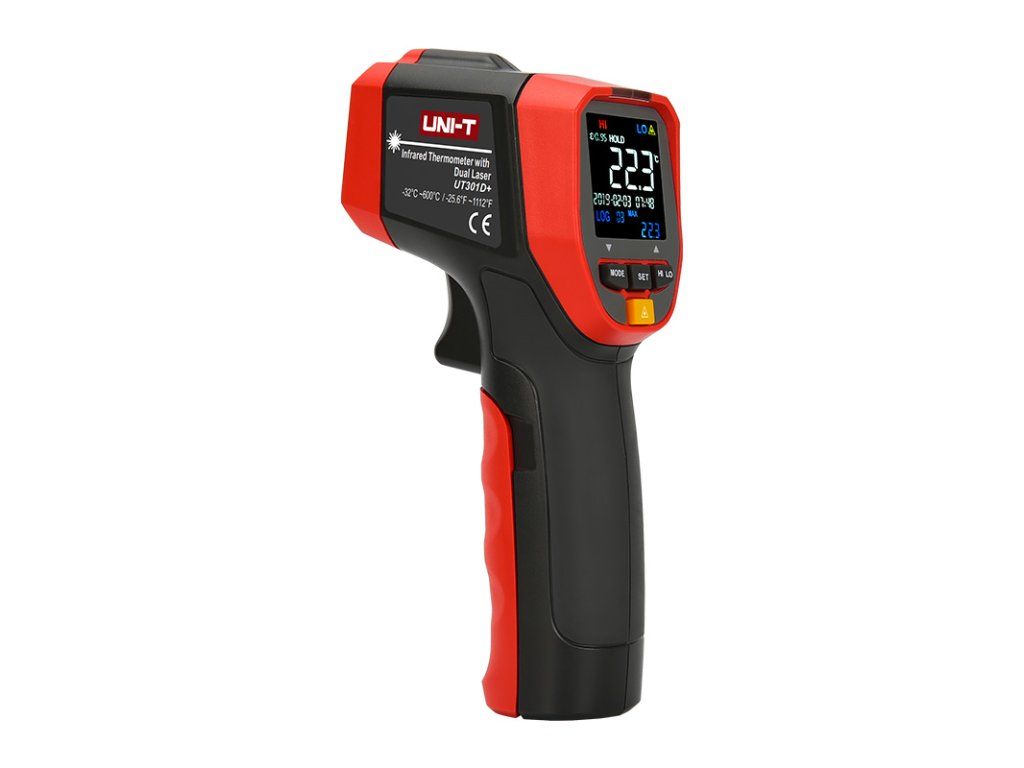

UNI-T UT301D+ non-contact thermometer

Product detailed description

This product comes with a 3-year warranty. The UT301D+ non-contact thermometer is a durable and easy-to-use infrared thermometer with high accuracy/energy (95%) /repeatability. It has an adjustable visual/audible high and low temperature alarm that responds faster than 250ms to help you detect anomalies quickly. You can preset and save 5 sets of emissivity values and quickly switch emissivity by different surfaces to get more accurate results. With lock measurement, MAX/MIN/AVG/DIFF hold and tripod mounting, the UT301D+ is ideal for processes that require temperature monitoring. The UT301D+ can be used for power distribution/transportation control, HVAC/equipment maintenance, vehicle troubleshooting and other applications. EBTN color backlit display. Can be mounted on a tripod with standardized threaded hole. Product Parameters : - measured temperature range: -32 to 600 °C - units of measurement: °C/°F - measurement distance to measurement area diameter ratio 12 : 1 - presettable surface emissivity: 0.1 to 1.0 - large EBTN 30 x 30 mm multi-line LCD display - dual laser - records 99 temperature measurement groups - date and time display - user-defined visual and audible alarm - not for medical purposes Dual Laser Principle: the thermometer uses two laser lines that converge at the point where the thermometer measures temperature. The lasers intersect at the exact point of measurement, allowing precise targeting. Advantages: the dual laser helps in targeting a specific point, which is useful for measuring smaller or more distant areas. Use: suitable for applications where high precision is required and where the area to be measured is smaller (e.g. industrial inspection or measurement of small components). Technical parameters : - laser power: <1mW (class 2) - display size: 30 x 30 mm - temperature range: -32 °C to 600 °C (-25.6 °F to 1112 °F) - d to S ratio: 12 : 1 (95%) - emissivity: 0.1 to 1.0 (adjustable, stores 5 sets of preset values) - response time: ? 250 ms (95% of measurements) - spectral response: 8 µm - 14 µm - accuracy >0°C: ± 1.5°C or ± 1.5% - accuracy greater than or equal to 0°C: ± (1.5°C°C + 0.1°C /°C) - accuracy >32°F: ± 3.0°F or ± 1.5% - accuracy greater than or equal to 32°F: ± (3.0°F + 0.1°F /°F ) - measurement repeatability: 0.7°C or 0.7% (1.5°F or 0.7%) - data storage (Hold): yes - data storage: yes 99 groups - scheduled measurements: yes - automatic shutdown: yes - low battery indication: yes - lED alarm: yes for high/low temperature - audible warning: yes for high/low temperature - tripod mounting hole: yes - measurement modes: MAX / MIN / AVG / DIFF / Hold - operating temperature: 0°C to 50°C (32°F to 122°F) - storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) - operating Humidity: <90% RH (non-condensing) - drop test: 1 m - power supply: 9V battery - product colour: red and grey - product net weight: 204 g - product dimensions (HxWxD): 160 mm x 74 mm x 48 mm Contents of standard individual packaging : - box - uNI-T UT301D+ thermometer - carrying bag - 9V battery - operating instructions
