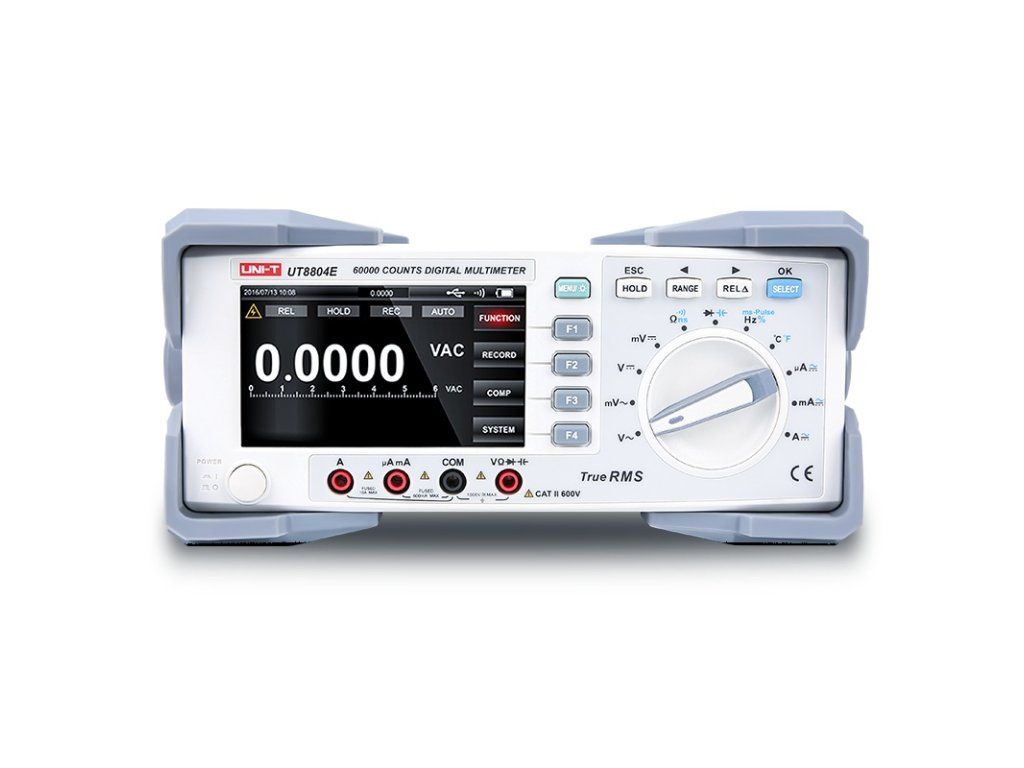

UNI-T UT8804E Benchtop Multimeter

Product detailed description

The UT8804E is a desktop digital multimeter with a maximum display value of 60000 with automatic or optional manual range adjustment, color display and true RMS measurement function. Its circuit design utilizes large scale (LSI) analog-to-digital (A/D) converters, a microprocessor, multi-function measurement and highly stable thin film resistor technology, making it a digital multimeter with superior performance. The meter can be used to measure AC/DC voltage, AC/DC current, resistance, conductivity, diodes, line continuity, capacitance, temperature, frequency, pulse width, etc. In addition, it also has data storage function, maximum/minimum/mean value measurement, comparison function, relative value measurement, peak detection, trend graph capture and the ability to record/read up to 20,000 data records. The integrated 4.3 inch color display provides a multi-level, versatile and clear display of measurement results with graphs of readings and trend graphs. TECHNICAL SPECIFICATIONS: - DC voltage: 60mV / 600mV / 6V / 60V / 600V / 1000V - Accuracy: ± (0.3%+40) - AC Voltage: 60mV / 600mV / 6V / 60V / 600V / 750V - Accuracy: ± (0.025%+5) - DC Current: 600µA / 6mA / 60mA / 600mA / 20A - Accuracy: ± (0.6%+40) - AC Current: 600µA / 6mA / 60mA / 600mA / 20A - Accuracy: ± (0.08%+20) - Resistance: 600Ohm / 6kOhm / 60kOhm / 600kOhm / 6MOhm / 60MOhm - Accuracy: ± (0.05%+10) - Capacitance: 6mF / 60nF / 600nF / 6µF / 60µF / 600µF / 6mF / 60mF - Accuracy: ± (2%+5) - Conductivity: 60nS - Accuracy: ± (2%+10) - Duty cycle: 10% - 90% (10Hz-2kHz) / 0.01 / ±(1.2%+30) - Pulse Width: 250ms / 0.001ms - 0.01ms / ±(1.2%+30) - ACR: 60Ohm / 600Ohm / 6kOhm / 60kOhm / 600kOhm / 6MOhm - Accuracy: ±(1%+5) - Frequency: 60Hz~60MHz - Accuracy: ± (0.1%+5) - Temperature: -40+1000°C ± (2%+2°C) / -10+1832°F - Maximum voltage between input terminal and COM terminal : 1000 V (DC/AC) - Input terminal protection 10A : (CE) F1, 11A H /1000 V, fuse O 10x38 mm - Input terminal protection µA, mA : (CE) F2, F600mA /1000 V, fuse O 6x32 mm - TFT 4.3" colour display : full icon display; maximum 60000 - Refresh rate : 2-3 times/s - Range selection : automatic/manual - Polarity display : automatic - Overload display : OL - Operating temperature : 0°C - 40°C (32°F - 104°F) - Storage temperature : -10°C - 50°C (14°F - 122°F) - Relative humidity : ?75% at 0°C - 30°C, ?50% at 30°C - 40°C - Temperature coefficient : 0.1x (specified accuracy)/°C (<18°C or ?28°C) - Electromagnetic compatibility : - RF =1V/m, total accuracy = specified accuracy + 5% of range - RF > 1V/m, no specified calculation - Power supply : AC 100V / 120V / 220V / 240V, 47 - 63Hz - Protective fuse used for 220 to 240V/AC supply voltage : T125mA/250V - Dimensions : 320mm x 265mm x 110mm - Safety standard : IEC 61010 : CAT II 600V PACKAGING CONTENTS: - Measuring instrument - Test cables - Power cable - PC software CD - Temperature probe
