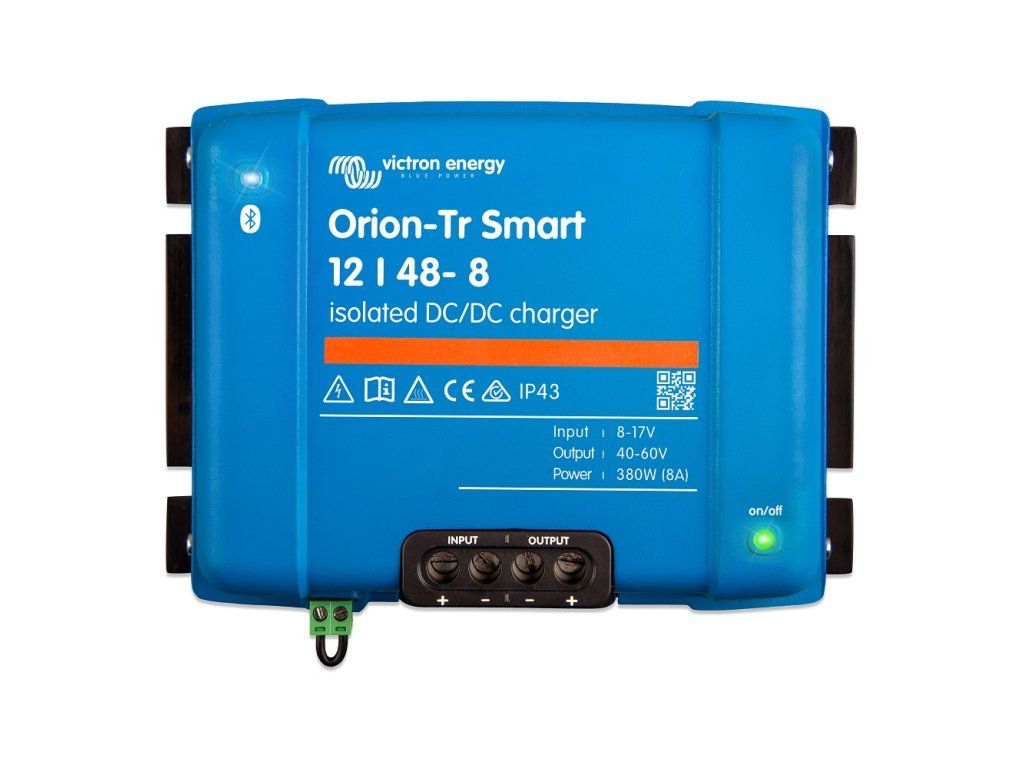

Victron Energy DC-DC charger Orion-Tr Smart 12/48-8A (380W) insulated

Product detailed description

The Orion-Tr Smart 12/48-8 is an advanced isolated DC-DC charger designed for charging 48V batteries from a 12V system. The charger features an adaptive three-stage charging algorithm, remote control, the ability to be used as a stabilized voltage source and battery protection features. It supports use in vehicles with Euro 5 and Euro 6 alternators, which often do not provide sufficient charging voltage. Built-in Bluetooth Smart allows easy configuration and monitoring using the VictronConnect app. Main features: - Bluetooth Smart: Monitoring, configuration and updates via the VictronConnect app. - Programmable output. - Three-stage adaptive charging algorithm. - Engine Run Detection: Automatically stops charging after engine shutdown to protect the starter battery. - Parallel operation option: Any number of units can be connected in parallel to increase performance. - Remote on/off: Using a switch or relay contact. - Protection: against short circuit, high temperature, overcurrent and undervoltage. - IP43 protection: when installed with downward facing terminals. Technical parameters: - Input voltage: 8-17 V DC - Output voltage: 48.2 V DC (adjustable 40-60 V) - Output current: 8 A (continuous at 40 °C) - Maximum output current (10 s): 15 A - Power: 360 W continuous (at 40 °C), 430 W (at 25 °C) - No-load current draw: < 220 mA - Standby current: < 1 mA - Efficiency: 89 % - Galvanic isolation: 200 V DC between input, output and housing - Operating temperature range: -20 °C to +55 °C - Weight: 1.8 kg - Dimensions (h x w x d): 130 x 186 x 80 mm - Protection: IP43 (electronics), IP22 (terminal block) - DC connection: screw terminals, max. cross section 16 mm2 - Compatible with VictronConnect (without VE.Direct) Victron Energy products are guaranteed by the manufacturer for 5 years. Product parameters: 12 V input voltage Output voltage 48 V Output current 8 A Type insulated
