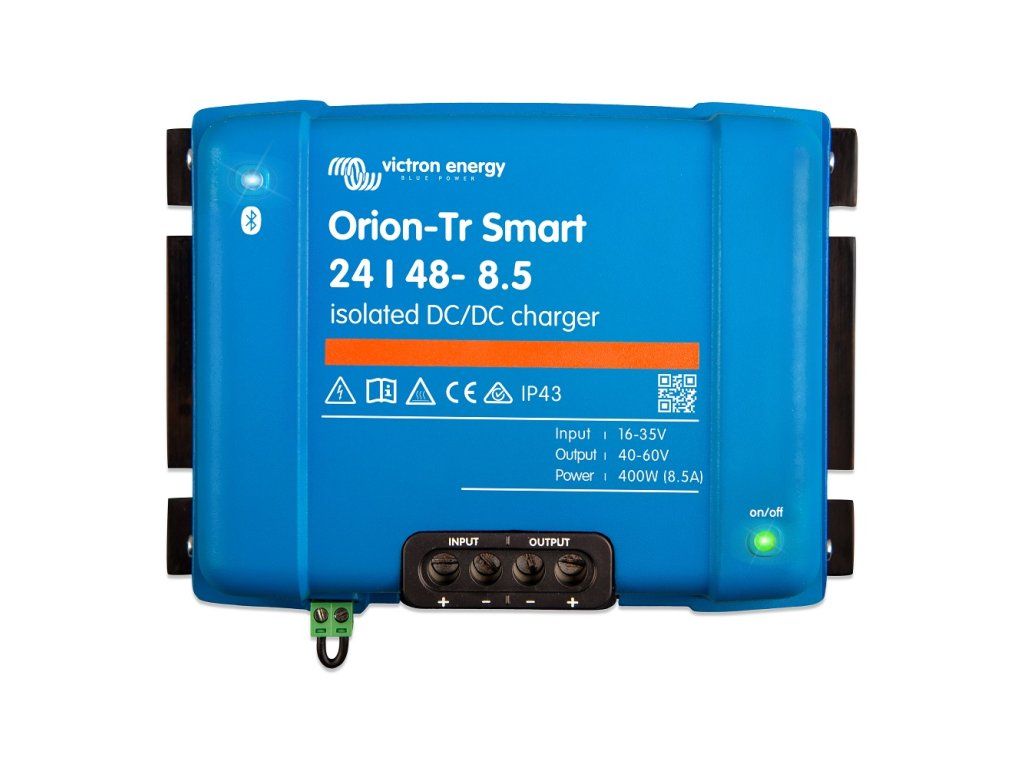

Victron Energy DC-DC charger Orion-Tr Smart 24/48-8.5A (400W) insulated

Product detailed description

The Victron Energy Orion-Tr Smart 24/48-8.5 is a high quality, isolated DC-DC charger designed for systems with 24 V input and 48 V output. The charger is fully programmable using the VictronConnect app, allowing purely individual setup to suit the needs of the installation. The device is ideal for use in vehicles with intelligent alternators (Euro 5/6), where it ensures a stable charge of the operating batteries without the risk of discharging the starter battery. Main features and functions: - Bluetooth Smart: Wireless monitoring and configuration with the VictronConnect app. - Adaptive three-stage charging algorithm. - Power supply function. - Suitable for smart alternators. - Parallel operation possible: An unlimited number of units can be connected for greater power output. - Protection against excessive temperature, short circuit and overvoltage. - IP43 protection. - Easy installation: screw terminals, no special tools required. - Remote on/off: Two-pole connector for external switch or relay. Specifications: - Model: Orion-Tr Smart 24/48-8,5 - Input Voltage: 16 - 35 V DC - Output voltage (nominal): 48.2 V - Output voltage adjustment range: 40 - 60 V - Continuous output current: 8.5 A (at 40 °C) - Maximum output current (10 s): 15 A - Short-circuit current: 25 A - Continuous power: 400 W (at 40 °C) - Efficiency: 89 % - Standby current: < 1 mA - No load: < 120 mA - Operating temperature: -20 °C to +55 °C - Protection: IP43 (electronics), IP22 (terminals) - Isolation: 200 VDC between input, output and enclosure - Dimensions (h × w × d): 130 × 186 × 70 mm - Weight: 1.6 kg - Connection type: screw terminals, max. cross section 16 mm2 Victron Energy products are guaranteed by the manufacturer for 5 years. Product parameters: Input voltage 24 V Output voltage 48 V Output current 8.5 A Type insulated
