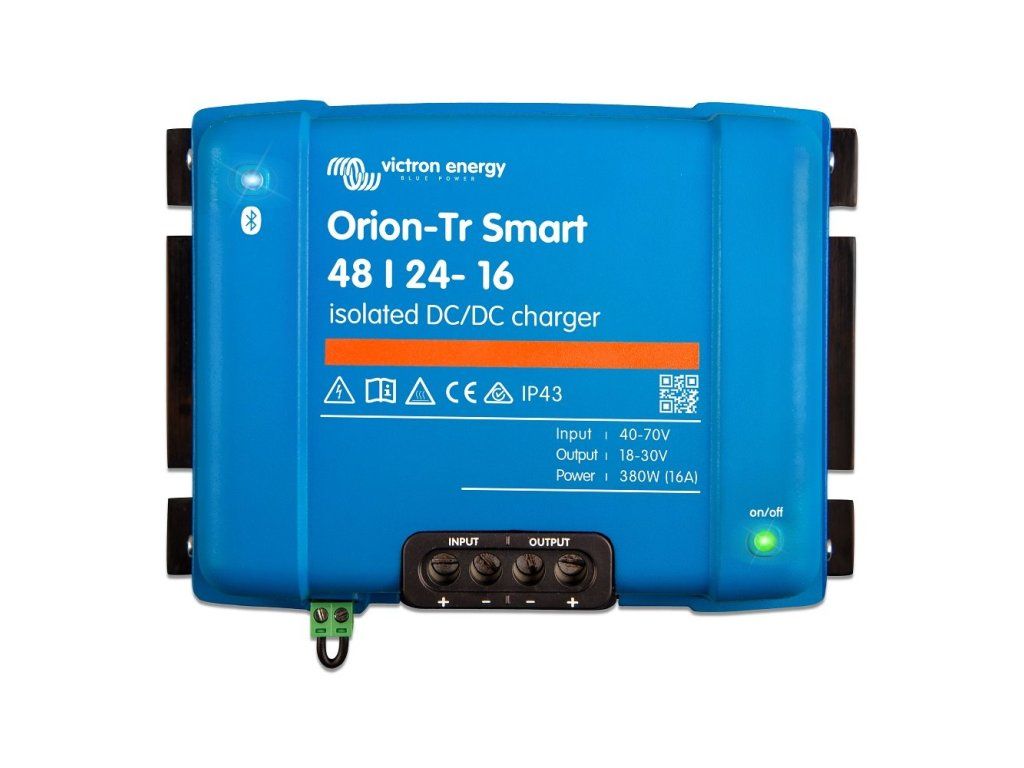

Victron Energy DC-DC charger Orion-Tr Smart 48/24-16A (380W) insulated

Product detailed description

The Victron Energy Orion-Tr Smart 48/24-16 is a professional isolated DC-DC charger designed for accurate and efficient charging using a three-stage adaptive algorithm. The charger is ideal for applications in vehicles and boats with a smart alternator (Euro 5/6) where stable voltage and protection of the starter battery is required. Thanks to galvanic isolation between input, output and housing, maximum installation safety is ensured. Main features and functions: - Built-in Bluetooth Smart: configuration, monitoring and updates via VictronConnect app. - Adaptive three-stage charging algorithm: fast, absorption and maintenance phases. - Fixed output voltage setting. - Compatible with vehicles with smart alternator (Euro 5/6). - Remote on/off via two-pole connector. - Parallel operation without limitation on the number of units. - Protection against short circuit, overheating and high temperature. - Protection IP43 (when installed with terminals down), IP22 (connection area). - Easy installation with screw terminals without special tools. Technical parameters: - Input voltage: 32-70 V DC - Output voltage: 24.2 V (adjustable 18-30 V) - Continuous output current: 16 A (at 40 °C) - Maximum output current (10 s): 25 A - Short circuit output current: 40 A - Continuous output at 40 °C: 380 W - Efficiency: 89 % - Standby current: < 1 mA - Load current on-load: < 80 mA - Galvanic isolation: 200 VDC between input, output and housing - Temperature operation: -20 °C to +55 °C - Humidity: max. 95% (non-condensing) - Dimensions (h x w x d): 130 x 186 x 70 mm - Weight: 1.6 kg - Protection: IP43 (electronic components), IP22 (connection area) Corresponding standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5 Product parameters: Input voltage 48 V Output voltage 24 V Output current 16 A Type insulated
