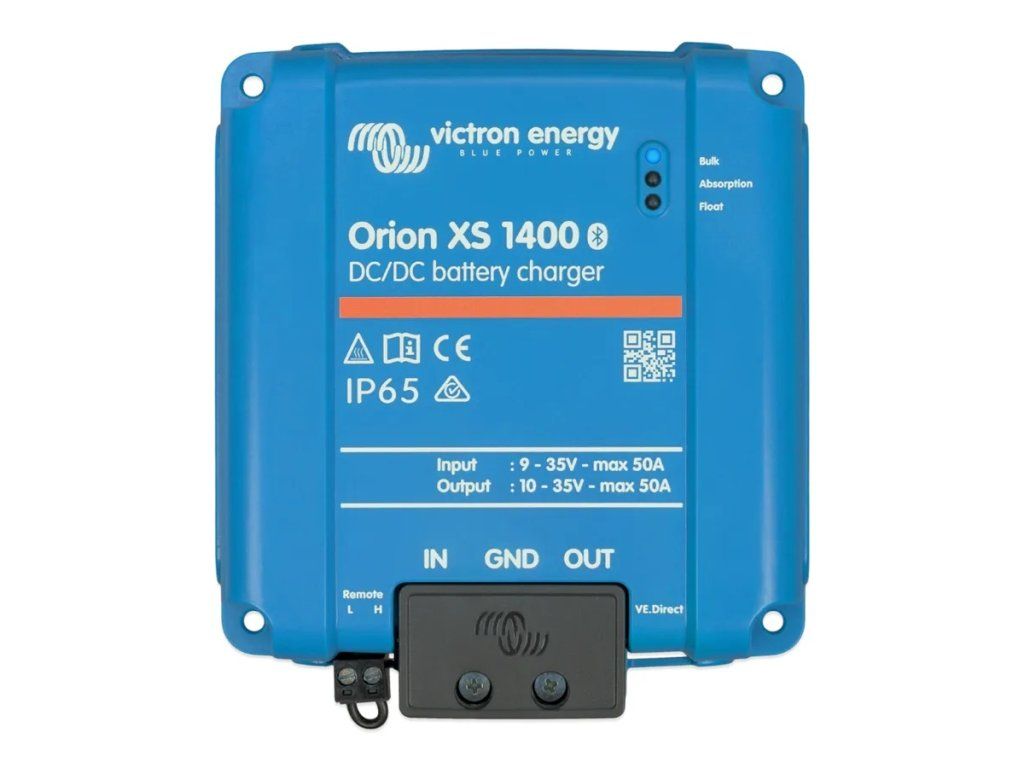

Victron Energy DC-DC charger Orion XS 1400 non-insulated

Product detailed description

The Victron Energy Orion XS 1400 is a high-performance DC-DC battery charger designed specifically for vehicles, boats and RVs equipped with Euro 5 and 6 smart alternators. It has adjustable input and output voltages and effectively addresses the problem of voltage drop caused by longer cables or low alternator charging voltage. Key features: - Adjustable input and output voltage of 12V or 24V - High power: Maximum continuous power output of 1400 W at temperatures up to 40 °C. - Adaptive 4-stage charging. - Bluetooth Smart: Integrated wireless control via the VictronConnect app makes it easy to monitor, change settings and update software directly from your smartphone or tablet. - VE.Smart Networking: wireless transmission of key data (Vsense, Tsense, Isense) to optimize charging parameters and extend battery life. - Full electronic protection. - Durable design. - Parallel connection. - Compact size and light weight. Configurable charging Easily and accurately set input and output current, which helps protect the alternator from overloading and properly charge the service battery, especially for smart alternators. Parallel wiring to increase output current An unlimited number of Smart BuckBoost devices can be connected in parallel. Easily adjust the output current to match the requirements of your system. Smart alternator compatibility With built-in engine shutdown detection, the Orion XS ensures that the charger only draws power when the engine is running. It also helps you get the correct charging current from the smart alternators found in Euro 5 and Euro 6 engines. Adaptive charging algorithm Smart BuckBoost includes customizable charging algorithms and 8 preset battery modes. For lead acid batteries, these settings ensure optimal absorption times for both shallow and deep discharge. Complete electronic protection Smart BuckBoost features comprehensive electronic protection against overload, short circuit and excessive temperatures. It will automatically reduce output power when the product reaches maximum temperature. Low temperature shutdown and undervoltage protection To prevent damage to lithium batteries, the charger automatically shuts down at low temperatures and when the input voltage drops below a user-adjustable value, protecting the starter battery from deep discharge. Dust and waterproof The Orion XS is designed to withstand dust and water contamination and is IP65 rated. Product parameters: - 9-35 V input voltage range - Output voltage range: 10-35 V - Maximum power: 1400 W (at 28 V and 50 A) - Maximum efficiency: 98.5% - No-load current consumption: <100 mA - Standby power consumption: <1.5 mA - Communication: Bluetooth Smart, VE.Smart Networking, VE.Direct - Operating temperature: -20 to +60 °C - Protection: IP65 (dustproof, resistant to heavy rain) - Dimensions: 138.1 × 124.4 × 53 mm - Weight: 0.52 kg
