Victron Energy GX Touch 50

Product detailed description

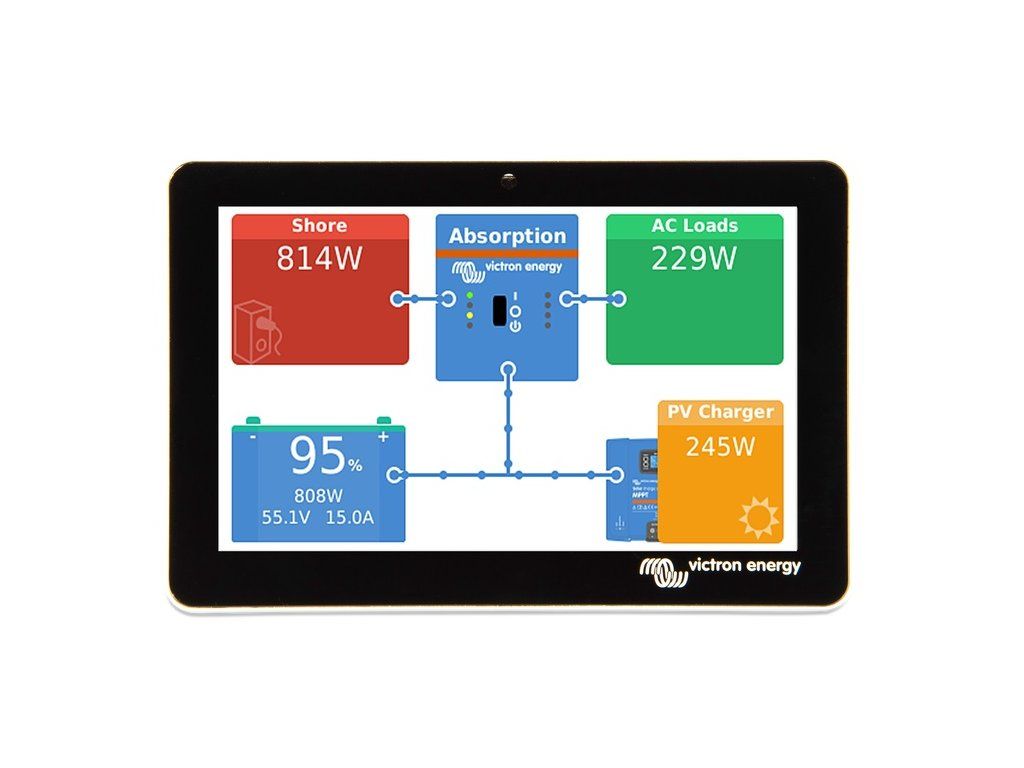

The GX Touch 50 is an accessory for the Cerbo GX. The five-inch touchscreen provides an instant overview of your system and allows you to quickly adjust settings. It is easily connected to the Cerbo GX with a single cable. Its ultra-thin waterproof design, set-up top and its easy installation bring great flexibility. Easy installation The GX Touch can be screwed directly onto the dashboard, so there is no need to cut a convenient hole (as was the case with the Color Control GX), plus the device connects with just one cable, meaning you no longer have to pull multiple cables to the dashboard. Perfect monitoring and control GX Touch 50 together with Cerbo GX - this brand new communication centre allows you to safely control your solar system from anywhere, maximising its performance. Simply connect via the Victron Remote Management (VRM) portal or gain direct access via the standalone GX Touch 50 display, MFD or the VictronConnect app via Bluetooth. This new addition to the GX Series combines all the best features of connectivity and presents intelligent power system solutions in a whole new light. Technical parameters Display: 4.3" touch screen Remote console: yes Bell (buzzer): yes Victron communication ports: VE. direct ports (always isolated): 3 VE. bus (always isolated): 2 parallel RJ45 sockets VE. Can: 2 parallel RJ45 sockets - isolated Communications: USB: 1 USB host port Ethernet: 1 isolation port WiFi: no, optional Bluetooth Smart: no Micro SD card slot: SDHC cards up to max. 32 GB Second CAN-bus port: yes - non-isolated BMS-Can port: no Built-in RS485: yes - non-isolated IO: Programmable relay: 1 x NO / NC Resistive tank level inputs: no Temperature sensing inputs: no Digital inputs: 3 Third party compatibility: Canbus-BMS Battery: Many battery brands. Details can be found here Fronius PV inverters: Details here SMA PV inverters: Details can be found here ABB PV inverters: Details can be found here SolarEdge PV inverters: Details here Power: CPU: single core RAM: 256MB Max. VE.Direct devices: 4 Other: 8 - 32 VDC Mounting: panel External dimensions (H x W x D): 87 x 128 x 12.4 mm Weight: 300g Operating temperature: -20 to +70°C 5V output: no
