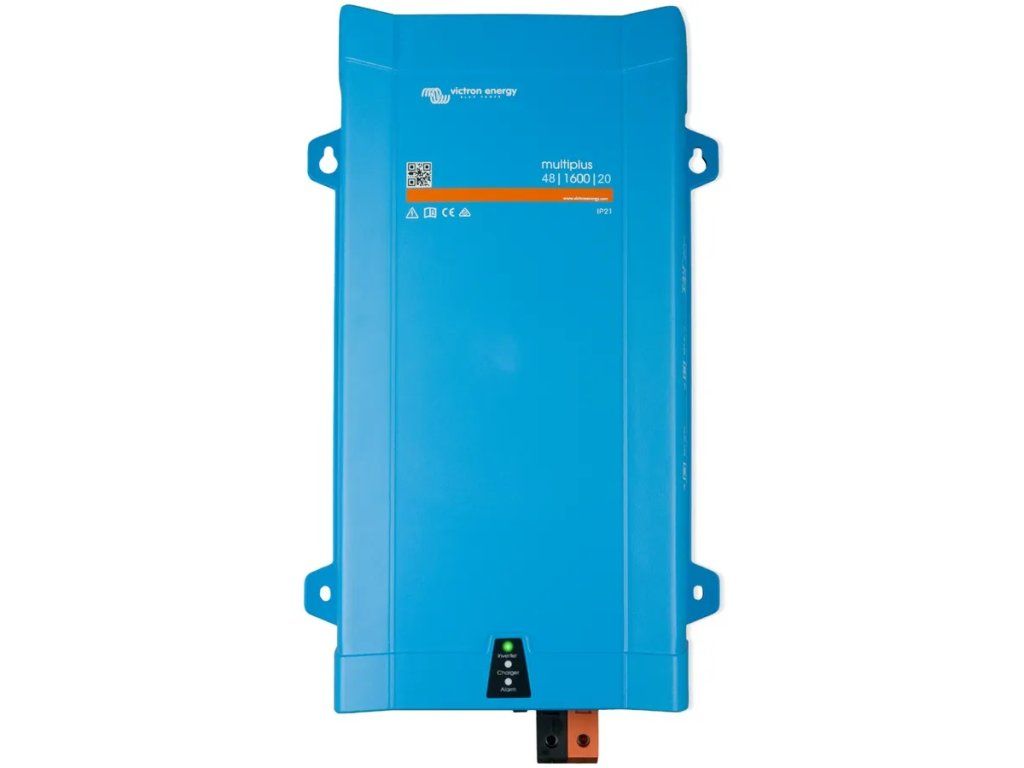

Victron Energy Multiplus 48V 1600VA 20A - 16A inverter / charger

Product detailed description

MultiPlus is a powerful sine wave voltage converter and sophisticated battery charger with adaptive charging technology and high-speed AC switch. Key Features: Parallel operation and three-phase operation Up to six MultiPlus units can operate in parallel for higher performance. In addition to the parallel connection, three units can be configured for three-phase output. PowerControl function Using the multi-function control panel, the maximum generator or shore connection current can be set to prevent overloading of AC sources. PowerAssist function This function takes the principle of PowerControl to the next level. It allows the MultiPlus to increase the power of the alternative power source that it is compensating from the battery. When the load is reduced, the reserve power is used to recharge the battery. Four-stage adaptive charger and dual battery charging The main output provides powerful charging of the battery system using an advanced "adaptive charging" system. The software fine-tunes the three-stage automatic process to suit the battery condition and adds a fourth stage for long float charging periods. In addition, MultiPlus will charge a second battery using an independent maintenance charge output designed for the main engine or generator starter battery (12 and 24V models only). High starting power Required for starting high starting loads such as power inverters for LED bulbs, halogen bulbs or power tools. "Search" mode When "Search" mode is switched on, the inverter's power consumption is reduced by approx. 70% in idle operation. In this mode, the MultiPlus will switch off in the event of no or very low load when operating in inverter mode and switch on every two seconds for a short period of time. If the output current exceeds the set level, the inverter will continue to operate, if not, it will switch off again. Programmable relay By default, the programmable relay is set as an alarm relay, that is, the relay will stop energizing in the event of an alarm or pre-alarm (inverter is overheated, input ripple is too high, battery voltage is too low, etc.). Remote charger on/off/on Three-pole connector. On-site system configuration, monitoring and control Once installed, MultiPlus is ready for use. Some settings can be changed using the DIP switches. 500/800/1200 VA models: remote switch / battery charging voltage / inverter frequency / "Search" mode. 1600/2000 VA models: battery charging voltage / "Search" mode. For more settings, use VE-Config or VE.Bus Smart dongle. Remote configuration and monitoring Install Cerbo GX or other GX device to connect to the internet. Operational data can be stored and displayed on the VRM (Victron Remote Management) website free of charge. Once connected to the Internet, systems can be accessed remotely and settings changed. Technical parameters: - output voltage: 230 VAC ± 2%, frequency: 50 Hz ± 0.1% - input voltage: 187-265 VAC, frequency: 45-65 Hz - continuous power at 25oC: 1600 VA / 1300 W - peak power: 2800 W - max. efficiency: 95% - self-consumption: max. 10 W - self-consumption in "Search" mode: 3 W - operating temperature range: -40 to +65 °C (with forced cooling fan option) - humidity (non-condensing): max. 95% - weight: 10.2 kg - size: 470 x 265 x 120 mm
