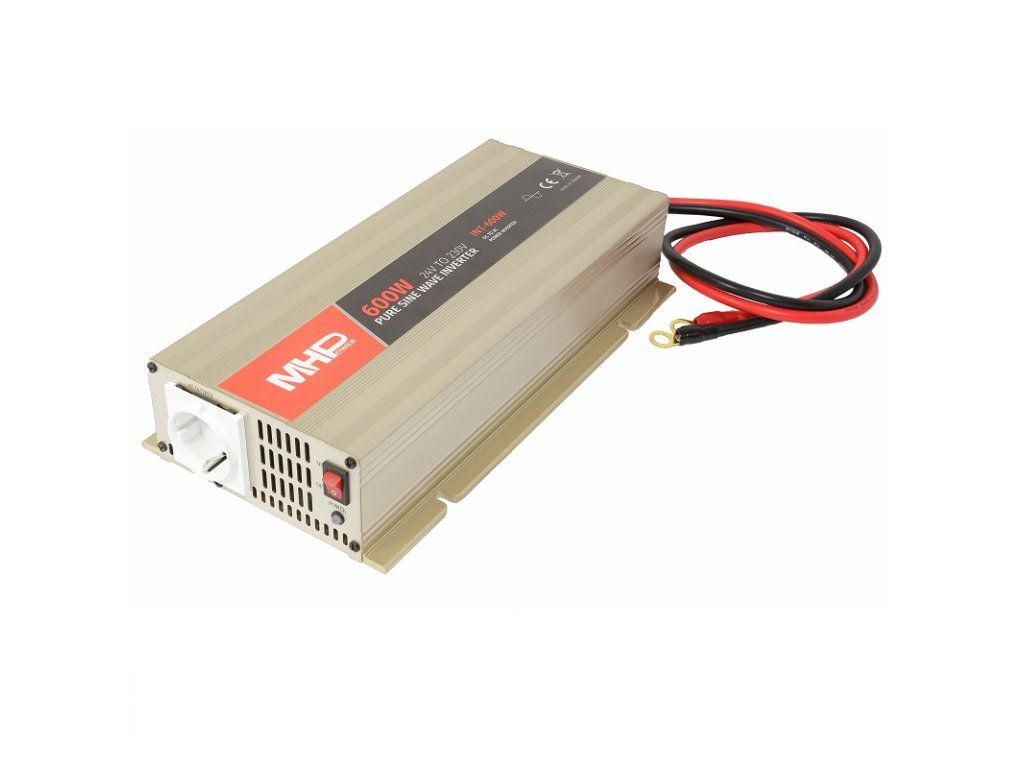

Voltage converter MHPower INT-600W, 600W, 24V/230V, pure sine

Product detailed description

High quality and highly reliable MHPower INT-600W voltage converter. Robust design, it is intended for professional applications. Inputs and outputs shielded by ferrite cores. Stabilized output voltage is independent of the input voltage. Output voltage has a pure sine wave output - it is possible to connect sensitive appliances that do not work with conventional inverters. A warning tone sounds when the battery voltage is reduced, and the inverter switches off when the voltage is reduced further. When the voltage increases, it switches itself on. There is therefore no risk of battery discharge. Possible applications: Operation of computers, radios, televisions, lamps, fans, hand-held power tools, pumps, drills, etc. In caravans and motor vehicles with 24V battery voltage. Features: High efficiency 85~90% On-Off switch Smooth start Green LED on front panel to confirm power on Red LED on front panel to indicate faulty condition The cooling fan in the inverter is thermally activated, it will automatically turn off if the inverter cools down. Technical Specifications: Input voltage: (DC) 20 - 32V Output voltage (AC): 230V with ±5% tolerance Continuous output power: 600W Peak output power: 1200W Output waveform: pure sine wave Output frequency: 50Hz Efficiency :85% Shutdown on voltage drop :20V ±1V Voltage rise shutdown : 31V ±1V Low battery voltage warning signal :21V ±1V Thermal protection : 60C ±10C The cooling fan in the inverter is thermally activated. Fuse : 25A 2pcs (inside the unit) Dimensions (LxWxD) 360 x 170 x 68 mm Net weight 3.0 kg Protection function: Overload protection Input polarity protection (fused) Low voltage: alarm and shutdown Overvoltage protection Temperature protection Short circuit protection Connectors, sockets: 1x Schuko socket 2x Connection cable built-in, length: 80cm 1x Main ON/OFF switch 1x Control LED Package contents: Voltage converter
