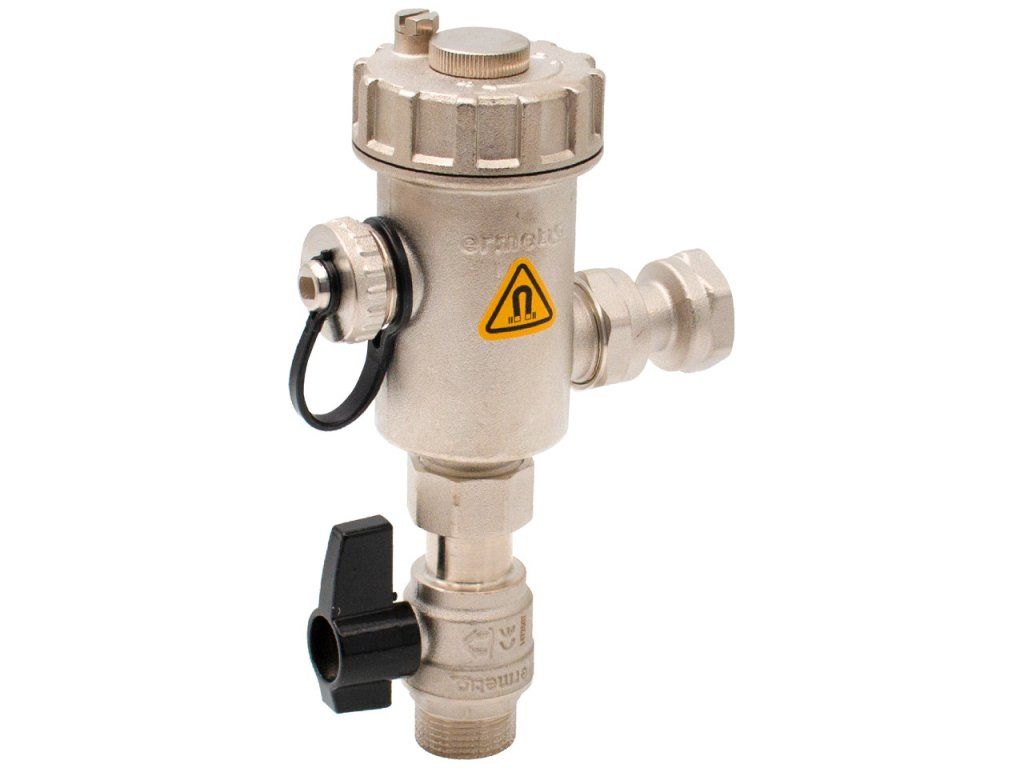

Water filter made of antimagnetic brass 3/4"

Product detailed description

Water filters are essential components in residential and commercial plumbing and heating systems. They protect sensitive equipment from damage caused by particulate matter in the water supply. This filter is commonly used in domestic hot and cold water systems, heating circuits and industrial water treatment applications. Installers often encounter situations where magnetic impurities could interfere with system components, making non-magnetic filters particularly valuable in such environments.

When selecting and sizing this filter, the 3/4 inch connection size is critical for compatibility with standard pipe fittings. The antimagnetic brass body ensures no magnetic particles are attracted to the filter housing, which is particularly important in systems where magnetic interference could affect other components. The mechanical strainer type is suitable for removing larger particulates but does not address dissolved contaminants.

Technical parameters

Body material	Antimagnetic brass
Connection	3/4 inch
Filtration type	Mechanical strainer
Manufacturer	Ermetiq
Code	ERM_EWF-AUC34

The 3/4 inch connection size is standard for many plumbing and heating applications, ensuring compatibility with common pipe diameters. The antimagnetic brass body is selected for its resistance to magnetic particle accumulation, which is important in systems where magnetic interference could affect other components. The mechanical strainer type is effective for removing particulate matter but does not address dissolved impurities.

Installation and connection

To install this filter, ensure the pipeline is depressurised and drained. Use appropriate sealing materials such as PTFE tape or gaskets to prevent leaks. The 3/4 inch connection requires standard pipe fittings. Verify that the filter is installed in the correct direction, with the strainer facing upstream to allow for proper debris capture. Common installation mistakes include incorrect orientation, which can reduce filtration efficiency, and insufficient sealing, which can lead to leaks and system contamination.

Compatibility and accessories

This filter is compatible with standard plumbing and heating systems that use 3/4 inch pipe connections. It is typically used in conjunction with pressure-reducing valves, flow meters and other filtration components. For complete system protection, additional filters or chemical treatment units may be required depending on the water quality. No specific accessories are required for this model, but appropriate sealing materials should be used during installation.

Technical background for designers

The filter operates by allowing water to pass through a mechanical strainer, which captures particulate matter such as sand, rust and scale. The antimagnetic brass body prevents the accumulation of magnetic particles, which can interfere with other system components. This material is chosen for its durability and resistance to corrosion. The filter should be integrated into the system at a point where particulate matter is most likely to be present, such as at the inlet of a pump or before sensitive equipment. The service life and efficiency of the filter depend on the frequency of maintenance and the quality of the water being filtered.

Service and operation

Regular inspection is recommended to ensure the filter is functioning correctly. Check for signs of clogging, which can reduce flow and increase pressure drop across the filter. Clean the strainer as needed to remove accumulated debris. No specific service intervals are provided, but maintenance should be performed based on the observed condition of the filter and the water quality. A significant pressure drop across the filter indicates the need for cleaning.

Frequently asked questions

Can this filter be used in a domestic hot water system?
Yes, it is suitable for both hot and cold water applications. The antimagnetic brass body is resistant to corrosion and can handle typical domestic water temperatures.

Is this filter compatible with magnetic flow meters?
Yes, the antimagnetic brass body prevents magnetic interference, making it suitable for use with magnetic flow meters and other sensitive equipment.

Can the filter be installed in a vertical pipeline?
Yes, it can be installed in either horizontal or vertical pipelines. Ensure the strainer is oriented correctly with the flow direction to maintain optimal performance.

Does the filter require a bypass for maintenance?
No bypass is required for this model. The filter can be isolated using standard shut-off valves during maintenance or cleaning.
