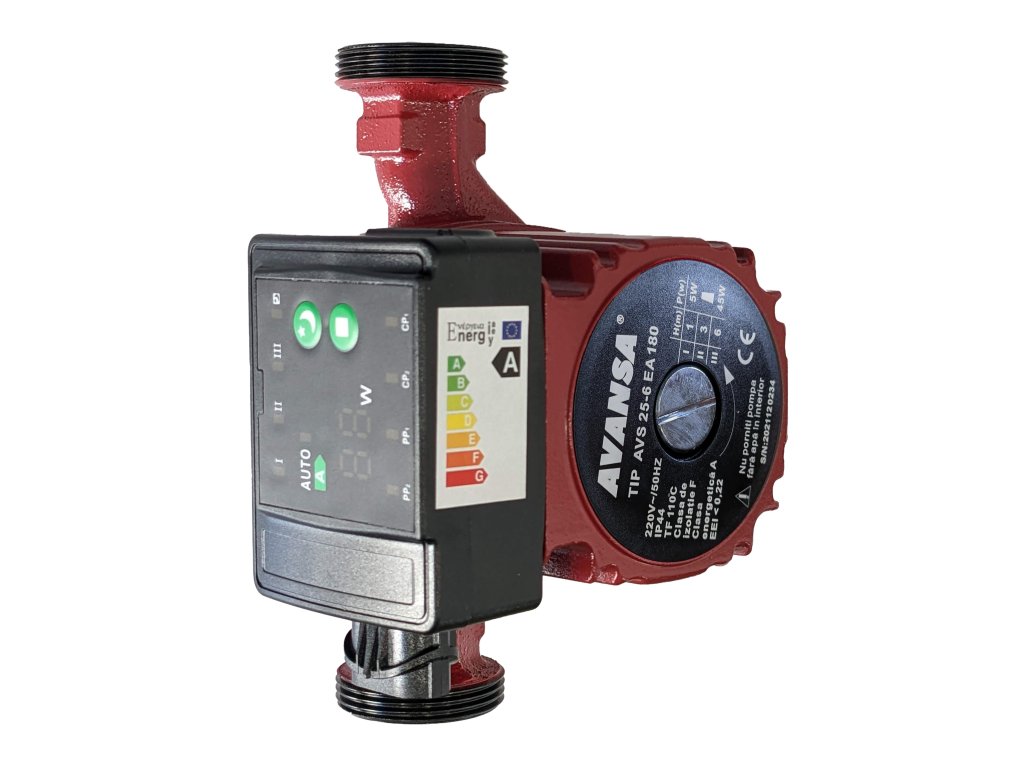

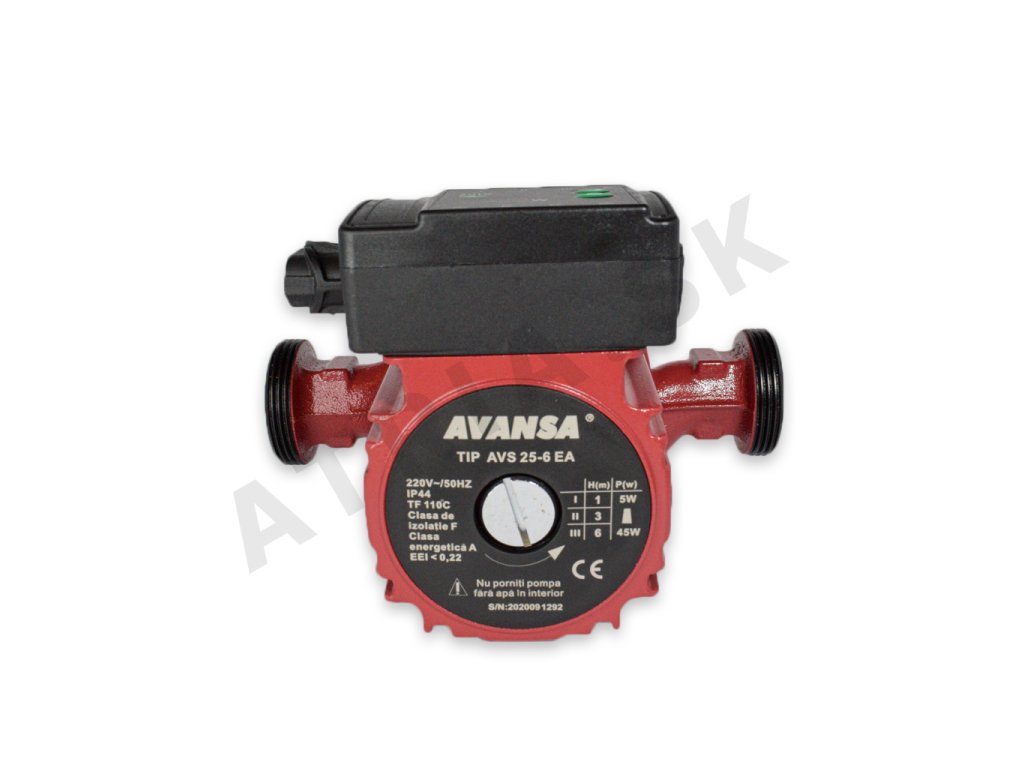

Electronic circulation pump AVANSA 25/6/180E

Application
Circulation of hot or cold water:
  • in heating systems
  • in hot water systems
  • in refrigeration and air-conditioning systems
Features and advantages
  • Low noise level
  • Low energy consumption
  • Wide range of applications
Basic parameters
  • Rated power input: 5/45
  • Pipe clearance: DN25
  • Connection Dimensions:6/4"
  • Pipe Width:25 mm
  • Qmax flow rate: 58 l/min
  • Hmax discharge: 6 m
  • Gross weight: 2.6 kg
  • Net weight: 2.4 kg
  • Fluid temperature: 10 - 110 °C
  • Max. 10 bar
  • Ambient temperature: 40 °C
  • Installed length: 180 mm
  • Energy class: A (Economic circulators)
Power
  • Power supply voltage: 1~230V
  • Frequency: 50/60 Hz
Materials
  • Pump body:Cast iron
  • Impeller:PPO
  • Motor Cover:Aluminum
  • Motor winding: Copper
  • Shaft: Ceramic
  • Bearing: Ceramic
Motor
  • Insulation Class:F - H
  • Protection Class:IP44
  • Setting options
  • 3-speed switching

Additional parameters

Category: Avansa
Warranty: 2 roky
Weight: 2.5 kg
Rozmer balenia (mm): 130/210/150
