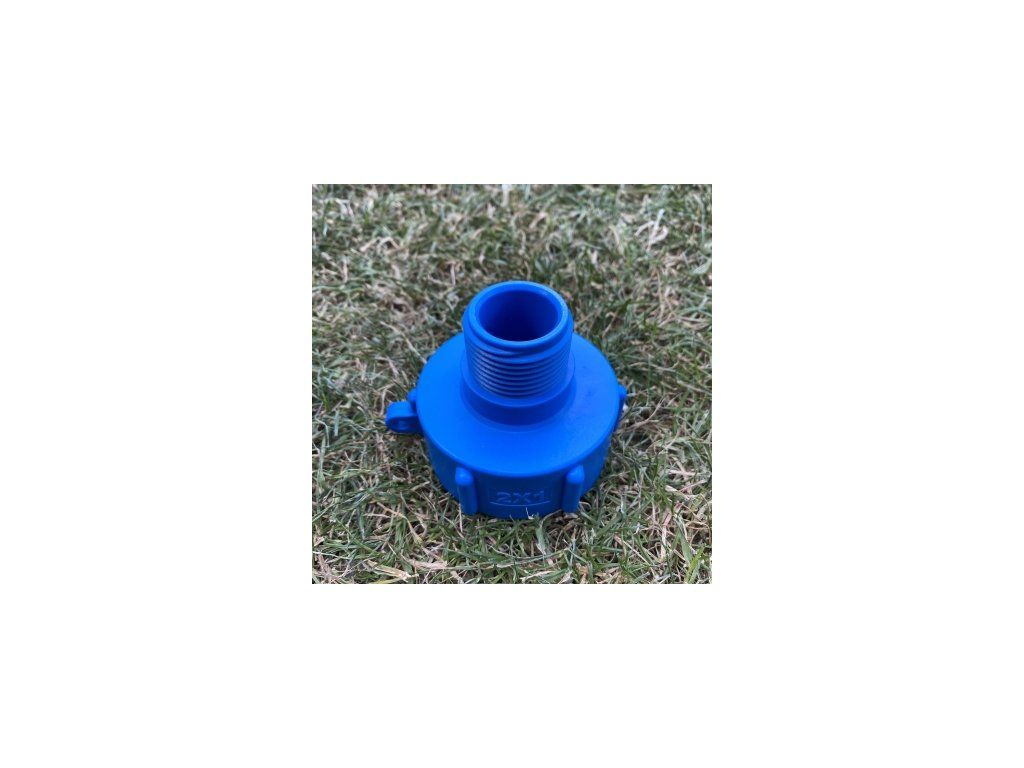

Bradas IBC adapter S60x6mm - 1" VOZ

Product detailed description

This adapter is used in garden irrigation systems where IBC ball valves are part of the design. It allows for the connection of standard 1 inch external thread fittings to the S60x6mm internal thread of IBC valves. This is particularly useful in systems where the valve is part of a larger network of sprinklers, filters, or control units. The adapter is typically installed during system assembly or retrofitting to ensure compatibility between components with differing thread types.

Installers working on irrigation systems often encounter the need to integrate valves with non-standard thread sizes into conventional piping. This adapter facilitates such integration without the need for additional conversion fittings. It is suitable for both new installations and modifications where the existing valve thread does not match the rest of the system.

Technical parameters

Installation and connection

Installation begins by aligning the S60x6mm internal thread with the corresponding valve. The adapter is then tightened by hand to ensure a secure fit before using a wrench for final tightening. The 1 inch external thread is then connected to the next component in the system, such as a pipe, filter, or sprinkler head. It is important to check that the threads are clean and free from debris before tightening to prevent cross-threading. A common mistake is over-tightening, which can damage the threads or cause leaks. Installers should also verify that the adapter is compatible with the system pressure and flow requirements.

Compatibility and accessories

This adapter is specifically designed to connect with IBC ball valves that have an S60x6mm internal thread. It is also compatible with standard 1 inch external thread fittings used in irrigation systems. When installing, it may be necessary to order additional fittings or valves to complete the system. No related products are available for this model.

Technical background for designers

The adapter functions as a mechanical interface between two different thread standards. It is typically made from durable materials suitable for outdoor irrigation environments. The internal thread ensures a secure connection to the IBC valve, while the external thread provides a standard interface for other system components. The design allows for minimal pressure drop and ensures a leak-free connection when properly installed. The longevity and efficiency of the adapter depend on correct installation and the quality of the mating threads.

Service and operation

Regular inspection of the adapter is recommended to check for signs of wear, corrosion, or leakage. If the system experiences reduced flow or pressure, the adapter should be checked for blockage or misalignment. No specific service intervals are provided for this product. During maintenance, the adapter should be removed and cleaned if necessary. Reinstallation should follow the same procedure as initial installation to ensure a secure and leak-free connection.

Frequently asked questions

Can this adapter be used with other IBC valve models?
Yes, provided the valve has an S60x6mm internal thread and the system requires a 1 inch external thread connection.

Is it possible to connect multiple components to the 1 inch external thread?
Yes, the 1 inch external thread is standard and can be used to connect various irrigation components such as filters, pressure regulators, or sprinkler heads.

Can this adapter be used in high-pressure irrigation systems?
Yes, as long as the system pressure is within the manufacturer's specifications for the IBC valve and other connected components.

Is it necessary to use thread sealant when installing this adapter?
Thread sealant is not required for standard installation, but it may be used if the system is in a high-humidity or corrosive environment to ensure a leak-free connection.
