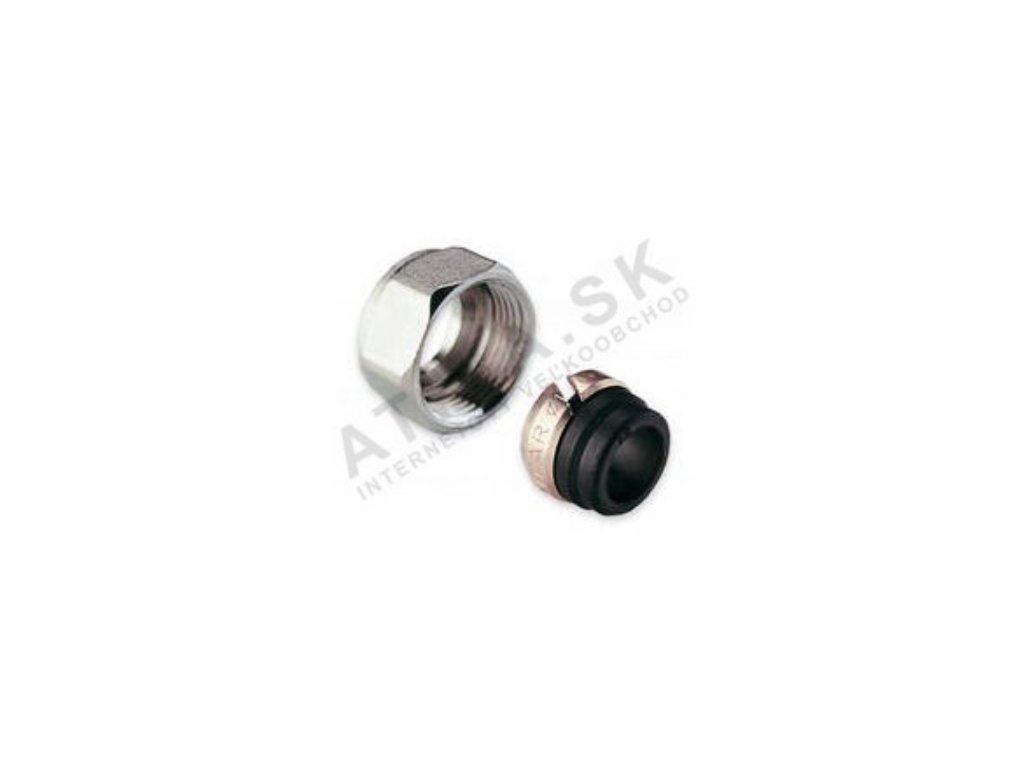

Clamp fitting - for copper pipe, 15 x 1 - M 24

Product detailed description

Fasteners - for copper pipe, IVAR.TR 430, size: 15 x 1 - M 24, packing: 50 pcs in bag / 400 pcs in box

• PN 10, T = +120 °C
• thread M 24
• use for Cu and IVAR piping.C-STEEL
• material brass CW617N, O-ring - EPDM
• tightening torque 35–45 Nm for Cu wiring
• tightening torque 40-50 Nm for IVAR wiring.C-STEEL

2. Insert the pipe and the appropriate EPDM gasket into the fitting and ensure that everything is clean and that there is no damage to the O-ring.

3. Fit the nut onto the thread and hand tighten, use the appropriate size AC 670 / AC 671 spanner to fully tighten

The rubber parts must not be lubricated with mineral oils under any circumstances, only silicone based lubricant should be used on the EPDM material.

No lubricant should be used on the EPDM material.
