DAB.S4 GG - 4" submersible pumps with water-filled motor

SUBMERSIBLE PUMPS

DAB.S4 GG ( S4 AMERIA)

Submersible centrifugal pumps for wells and boreholes larger than 4" diameter. The pumps are used for pumping water, for pressurizing and supplying water to the distribution systems of small and large buildings, civil and industrial, as well as for irrigation, washing and fire protection systems. Technopolymer impellers with stainless steel suction rings. Pump casing, shaft, motor coupling, integrated suction filter and stainless steel cable cover. Suction body, discharge body and hanging lugs in AISI 304 stainless steel. Removable integrated check valve in technopolymer or with stainless steel plate (depending on model). Technopolymer impellers designed to ensure a high level of efficiency in accordance with Directive 2009/125/EC (Eco design - ErP) with MEI ≥ 0.4 for the entire range. ACS certified, WRAS certified. The 4GG motor is a two-pole asynchronous motor, its parts in contact with water are made of AISI 304 stainless steel. The pressure block and bushings are cooled and lubricated with a mixture of water and glycol. The rotor is housed in plain radial bearings, the axial load is captured by a robust plain heel bearing.



  • Operating range: up to 21.6 m3/h with a displacement of up to 427 metres
  • Pumped fluid: Clean, free of solids and abrasives, non-viscous, non-aggressive, chemically neutral, properties close to water
  • Maximum pump diameter: 99 mm
  • Maximum sand quantity: 150 g/m3
  • Discharge outlet diameter: S4-1, S4-2, S4-3, S4-4, S4-6: 1 ¼"
  • S4-8, S4-12, S4-16: 2"
  • Impeller material: Technopolymer
  • Fluid temperature range: 0 °C to +40 °C
  • Maximum immersion: 4GG: 300 m
  • Maximum number of starts: 20/h
  • Degree of protection: IP 68
  • Insulation class: F
  • Single-phase voltage: 1x230 V 50 Hz
  • Three-phase voltage: 3x230 V 50 Hz - 3x400 V 50 Hz
  • Installation: vertical installation, horizontal installation is possible, it is recommended to install a cooling jacket

Bestsellers

154 items total
17770 image bm07 4gg

S4 1/13 M 4GG 4" submersible pump for boreholes and wells - 0,37kW - 1x230V

60190949
17770 image bm07 4gg

S4 1/13 M KIT 4GG 4" submersible pump for boreholes and wells - 0,37kW - 1x230V

60191458
17770 image bm07 4gg

S4 1/13 T 4GG 4" submersible pump for boreholes and wells - 0,37kW - 3x230V

60190986
17770 image bm07 4gg

S4 1/13 T 4GG 4" submersible pump for boreholes and wells - 0,37kW - 3x400V

60191135
17770 image bm07 4gg

S4 1/19 M 4GG 4" submersible pump for boreholes and wells - 0,55kW - 1x230V

60190950
13190 image trd02b 0

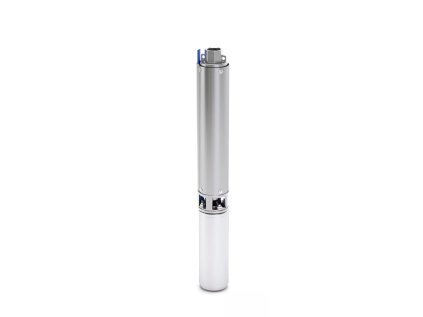

S4 1/19 M KIT 4GG 4" submersible pump for boreholes and wells - 0,55kW - 1x230V

60191459
17770 image bm07 4gg

S4 1/19 T 4GG 4" submersible pump for boreholes and wells - 0,55kW - 3x230V

60190987
17770 image bm07 4gg

S4 1/19 T 4GG 4" submersible pump for boreholes and wells - 0,55kW - 3x400V

60191136
17770 image bm07 4gg

S4 1/26 M 4GG 4" submersible pump for boreholes and wells - 0,75kW - 1x230V

60190951
17770 image bm07 4gg

S4 1/26 T 4GG 4" submersible pump for boreholes and wells - 0,75kW - 3x230V

60190988
17770 image bm07 4gg

S4 1/26 T 4GG 4" submersible pump for boreholes and wells - 0,75kW - 3x400V

60191137
17770 image bm07 4gg

S4 1/37 M 4GG 4" submersible pump for boreholes and wells - 1,1kW - 1x230V

60190952
17770 image bm07 4gg

S4 1/37 T 4GG 4" submersible pump for boreholes and wells - 1,1kW - 3x230V

60190989
17770 image bm07 4gg

S4 1/37 T 4GG 4" submersible pump for boreholes and wells - 1,1kW - 3x400V

60191138
17770 image bm07 4gg

S4 1/48 M 4GG 4" submersible pump for boreholes and wells - 1,5kW - 1x230V

60190953
17770 image bm07 4gg

S4 1/48 T 4GG 4" submersible pump for boreholes and wells - 1,5kW - 3x230V

60190990
17770 image bm07 4gg

S4 1/48 T 4GG 4" submersible pump for boreholes and wells - 1,5kW - 3x400V

60191139
17770 image bm07 4gg

S4 12/13 M 4GG 4" submersible pump for boreholes and wells - 2,2kW - 1x230V

60190983
17770 image bm07 4gg

S4 12/13 M KIT 4GG 4" submersible pump for boreholes and wells - 2,2kW - 1x230V

60191492
17770 image bm07 4gg

S4 12/13 T 4GG 4" submersible pump for boreholes and wells - 2,2kW - 3x230V

60191048
18439 image IMG HIGH S4 HYDRAULI

S4 12/13 T 4GG 4" submersible pump for boreholes and wells - 2,2kW - 3x400V

60191187
17770 image bm07 4gg

S4 12/6 M 4GG 4" submersible pump for boreholes and wells - 1,1kW - 1x230V

60190981
17770 image bm07 4gg

S4 12/6 M KIT 4GG 4" submersible pump for boreholes and wells - 1,1kW - 1x230V

60191490
18946 image bm07 4gg

S4 12/6 T 4GG 4" submersible pump for boreholes and wells - 1,1kW - 3x230V

60191046
17770 image bm07 4gg

S4 12/6 T 4GG 4" submersible pump for boreholes and wells - 1,1kW - 3x400V

60191185
18439 image IMG HIGH S4 HYDRAULI

S4 12/9 4" submersible pump for boreholes and wells - hydraulic part

60190737
17770 image bm07 4gg

S4 12/9 M 4GG 4" submersible pump for boreholes and wells - 1,5kW - 1x230V

60190982
17770 image bm07 4gg

S4 12/9 M KIT 4GG 4" submersible pump for boreholes and wells - 1,5kW - 1x230V

60191491
18946 image bm07 4gg

S4 12/9 T 4GG 4" submersible pump for boreholes and wells - 1,5kW - 3x230V

60191047
17770 image bm07 4gg

S4 12/9 T 4GG 4" submersible pump for boreholes and wells - 1,5kW - 3x400V

60191186
17770 image bm07 4gg

S4 16/12 M 4GG 4" submersible pump for boreholes and wells - 2,2kW - 1x230V

60190985
17770 image bm07 4gg

S4 16/12 T 4GG 4" submersible pump for boreholes and wells - 2,2kW - 3x230V

60191054
18946 image bm07 4gg

S4 16/12 T 4GG 4" submersible pump for boreholes and wells - 2,2kW - 3x400V

60191193
17770 image bm07 4gg

S4 16/8 M KIT 4GG 4" submersible pump for boreholes and wells - 1,5kW - 1x230V

60191493
17770 image bm07 4gg

S4 16/8 T 4GG 4" submersible pump for boreholes and wells - 1,5kW - 3x400V

60191192
17770 image bm07 4gg

S4 2/10 M 4GG 4" submersible pump for boreholes and wells - 0,55kW - 1x230V

60190955
17770 image bm07 4gg

S4 2/10 T 4GG 4" submersible pump for boreholes and wells - 0,55kW - 3x230V

60190992
17770 image bm07 4gg

S4 2/10 T 4GG 4" submersible pump for boreholes and wells - 0,55kW - 3x400V

60191142
17770 image bm07 4gg

S4 2/14 M 4GG 4" submersible pump for boreholes and wells - 0,75kW - 1x230V

60190956
17770 image bm07 4gg

S4 2/14 T 4GG 4" submersible pump for boreholes and wells - 0,75kW - 3x230V

60190993
17770 image bm07 4gg

S4 2/14 T 4GG 4" submersible pump for boreholes and wells - 0,75kW - 3x400V

60191143
17770 image bm07 4gg

S4 2/20 M 4GG 4" submersible pump for boreholes and wells - 1,1kW - 1x230V

60190957
17770 image bm07 4gg

S4 2/20 T 4GG 4" submersible pump for boreholes and wells - 0,75kW - 3x230V

60190994
17770 image bm07 4gg

S4 2/20 T 4GG 4" submersible pump for boreholes and wells - 1,1kW - 3x400V

60191144
17770 image bm07 4gg

S4 2/28 M 4GG 4" submersible pump for boreholes and wells - 1,5kW - 1x230V

60190958
17770 image bm07 4gg

S4 2/28 M KIT 4GG 4" submersible pump for boreholes and wells - 1,5kW - 1x230V

60191467
17770 image bm07 4gg

S4 2/28 T 4GG 4" submersible pump for boreholes and wells - 1,5kW - 3x230V

60190995
17770 image bm07 4gg

S4 2/28 T 4GG 4" submersible pump for boreholes and wells - 1,5kW - 3x400V

60191145
17770 image bm07 4gg

S4 2/40 M 4GG 4" submersible pump for boreholes and wells - 2,2kW - 1x230V

60190959
17770 image bm07 4gg

S4 2/40 T 4GG 4" submersible pump for boreholes and wells - 2,2kW - 3x230V

60190996
