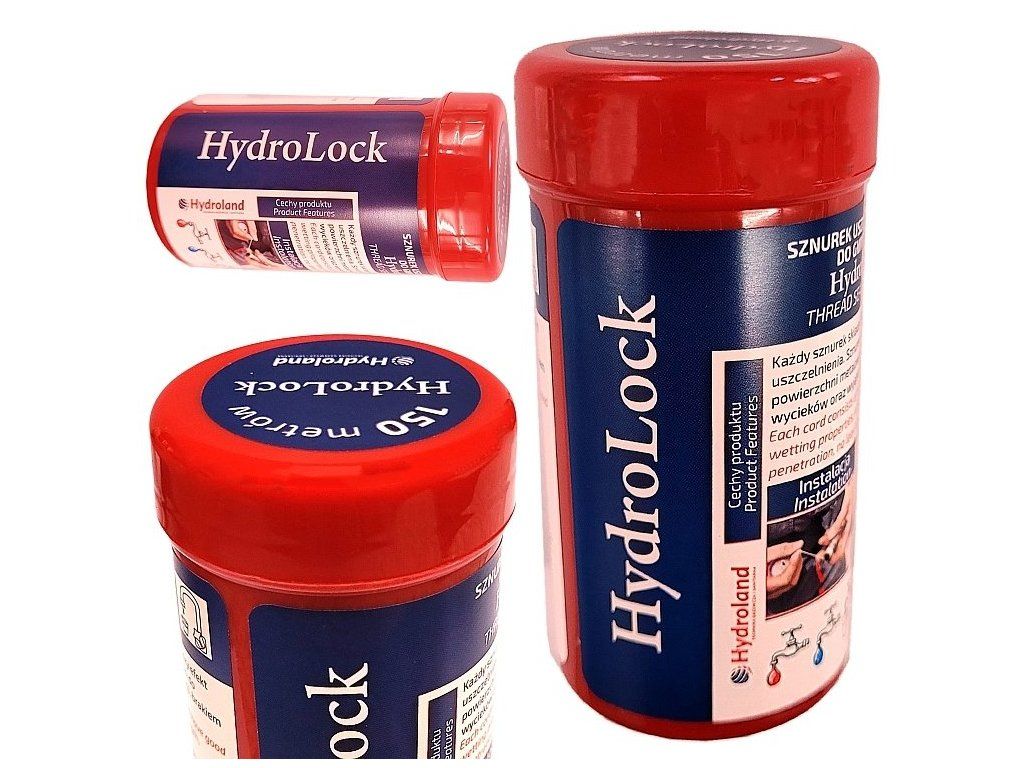

HydroLock Thread Sealing Yarn - 150 m Roll

Product detailed description

Threaded pipe connections are a fundamental part of plumbing and heating systems in residential and commercial buildings. Whether working on central heating systems, gas pipelines or potable water installations, installers frequently encounter metal and plastic threaded joints that require reliable sealing. These connections are often found in radiators, pipe fittings, valves and gas appliances. A sealing solution that maintains flexibility and does not harden is essential for ensuring leak-free performance and ease of maintenance. HydroLock sealing yarn is specifically designed for such applications, providing a durable and adaptable seal without the need for curing time.

When working with threaded joints, it is important to consider the type of material being sealed, the thread profile and the operating conditions. Metal threads such as those in copper, steel or brass components require a sealing material that can conform to irregularities and maintain integrity under pressure. Plastic threads, commonly found in modern plumbing systems, also benefit from a non-hardening seal that prevents damage during tightening. HydroLock sealing yarn is suitable for both types of threads and supports a wide range of installation scenarios, from new builds to system repairs.

Technical parameters

Installation and connection

Proper installation of HydroLock sealing yarn is crucial for achieving a reliable seal. The yarn should be wound onto the external thread in the direction of tightening, starting approximately from the second thread from the end of the pipe. Apply the yarn with even, light tension to ensure it embeds into the thread grooves. Once the yarn is in place, the fitting can be tightened using standard procedures. After tightening, any excess yarn should be trimmed to prevent interference with adjacent components.

Common installation mistakes include over-winding the yarn, which can lead to uneven compression and potential leaks, and incorrect winding direction, which may cause the yarn to unwind during tightening. It is also important to ensure that the thread is clean and free of debris before applying the yarn. These steps help to maximise the effectiveness of the seal and reduce the risk of failure.

Compatibility and accessories

HydroLock sealing yarn is compatible with a wide range of metal and plastic threaded components used in heating, gas and potable water systems. It is suitable for copper, steel, brass and plastic threads, making it a versatile solution for various installation scenarios. No additional sealing compounds or adhesives are required when using this yarn, simplifying the installation process.

When working on complex systems, it may be necessary to use other sealing methods in conjunction with HydroLock yarn, depending on the specific requirements of the joint. However, for standard threaded connections, the yarn provides a sufficient and reliable seal on its own. No special tools are required for application, and the yarn can be used with standard pipe fittings and valves.

Technical background for designers

HydroLock sealing yarn is composed of over 200 fine reinforcing fibres, which allow it to conform to the thread profile and create a continuous sealing layer. The non-setting property of the yarn ensures that it remains flexible and does not harden over time, preserving the integrity of the seal. This is particularly important in systems where joints may need to be disassembled for maintenance or inspection.

The high adhesion of the yarn to metal surfaces enhances its sealing performance, especially in high-pressure applications. The material is also resistant to minor thread imperfections and vibrations, which are common in operating systems. These properties make HydroLock suitable for use in a variety of environments, including those with fluctuating temperatures and pressures.

Service and operation

HydroLock sealing yarn requires minimal maintenance during operation. Since it does not harden, there is no need for reapplication or replacement due to material degradation. However, it is important to inspect the joints periodically for signs of wear or leakage, especially in high-traffic areas or systems with frequent pressure changes. If a joint needs to be disassembled, the yarn can be removed without damaging the thread or the seal.

During service checks, ensure that the yarn remains intact and that there are no signs of displacement or compression. If the yarn is found to be damaged or insufficient, it should be replaced with a new roll. The non-setting nature of the yarn allows for easy removal and reapplication, making it a convenient choice for long-term use.

Frequently asked questions

Does HydroLock harden over time?
No, HydroLock remains non-setting permanently, allowing the joint to be disassembled at any time without damaging the seal.

Is it suitable for potable water systems?
Yes, HydroLock is approved for use in potable water systems and is not limited to heating or gas applications.

Can the fitting be adjusted after tightening?
Yes, due to the non-setting structure of the yarn, the fitting can be slightly adjusted after tightening without compromising the seal.

How many joints can be sealed with a 150 m roll?
The number of joints depends on the thread size, but a single roll typically covers a large number of standard joints.
