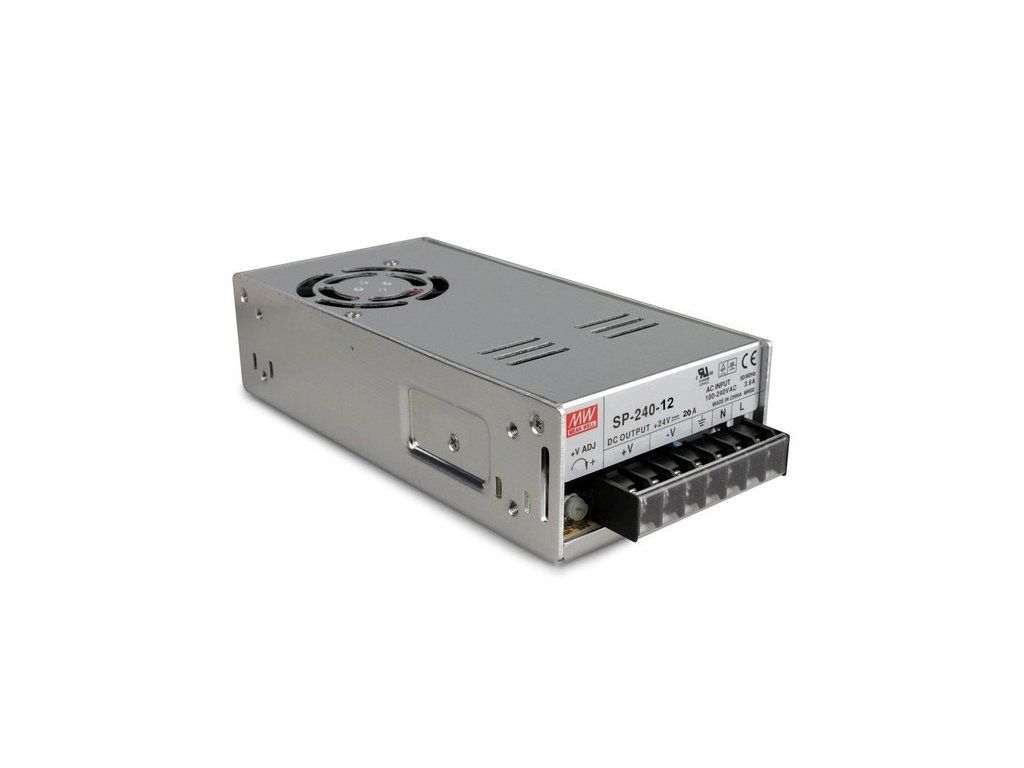

MEAN WELL SP-240-12 Switching power supply closed 240W 12V

Product detailed description

Closed type (case) Universal AC input 88~264VAC, 124~370VDC Built-in PFC - Power Factor Corrector (reactive component correction) Built-in active cooling fan 50mm profile Screw connections Auto shutdown on overload, auto recovery Short circuit resistant 100% burn-in-test at full load Built-in suppression filter, low residual ripple Single output 1.8A rated input current 230V 40A cold start shock current 230V Stable PFC switching frequency 90KHz Operating temperature range from -20 to +70°C Overload protection: 105...150% Overvoltage protection: 110...135% Insulation voltage from input to output 3000V AC Insulation voltage from input to ground cable 1500V AC Insulation voltage from output to ground cable 500V AC Insulation resistance from input to output: 100M? Insulation resistance from input to ground cable 100M? Insulation resistance from output to ground cable 100M? 20 ms mains failure bridging at 230V LED status indication Dimensions: 190x93x50mm Weight: 800g Technical parameters Physical characteristics Construction Power input and output Operating Temperature [°C]: -20 to 70 Weight [g]: 800 Power supply Power [W]: 240 Output voltage [V]: 12 Output current [A]: 20 Efficiency [%]: 86
