PEX/PEX Crimp Connector (20)

Product detailed description

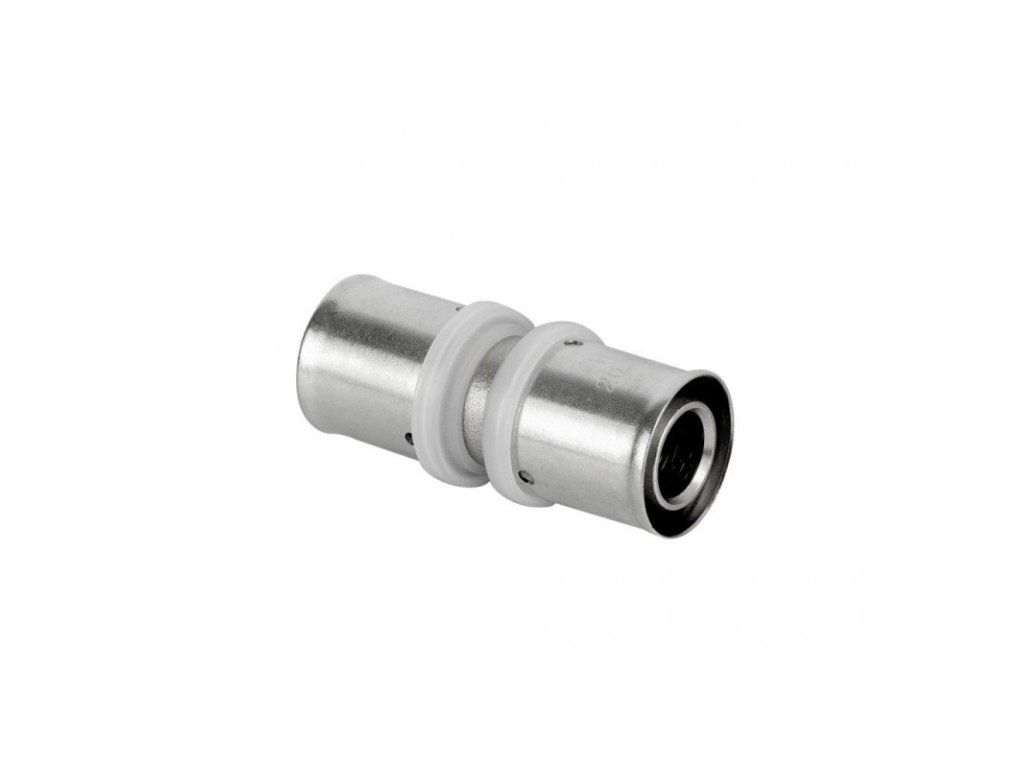

This PEX/PEX crimp connector is commonly used in residential and commercial plumbing and heating systems. It is designed for connecting PEX pipes in applications such as underfloor heating, domestic hot and cold water distribution, and radiant heating systems. The connector ensures a durable and leak-free connection when properly installed using compatible crimping tools.

Installers and technicians working with PEX piping systems will find this connector suitable for creating reliable joints in closed-loop or branch pipe configurations. It is particularly useful in systems where flexibility and thermal expansion resistance are required. The connector is intended for use with PEX piping of the correct diameter and wall thickness, as specified by the manufacturer’s technical data sheet.

Technical parameters

Installation and connection

Installation involves inserting the prepared PEX pipe into the connector and securing it using a crimping tool with a U-profile jaw. The connection size must match the pipe dimensions to ensure a tight fit. It is important to verify that the pipe is cut straight and free from burrs before insertion. Common installation errors include using incorrect crimping pressure or mismatched tooling, which can compromise the joint integrity.

Compatibility and accessories

This connector is compatible with PEX piping systems and requires the use of a suitable crimping tool for secure installation. Additional accessories such as pipe cutters, deburring tools, and crimping dies may be necessary for a complete installation. Installers should ensure that all components are from the same system to maintain compatibility and performance.

Technical background for designers

The connector operates on a mechanical crimping principle, where the U-profile jaw compresses the connector around the PEX pipe, forming a secure and durable joint. The nickel-plated brass material provides corrosion resistance and mechanical strength, making it suitable for long-term use in both hot and cold water systems. The design allows for thermal expansion and contraction of the PEX pipe without affecting the joint integrity. The service life and efficiency of the connection depend on correct installation, system pressure, and operating temperature, all of which should be considered during system design.

Service and operation

Once installed, the connector requires no regular maintenance. However, it is important to periodically inspect the system for leaks or signs of wear, particularly in high-pressure or high-temperature environments. If any issues are detected, the affected joint should be replaced immediately. No scheduled service intervals are specified for this component.

Frequently asked questions

Can this connector be used with PEX-AL-PEX pipes?
No, this connector is specifically designed for PEX/PEX pipe connections and is not suitable for PEX-AL-PEX pipes.

What crimping tool is required for this connector?
A crimping tool with a U-profile jaw is required to ensure a secure and leak-free connection.

Is this connector suitable for high-pressure systems?
Yes, provided the system pressure and temperature are within the manufacturer's specifications for PEX piping systems.

Can the connector be reused after installation?
No, once crimped, the connector cannot be reused. A new connector must be installed if the joint needs to be replaced.
