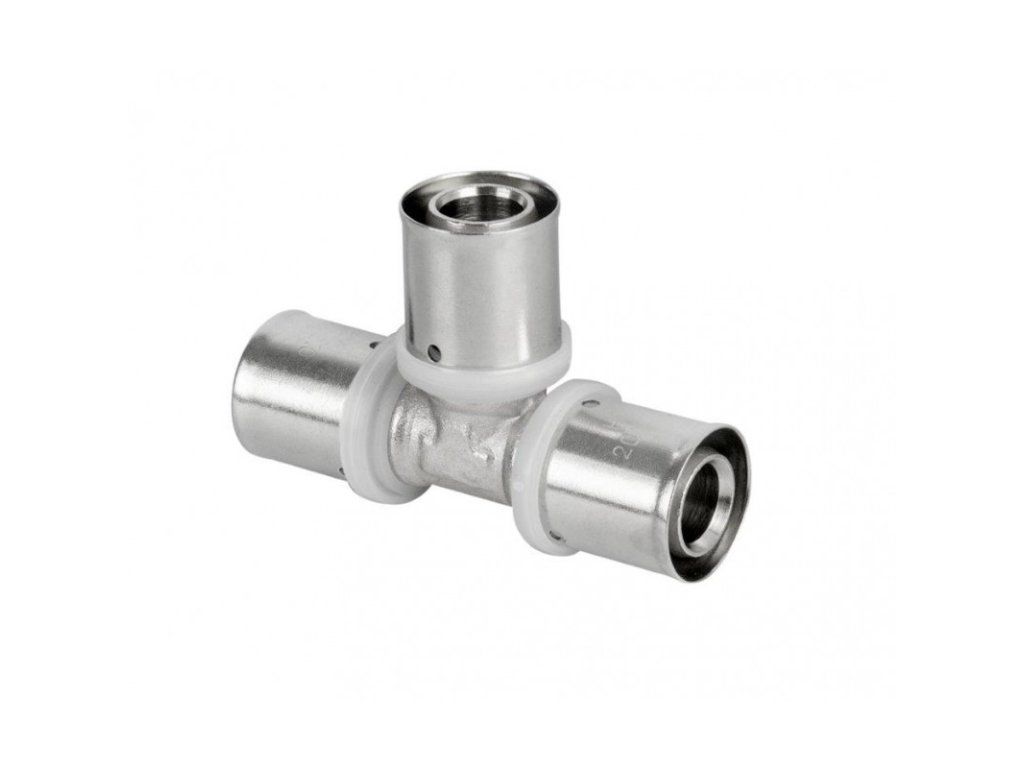

Pressing T-piece PEX/PEX/PEX

Product detailed description

This T-piece is commonly used in residential and commercial buildings for the installation of radiant heating, hot and cold water distribution, and sanitation systems. It allows for the branching of PEX piping in a secure and leak-free manner. Installers working with PEX systems will find this fitting essential for creating T-junctions in press-fitted PEX networks. The press connection method ensures a durable and reliable joint when used with the correct tools and procedures.

Typical applications include underfloor heating systems, domestic hot and cold water supply lines, and other low-pressure fluid distribution systems. The fitting is suitable for use in both new builds and renovation projects where PEX piping is the preferred material. It is commonly found in systems where flexibility and ease of installation are required, such as in retrofitting or where pipe routing is complex.

Technical parameters

Code	PEX-Z.T16
Brand	Hydroland

Installation and connection

To install the PEX-Z.T16, the installer must first prepare the PEX pipes by cutting them cleanly and removing any burrs. The ends of the pipes are then inserted into the fitting until they reach the stop mark. A press tool with a U-profile die is used to compress the fitting around the pipe, forming a secure joint. It is important to ensure that the tool is correctly aligned and that the pressing action is performed according to the manufacturer’s instructions. Common installation mistakes include misalignment of the press tool, which can result in an incomplete or uneven compression, and failure to fully insert the pipe into the fitting. These errors can lead to leaks or reduced joint strength. After pressing, the joint should be visually inspected for even compression and the absence of visible gaps or deformities.

Compatibility and accessories

This T-piece is specifically designed for use with PEX pipes and is compatible with standard PEX press-fitting tools. It is not suitable for use with other pipe materials such as copper or polypropylene. When installing, it is essential to use PEX pipes of the correct diameter and to ensure that the press tool is compatible with the U-profile pressing method. No additional sealing materials are required for this type of connection.

Technical background for designers

The PEX-Z.T16 operates on the principle of mechanical compression, where the U-profile pressing method creates a tight and durable joint between the PEX pipe and the fitting. The nickel-plated brass material offers resistance to corrosion and ensures long-term reliability in water-based systems. The press connection method eliminates the need for soldering or additional sealing compounds, making it a preferred option in systems where fire safety or electrical interference is a concern. The design of the T-piece allows for even load distribution across the joint, reducing the risk of stress points that could lead to failure over time. The material and connection method are suitable for use in systems operating within standard temperature and pressure ranges for PEX piping. Designers should ensure that the system layout allows for proper access to the fitting during installation and that the press tool is compatible with the U-profile pressing method.

Service and operation

Once installed, the PEX-Z.T16 requires no regular maintenance. However, it is important to periodically inspect the system for signs of leaks or pressure loss. If a leak is detected, the affected joint should be isolated and, if necessary, the fitting replaced. The press connection is not designed to be disassembled, so any repairs will require cutting out the faulty section and replacing it with new pipe and fittings.

Frequently asked questions

Can the PEX-Z.T16 be used with PEX-a or PEX-b pipes?
Yes, the fitting is compatible with both PEX-a and PEX-b pipes as long as the correct pressing method is used.

Is it possible to reuse the PEX-Z.T16 after pressing?
No, the press connection is a one-time operation. Once pressed, the fitting cannot be reused or repositioned.

Can this T-piece be used in a high-pressure system?
It is suitable for standard pressure systems as defined by the manufacturer's technical data sheet. For high-pressure applications, consult the manufacturer's specifications.

What tools are required for installation?
A press tool with a U-profile die is required to compress the fitting around the PEX pipe. Ensure the tool is compatible with the fitting's design.
