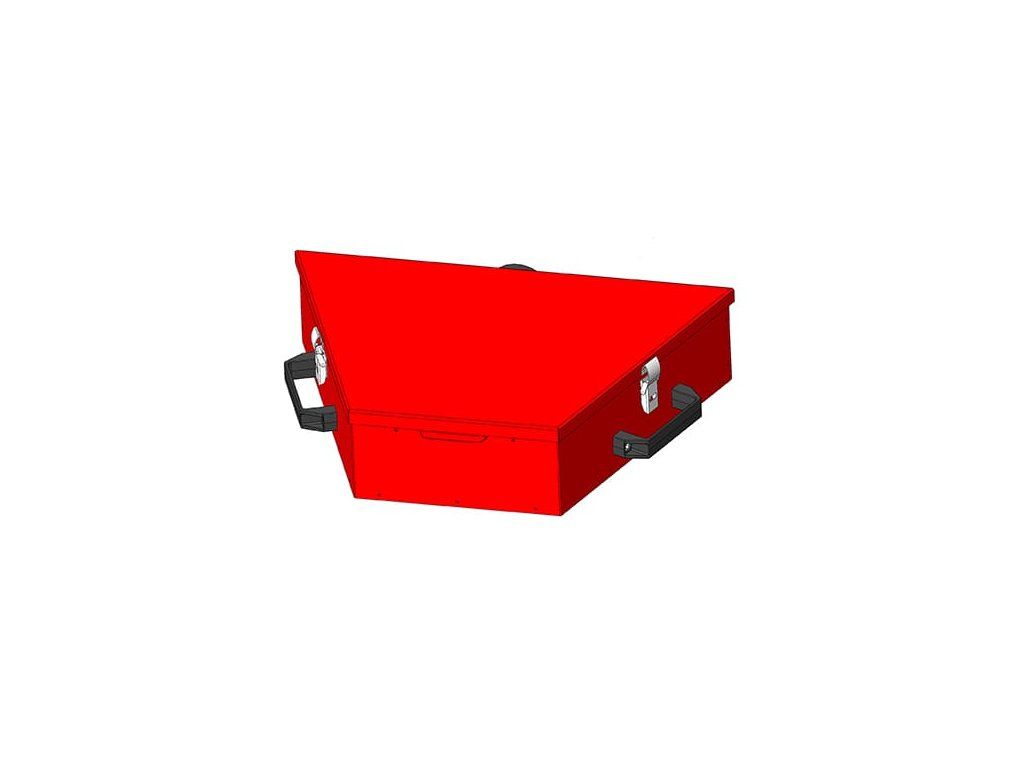

Ash Removal Add-on S1229

Product detailed description

This ash removal add-on is designed for integration with pellet boilers in residential and commercial heating systems. It is typically used in installations where regular ash removal is required to maintain boiler efficiency and reduce manual cleaning. The system is intended for use in buildings with central heating systems that rely on pellet combustion for heat generation. Installers and technicians working with these boilers will find this add-on useful for maintaining system performance and reducing maintenance frequency.

The S1229 is a compact unit, suitable for boilers with front covers. It is specifically engineered for use with Atmos D14P, D21P, D25P, and D31P models. The unit is designed for long-term operation with high-quality wood pellets, ensuring consistent performance and minimal ash accumulation. The system is intended for use in installations where regular ash removal is required, and it is compatible with the design of the 2017 model series.

Technical parameters

Weight	6.325 kg
Code	S1229
Brand	Atmos

The unit has a total weight of 6.325 kg and a volume of 18L. These parameters are important for determining the space required for installation and the frequency of ash removal. The weight and volume are typical for a compact ash removal system, and they influence the design of the boiler and the overall system layout. The unit is intended for use with the specified boiler models and is not interchangeable with other models.

Installation and connection

The S1229 is installed as part of the boiler system and is connected to the internal ash removal mechanism. The installation process involves aligning the unit with the boiler's front cover and securing it in place. It is important to ensure that the unit is correctly positioned to allow for proper ash flow and to prevent blockages. Common installation mistakes include incorrect alignment or failure to secure the unit properly, which can lead to operational issues. The unit does not require additional electrical connections or hydraulic components, making it a straightforward addition to the boiler system.

Compatibility and accessories

The S1229 is specifically designed for use with Atmos D14P, D21P, D25P, and D31P boilers. It is not compatible with other models or with boilers that have different ash removal systems. No additional accessories are required for operation, as the unit is self-contained and does not require external components. The unit is intended for use with high-quality wood pellets, and it is important to ensure that the boiler is operating with the correct fuel type to maintain system efficiency.

Technical background for designers

The S1229 operates as an extension of the boiler's internal ash removal system. It collects ash from the combustion chamber and stores it until it is manually removed. The unit is constructed from durable materials suitable for long-term exposure to ash and heat. The design ensures that ash is collected efficiently without interfering with the boiler's operation. The unit's performance is influenced by the type of fuel used and the frequency of ash accumulation. For optimal efficiency, the unit should be used with high-quality wood pellets to minimize ash production and extend the interval between cleanings.

Service and operation

The S1229 requires regular maintenance to ensure continued performance. The unit should be emptied manually at intervals of 14 to 30 days, depending on the frequency of boiler operation and the type of fuel used. During maintenance, it is important to check for blockages or signs of wear that could affect the unit's performance. The unit does not require lubrication or electrical servicing, and it is designed for long-term use with minimal intervention. Regular inspection and cleaning will help to maintain system efficiency and reduce the risk of operational issues.

Frequently asked questions

Can the S1229 be used with other Atmos boiler models besides D14P, D21P, D25P, and D31P?
No, the S1229 is specifically designed for use with the D14P, D21P, D25P, and D31P models. It is not compatible with other models or with boilers that have different ash removal systems.

How often should the S1229 be emptied?
The unit should be emptied every 14 to 30 days, depending on the frequency of boiler operation and the type of fuel used. High-quality wood pellets will typically result in longer intervals between cleanings.

Does the S1229 require any additional electrical or hydraulic connections?
No, the S1229 does not require any additional electrical or hydraulic connections. It is a self-contained unit that is connected to the boiler's internal ash removal system.

Can the S1229 be used with fuels other than wood pellets?
The unit is designed for use with high-quality wood pellets. It is not recommended for use with other types of fuel, as this may affect the performance of the boiler and the efficiency of the ash removal system.
