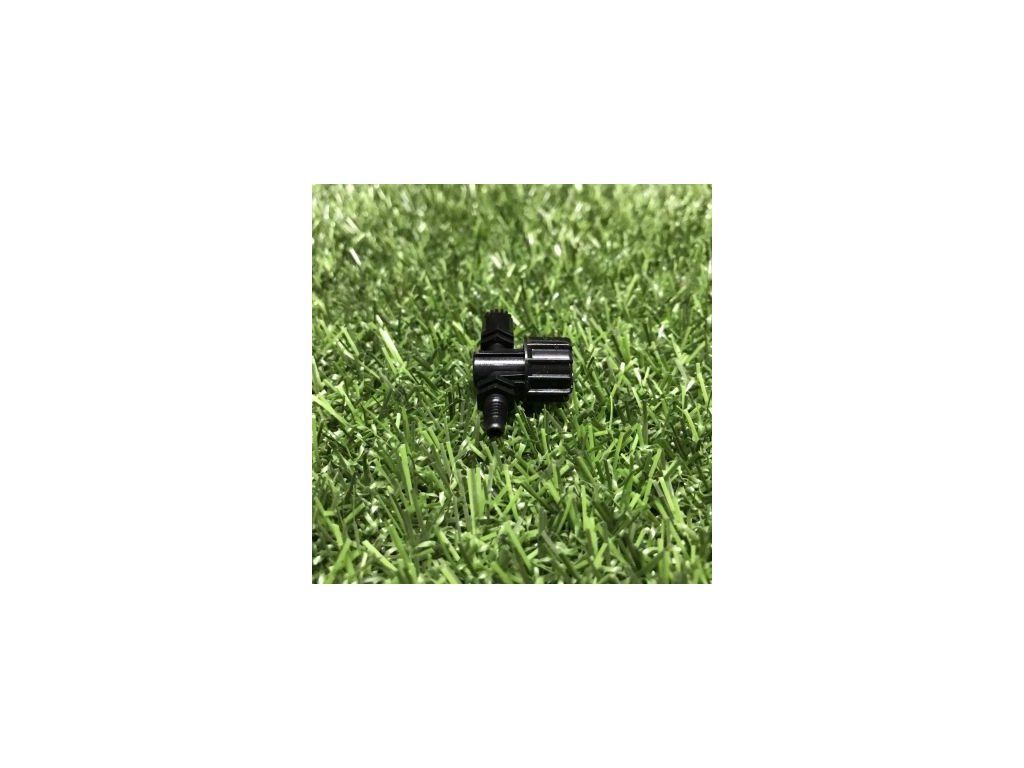

RainBird Nozzle with flow control XS-360

Product detailed description

The XS-360 Adjustable Spray Nozzle is commonly used in micro-irrigation systems for gardens, greenhouses, and small-scale landscaping projects. It is installed on sprinkler heads or drip irrigation manifolds where precise water distribution is required. The nozzle is typically used in low-pressure systems and is suitable for applications where flow adjustment is necessary to match varying irrigation needs. Installers and technicians working on garden irrigation or small-scale irrigation systems will find this nozzle useful for fine-tuning water output without the need for additional valves or fittings.

Its compact design allows for integration into tight spaces, and the adjustable flow feature makes it adaptable to different soil types and plant requirements. The nozzle is typically installed in systems where uniform water coverage is essential, such as in flower beds, shrub areas, or small vegetable gardens. It is often used in conjunction with Rain Bird or compatible irrigation heads and is suitable for both manual and automated irrigation setups.

Technical parameters

Installation and connection

Installation of the XS-360 nozzle is straightforward and typically involves screwing it onto an existing sprinkler head or manifold port. The connection is made using standard thread types, and the installer should ensure that the threads are clean and free from debris before tightening. It is important to check that the nozzle is seated correctly and that there is no leakage at the connection point. A common mistake during installation is over-tightening, which can damage the nozzle or the connection threads.

Before final tightening, the system should be depressurised to avoid damage during installation. Once installed, the ball valve can be adjusted to the desired flow rate by turning it to the appropriate position. The installer should test the nozzle after installation to ensure that the flow is even and that there are no blockages or misalignments.

Compatibility and accessories

The XS-360 nozzle is compatible with standard micro-irrigation systems and is designed to fit Rain Bird or similar sprinkler heads with the appropriate thread size. It is typically used with low-pressure systems and is suitable for integration into both manual and automated irrigation setups. When installing this nozzle, it may be necessary to use additional components such as filters or pressure regulators, depending on the system requirements. These accessories should be selected based on the specific irrigation needs and system design.

Technical background for designers

The XS-360 nozzle operates by allowing the user to adjust the flow rate through a ball valve mechanism. This mechanism controls the opening size, which in turn affects the water output. The nozzle is constructed from durable materials that are resistant to corrosion and wear, ensuring long-term performance in outdoor environments. The 360° spray pattern is achieved through a specially designed internal geometry that ensures even water distribution. The efficiency of the nozzle depends on the system pressure and the position of the ball valve, so it is important to consider these factors during system design.

When integrating the XS-360 nozzle into an irrigation system, designers should ensure that the system pressure is within the recommended range and that the nozzle is compatible with the existing components. The nozzle is suitable for use in both new and existing irrigation systems and can be used to replace older nozzles that do not offer adjustable flow features. The design of the nozzle allows for easy maintenance and replacement, making it a practical choice for long-term irrigation projects.

Service and operation

Regular inspection of the XS-360 nozzle is recommended to ensure that it continues to function correctly. The installer should check for signs of wear, blockages, or damage to the ball valve mechanism. If the nozzle is not delivering the expected flow rate, it may be necessary to clean the internal components or replace the nozzle. There are no specific service intervals provided for this product, but it is advisable to inspect the nozzle periodically, especially in systems where water quality is a concern.

During operation, the installer should ensure that the ball valve is adjusted to the correct position for the specific irrigation zone. If the system is not performing as expected, the flow rate can be adjusted by turning the ball valve to a different position. The nozzle should be removed and cleaned if there are signs of reduced performance or uneven water distribution.
