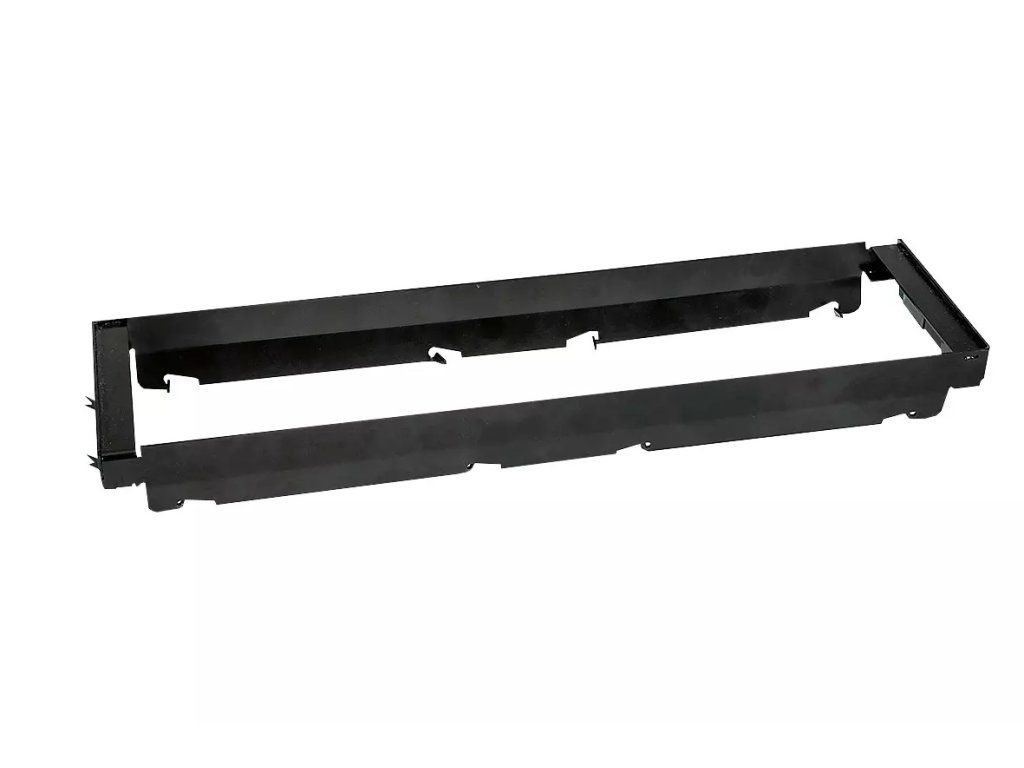

Frame - black; 298x80x30mm IVAR.AIR-RAMECEK

Product detailed description

This frame is commonly used in mechanical ventilation systems with heat recovery, particularly in residential and commercial buildings where concealed ductwork requires a neat and functional cover solution. Installers working on ventilation systems will find this frame suitable for mounting decorative cover grids in wall or ceiling surfaces. It is typically used in conjunction with duct cover systems to provide a seamless finish while maintaining airflow efficiency and system integrity.

The frame is designed to support the integration of cover grids in ventilation ducts, ensuring a secure fit and alignment. It is suitable for use in both new installations and retrofit projects where ventilation systems require aesthetic integration with interior finishes. The frame’s dimensions and design make it ideal for applications where a flush and stable mounting solution is required.

Technical parameters

Installation and connection

The frame is installed by securing it to the duct surface using appropriate fastening methods, such as screws or adhesive, depending on the duct material and installation requirements. The frame’s dimensions must be matched to the duct opening to ensure a tight fit and prevent air leakage. During installation, it is important to ensure that the frame is level and aligned with the duct surface to allow for proper cover grid placement. Common installation errors include misalignment, which can lead to gaps or an uneven surface, and improper fastening, which may result in a loose fit or reduced durability.

Compatibility and accessories

This frame is specifically designed for use with IVAR duct cover grids. When ordering, it is important to ensure that the selected cover grid is compatible with the frame’s dimensions. Additional components such as mounting hardware or sealing materials may be required depending on the duct material and installation method. Installers should verify the compatibility of the frame with the selected cover grid and duct system before final installation.

Technical background for designers

The frame functions as a mounting base for duct cover grids, ensuring a secure and stable connection between the duct and the visible cover. It is typically constructed from durable materials suitable for long-term use in ventilation systems. The frame’s dimensions and design are intended to provide a flush and aesthetically pleasing finish while maintaining airflow efficiency. The material properties and structural design contribute to the system’s overall performance and longevity. Proper integration with the duct system and cover grid is essential to ensure optimal airflow and system efficiency.

Service and operation

Regular visual inspections are recommended to ensure that the frame remains securely attached to the duct and that the cover grid is properly aligned. Any signs of loosening or misalignment should be addressed promptly to maintain system performance. No specific service intervals are provided in the technical data, but maintenance should be performed as part of routine system checks.

Frequently asked questions

Can this frame be used with other IVAR cover grids?
Yes, provided the cover grid dimensions match the frame’s specifications. Compatibility should be verified before installation.

Is this frame suitable for both wall and ceiling installations?
Yes, the frame is designed for use in both wall and ceiling applications where a duct cover grid is required.

What fastening method is recommended for this frame?
Depending on the duct material, screws or adhesive may be used. The method should be selected based on the installation requirements and duct type.

Can this frame be painted or finished to match surrounding surfaces?
It is recommended to check the manufacturer’s technical data sheet for information on surface treatments and compatibility with finishes.
