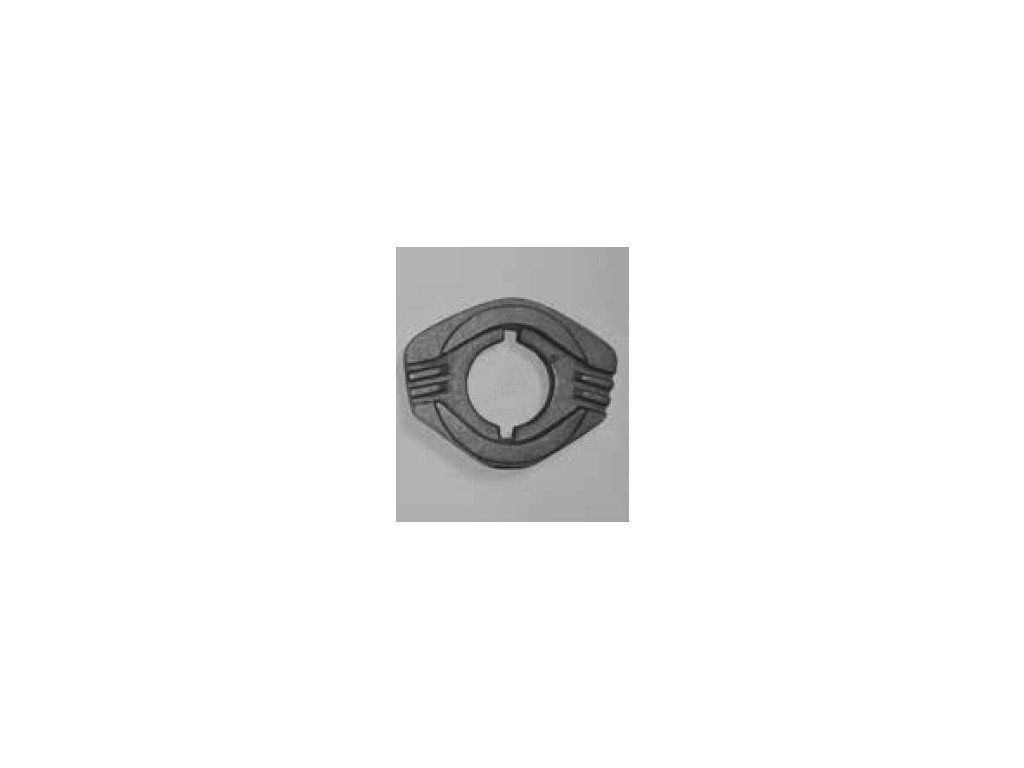

Chrome-coated grate - new

Product detailed description

Chrome-coated grates are essential components in solid fuel boilers, facilitating efficient combustion of wood or coal. In residential and commercial heating systems, these grates help maintain consistent heat output and reduce maintenance requirements. Installers working with ATMOS models often need to replace grates due to wear from prolonged use. This part is specifically tailored for use in selected ATMOS models.

During installation, it is important to ensure the grate aligns correctly with the boiler chamber and supports even airflow distribution. The chrome coating enhances resistance to thermal stress and corrosion, which is particularly important in environments with fluctuating temperatures and high humidity. This component plays a role in the overall efficiency of the boiler system, influencing fuel consumption and emissions.

Technical parameters

Installation and connection

The installation process involves removing the old grate and inserting the new one into the designated slot within the combustion chamber. The grate should fit snugly without requiring additional adjustments. Ensure the grate sits level and is free from obstructions that could affect airflow. Common mistakes include misalignment, which can lead to uneven burning, and failure to clean the area before installation, which can cause premature wear.

Compatibility and accessories

This grate is compatible with ATMOS models ACxxS, KCxxS, C18S, C25ST, C32ST, C40S, and C50S. When replacing, ensure the existing boiler structure allows for proper seating of the grate. No additional components are typically required for installation, though it is recommended to inspect the combustion chamber for signs of wear or damage before fitting the new part.

Technical background for designers

The grate functions as a support for solid fuel during combustion, allowing air to flow through and promote even burning. The chrome coating provides enhanced resistance to high temperatures and oxidation, extending the component’s service life. The material properties also contribute to easier cleaning and reduced residue buildup. Proper integration into the boiler system ensures optimal thermal performance and minimises the risk of blockages or inefficiencies.

Service and operation

Regular visual inspections are recommended to detect signs of wear, deformation, or coating degradation. Clean the grate surface periodically to remove ash and debris, ensuring unobstructed airflow. If any irregularities in combustion occur, such as uneven flame patterns or excessive smoke, the grate should be checked for alignment and integrity.

Frequently asked questions

Can the chrome-coated grate be used in all ATMOS models?
No, it is specifically designed for ACxxS, KCxxS, C18S, C25ST, C32ST, C40S, and C50S models.

Is the grate compatible with both wood and coal burning?
Yes, it is suitable for use with both fuel types in the specified models.

How does the chrome coating affect maintenance?
The coating reduces the need for frequent cleaning and extends the component’s lifespan by resisting corrosion and thermal stress.

What should be checked after installation?
Verify that the grate is seated correctly, level, and free from debris to ensure proper combustion and airflow.
