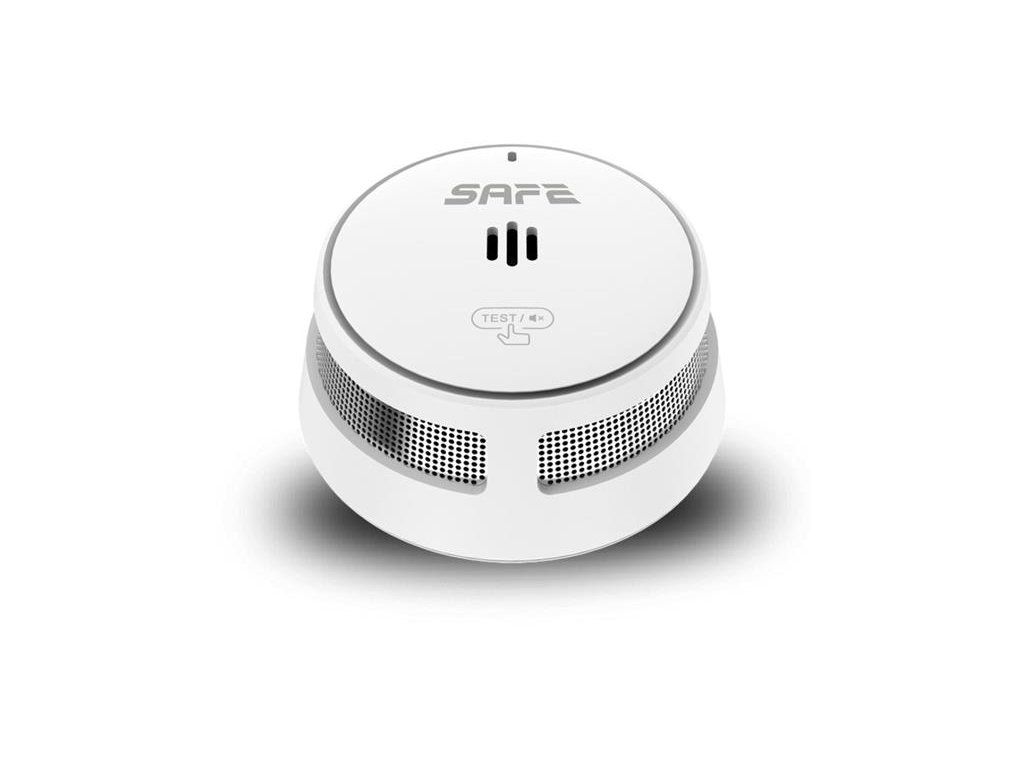

SAFE 10Y30-PRO smoke detector

Product detailed description

Fire and smoke detector SAFE 10Y30 - PRO
New generation fire detector with breakthrough dual-spectrum dust-resistant optical chamber detection and SIC technology for temporary alarm silencing via IR remote control. Power is provided by an integrated lithium battery (built-in, non-replaceable) guaranteeing extremely long operation of the device for over 10 years and an extended 10-year warranty on both the battery and the device itself. The SAFE 10Y30 - PRO fire detector represents a new level of standard in the field of fire safety in residential buildings.

The SAFE 10Y30 - PRO fire detector features a range of new technologies including the AI SAFE microprocessor for real-time false alarm filtering.

The fire detector meets all the standards of STN EN 14604:2009 for installations according to Decree 268/2011 Coll. (formerly No. 23/2008 Coll.), on the technical conditions for fire protection of buildings, which stipulates that every new building and defined construction object must be equipped with an autonomous detection and signalling device and offers an electronic version of the Declaration of Performance documentation mandatory for the approval procedure.

SAFE 10Y30 - PRO fire and smoke detector with 10 years warranty
A new generation of fire detector for continuous air monitoring for the presence of smoke with a breakthrough detection of a dual-spectrum dust-resistant optical chamber powered by an integrated lithium battery (built-in, non-replaceable) guaranteeing extremely long operation of the device for more than 10 years and extended 10 years.

SAFE 10Y30 - PRE is a smoke detector in a timeless compact design combining the latest hardware and software technologies applied to a functional smart detector design representing a new level of standard in residential fire safety.

Unique dual-spectrum smoke chamber technology
A dual-spectral optical sensor with blue and infrared LED sources with different wavelengths was integrated into a dust- and insect-resistant, smoke-proof detection chamber. The design of the chamber, with a direct link to the AI SAFE microprocessor, thus offers the most reliable detection method, which in combination with a prediction algorithm allows the measurement of microparticle concentrations directly in the air and in real time. This unique technology can thus determine the size of volatile particles inside the optical chamber and react only to the real threat of smoke, ignoring the similar composition of water vapour or other fumes.

Responding only to real threats
For fire detection systems in residential buildings, the priority is to inform people in good time about the real danger. The AI SAFE microprocessor was developed based on a detailed analysis of the combustion properties of materials and works with a prediction algorithm that compares data from a dual-spectrum optical sensor and filters out the potential possibility of false alarms in real time. If the recorded data corresponds to liquid water vapour particles or other vapour types the detector will not respond. However, if the dynamics of the data pattern matches the actual smoke particulate parameters of the fire, the detector will immediately trigger a fire alarm.

Fire alarm signalling
If the smoke concentration reaches the set value during detection, the detector automatically triggers a loud 85 dB acoustic alarm signal, accompanied by the flashing of the red LED indicator to signal a fire alarm.

SIC technology and remote alarm silencing by IR remote control
The detector has a combined button with the TEST and SILENCE function, which is designed for testing and verifying the correct functioning of the device as well as for temporarily silencing the detector. In case you know the cause of the fire alarm activation and you need to silence the loud siren acoustic signaling, it is no longer necessary to get to the detector itself to silence it using the button. SIC technology allows you to remotely silence the audible alarm by pressing any button on a standard IR remote control (most controls for home appliances such as TV).

No false alarms
The detector's electronic components and circuit board are coated with an insulating and protective layer of IZOVAX nanoparticle paint and, thanks to the innovative technology of the dual-spectral optical sensing chamber, which can distinguish smoke particles from water vapour, it is possible to detect fires close to bathrooms, drying rooms, kitchens or technical rooms (unlike conventional fire detectors).

Guaranteed operating performance for a decade
Power is provided by an integrated 3 V lithium battery (built-in, non-replaceable) guaranteeing extremely long detector operation for more than 10 years. Battery operation allows for quick and easy installation and ensures proper operation of the smoke and fire detector for more than 10 years after activation. Activation of the power battery occurs after the detector is placed and secured in the mounting bracket. After 10 years of protection and with a 30-day advance notice, the detector will notify you of the end of life and automatically alert you that it needs to be replaced. The extended 10-year warranty covers both the battery and the device itself.

Approval
The SAFE 10Y30 - PRO fire detector uses modern photoelectric (optical) technology using a dual-spectral sensing chamber and has been independently tested by the accredited German TÜV laboratory as compliant with all European standards. Of course, both the CE certificate and the approval according to STN EN 14604:2009 for installations according to Decree No. 268/2011 Coll. (formerly No. 23/2008 Coll.), on the technical conditions for fire protection of buildings, which stipulates that every new building and defined construction object must be equipped with an autonomous detection and signalling device.

Documentation for the approval procedure
On the basis of the Building Act No. 284/2021 Coll. and according to the Decree No. 268/2011 Coll. (formerly No. 23/2008 Coll.), on the technical conditions of fire protection of buildings, the building must be equipped with a system of autonomous detection and signalling in the form of a fire detector meeting the standards of STN EN 14604:2009 on the basis of the fire administration. Compliance with the above technical parameters shall be declared by means of documentation of the fire detector as a construction product in accordance with Regulation (EU) No 305/2011 of the European Parliament and of the Council in the approved form 'Declaration of Performance'.

Here you will find the electronic version of the Declaration of Performance for the SAFE 10Y30 - PRO fire detector, which is essential for your approval procedure.

Where to install
At least one fire detector should be installed on each floor of the house, outside each sleeping area or in the immediate vicinity of bedrooms.

A working fire detector provides immediate warning of smoke or fire in the house, doubling the chance of survival for everyone in the house.

Testing
The best way to test and maintain a fire detector sensor in working order is through the SAFE 220 test gas spray. This spray test gas verifies that the fire and smoke detector circuits and systems are working reliably and actively looking for any hint of smoke particles.

Fire and smoke detector in small and compact size
Bispectral optical (photoelectric) chamber for smoke detection
Distinguishes smoke from steam without false alarms
Unique design of dust and insect resistant smoke detection chamber
Documentation Declaration of performance for the approval procedure
Built-in lithium battery - no replacement required, the battery will provide power for the life of the device
85dB loud acoustic alarm signaling
Function to test and verify the correct functioning of the device
Alarm silencing:
- SIC technology for remote alarm silencing by IR remote control
- Button for manual alarm silencing
Battery powered and guaranteed operating performance for over 10 years
Wall or ceiling installation
Thanks to the protective layer with IZOVAX nanoparticles, installation even in humid environments is possible
End-of-life indication
Minimum operating costs
Easy installation and operation
Timeless and modern design
10 years warranty on the device including the power battery

Technical parameters:

Sensor technology: dual-spectral optical (photoelectric)
Microprocessor: AI SAFE with prediction algorithm
Remote Alarm Silencing: SIC technology for remote alarm silencing by IR remote control
PCB protection: insulating and protective lacquer layer with IZOVAX nanoparticles
Power supply: 3V DC, one lithium battery (integrated for more than 10 years of operation)
Mounting method: On ceiling or wall (mounting material included)
Signalling: acoustic (85 dB siren) and optical (red LED indicator)
Operating temperature: -10 °C to +55 °C
Operating humidity: up to 95% relative humidity without condensation
Storage conditions:
Temperature: -20 °C - +60 °C
Humidity: 5% - 95% relative humidity without condensation
Dimensions: diameter 81.5 mm, height 51.6 mm (with mounting bracket)
Weight with batteries: 110 g
Approval:CSN-EN 14604:2009
Marks: CE 1008-CPR-MC 69266708
