SET - Distribution box PROFI DC 1000V for 1 string T1T2 (B+C) 12.5 kA for photovoltaics

Product detailed description

SET - Distribution box PROFI DC 1000V for 1 string T1T2 (B+C) 12.5 kA for photovoltaics

Pre-prepared assembly kit for photovoltaics. Dedicated for separate mounting for 1 string. The delivery contains switchboard + quality components for photovoltaics: surge protectors, fuse disconnectors and fuses.

The switchboard has a degree of protection IP65, which means that the substation for 1 string completely resistant to dust and water spraying from all anglesat a flow rate of 12.5 litres per minute and a pressure of 30 kN/m² for at least 3 minutes from a distance of 3 metres.

The set is assembled from quality VCX productsfor which a declaration of conformity is available.

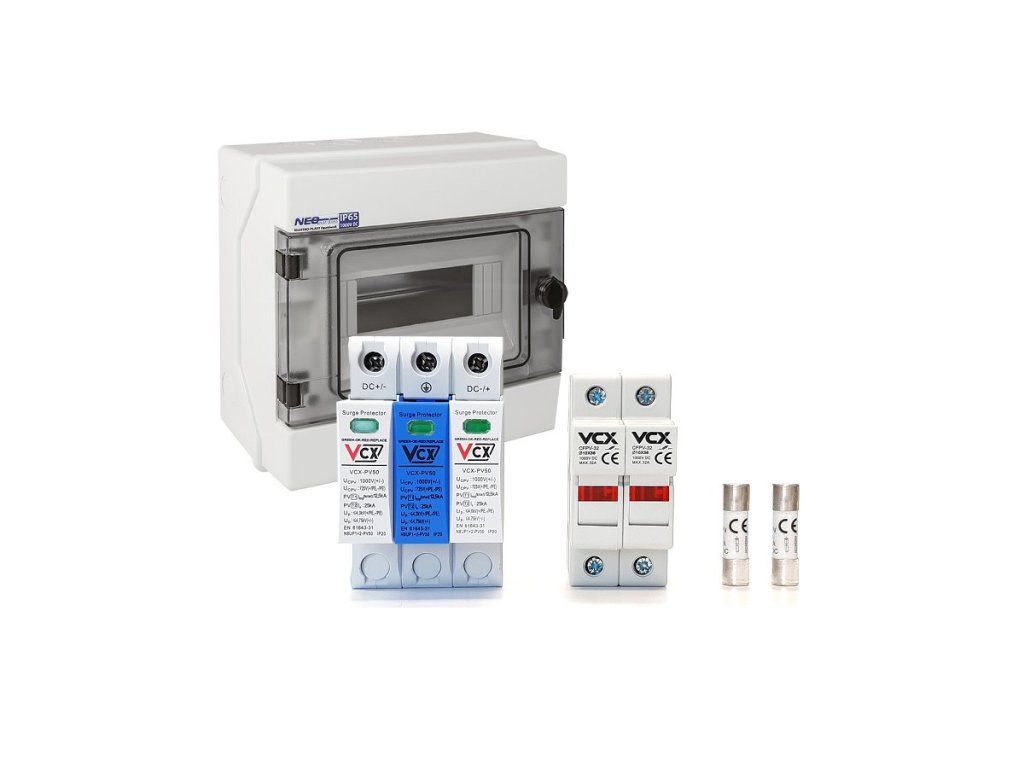

SET contains the following components:

1x Switchboard RH-8 NEO for photovoltaics

High quality hermetic switchboard Series RH "NEO" for alternating voltage (AC) a dedicated direct current (DC) voltage for photovoltaics.designed for domestic and industrial use with the possibility of installing overcurrent circuit breakers and electrical devices.

Degree of cover IP65the RH "NEO" enclosure is secured by two types of sealing, which consists of a seal inside the enclosure and the front of the lid, and an additional lid and glass seal. The front of the cabinet has door in transparent colour.

The door can be opened on the left or right side by turning the hinges to the appropriate side.

- Dimensions (L x W x H): 260 x 260 x 138 mm
- Weight: 1.27 kg
- Protection rating: IP65
- Operating voltage Unr: 230/400V
- Insulation voltage: 500VAC 1000VDC
- Rated current In AC: 100A
- Number of modules: 8
- Module height range: 68-75 (95) mm
- PE clamp: 9x (1.5-16)
- N clamp: 9x (1.5-16)
- Impact resistance: grade IK 07
- Halogen-free: yes
- Lock: no
- Class: II
- Number of TH35 rails: 1x
- Operating temperature: -25°C to +60°C

1x Surge protector VCX PV50 DC class T1T2 (B+C) 3P 1000V 12.5 kA GDT with gas spark gap

Technically advanced surge protector with gas spark gapacting as a class B and C surge protection. It is a cutting-edge and innovative protection solutionfrom lightning for photovoltaic installations.

The protector, which is made using special high flow varistorthe use of one or two varistors can therefore meet the standards that other manufacturers need to achieve multiple varistors. Using fewer varistors will reduce the size of the protector. Our protector is 18 mm/1 pole wide and the total width of the 3 poles is only 54 mm.

Surge protection is equipped with varistors (MOV) in the DC+ and DC- modules and a gas spark gap (GDT) in the PE modulewhich effectively eliminates the problem of varistor aging due to leakage current and operating current.

- Protection class: T1 T2
- Protective element: varistor-spark gap (MOV+GDT+MOV)
- Connection max: 35 mm2
- Rated operating voltage: Un 1000V DC
- Maximum operating voltage: Uc 1060V DC
- Test current: In(8/20) 25 kA
- Maximum current: Imax(8/20) 50 kA
- Pulse current: Iimp(10/350) 12.5 kA
- Voltage protection: <4.75 kV
- Storage temperature: -30/+70°C
- Operating temperature: -30/+50°C
- Protection rating: IP 20


1x Fuse disconnector VCX CFPV-32, 2P, 32A, 1kV with signalling, DIN rail mounted

The fuse disconnector serves as short circuit protection of photovoltaic strings. It is designed for cylindrical fuse links size 10 x 38 mm (not included in the disconnector);Optical LED fuse status indicator on the front side indicates a fuse failure.

- Fuse holder 10×38: max 32A 1000V DC
- Number of poles: 2P
- Clamp capacity: 0,5-10mm2
- Mounting method: rail TH-35
- Rated voltage (Un): 1000V DC
- Number of modules: 2
- Operation indicator: yes, LED

2x DC fuse VCX 1000V 10x38 mm for solar systems 16A /ST10PV 16A/

The fuse is used to protect photovoltaic installations and low voltage DC installations. The insert allows you to secure one chain of panels. The fuse is mounted in the MC4 holder or 10x38 fuse base.

- Cylindrical fuse insert 10×38, 15A 1000V DC
- Used to protect photovoltaic installations and low voltage DC installations
- Rated current: 16A
- Rated voltage: 1000V DC
- Features: delayed
- Operating temperature: -40 ~ +90 °C
- Complies with IEC60269
- Operating category gPV: protection in its entirety

Warning:

The equipment may only be installed by an authorized person - certificate from Decree No. 50/1978 Coll. (person with electrical qualification)) and an electrical installer of photovoltaic systems (26-014-H). Incorrect wiring and adjustment can cause electric shock, short circuit or overload and consequently lead to property fire. Claims due to improper wiring and system setup cannot be accepted.
