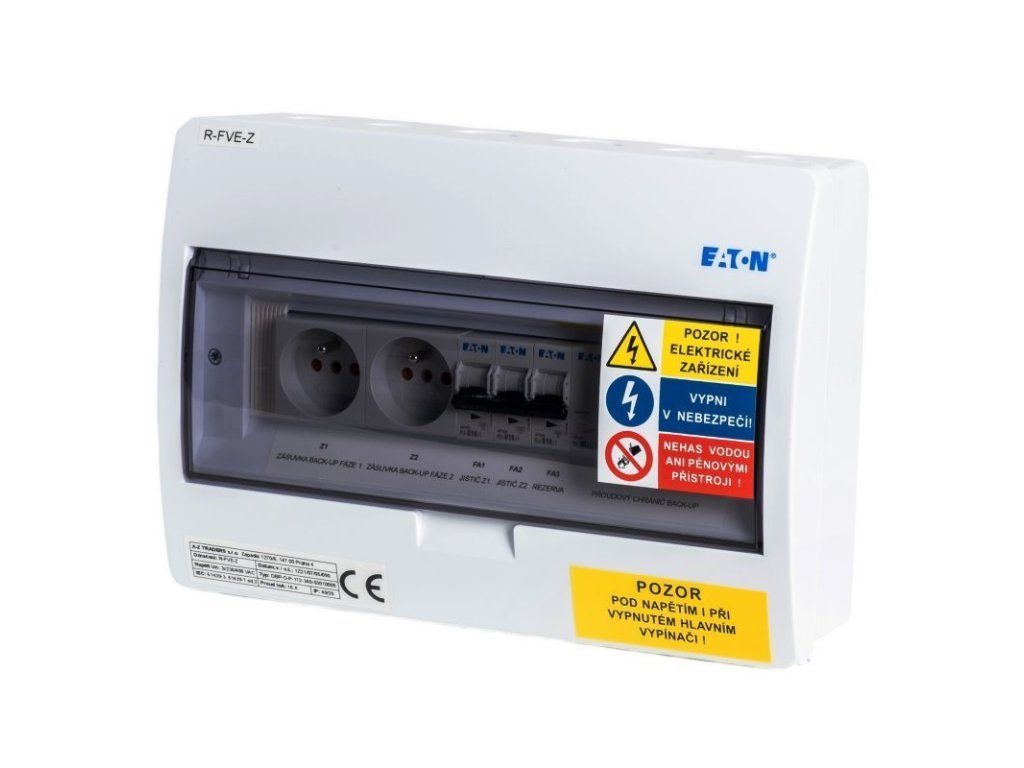

Switchboard R-FVE-Z3 (AC IP40/20) certified

Product detailed description

AC switchboard designed for wall mounting, protection class II, IP40/20, used to serve three-phase photovoltaic power plant. Ideal where it is not possible to use selected circuits for backup in an existing switchboard, but only sockets and a spare circuit breaker for selected appliances can be used. Its advantage is its compact size and the ability to be easily stacked with other AC distribution boards side by side or underneath. This allows installation even in space-constrained areas. The switchboard is equipped with a B16/1 circuit breaker for the protection of two sockets and one reserve for a separate appliance from the inverter backup and a type A current protector. Suitable for combination with switchboard R-FVE-DC1, R-FVE-DC2 for the DC part of the installation and switchboard R-FVE-M4, which is designed for the inverter input. - Meets the standard/requirements according to EN IEC 61439-3 and 61439-1 edition 2 - White plastic switchboard + plastic door made of smoked organic glass - Degree of protection IP40 & Mechanical resistance IK05 - N/PE terminal block included - 1 row, 12 modules, DIN rails - Rated voltage 400 V AC & Rated insulation voltage 400 V AC Component List: 1× Plasterboard switchboard, transparent plastic door, 1 row, 12 modules 1× Circuit breaker PL6, char B, 1-pole, Icn = 6 kA, In = 16 A 1× Circuit breaker Ir = 250 A, type A, 4-pole, I dn = 0.03 A, In = 40 A 2× DIN rail socket with shields and pin 1x Eaton BC-O-1/12-ECO, Switchboard for plasterboard, transparent plastic door, 1 row, 12 modules 1x Eaton PL6-B16/1, Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=16A 1x Eaton PF6-40/4/003-A, Circuit breaker Ir=250A, type A, 4-pole, Idn=0.03A, In=40A 2x Eaton Z-SD230-BS, DIN rail socket with shields and pin BASIC SPECIFICATIONS Purpose: for photovoltaics Fitted: yes Material: plastic Weight: 1.9 kg Dimensions: 303 × 212 × 98 mm Notice: The device may only be installed by an authorised person with an electrical qualification. Incorrect wiring/setting of the product and other components in the installation may lead to damage and irreversible damage and electric shock. Claims due to incorrect wiring/setting cannot be accepted. We are not responsible for improper wiring and any damage caused by it.
