Switchboard VCX PROFI V2 T1+T2 DC 1000V for 2 strings IP65 certified

Product detailed description

Switchboard VCX PROFI V2 T1+T2 DC 1000V for 2 strings IP65 certified

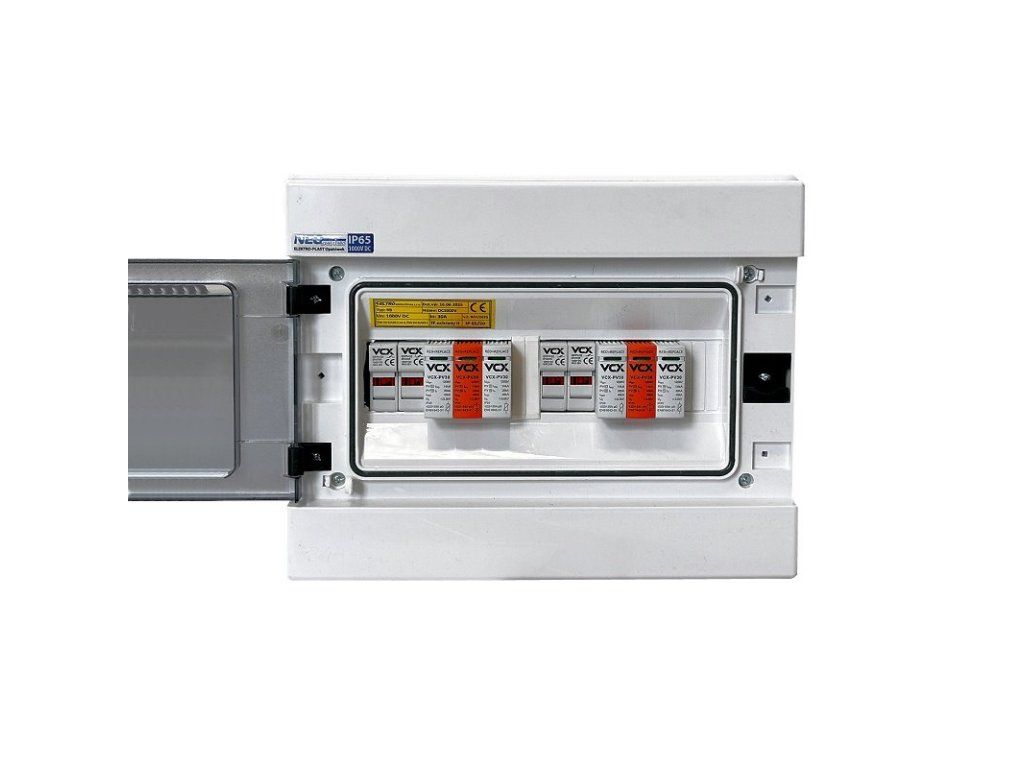

Certified complete DC wall switchboard for 2 strings with transparent lid for photovoltaics. Designed for a maximum voltage of 1000 V DC, it offers positions for 12 modules and a degree of protectionIP65.

New version 2 (V2)uses state-of-the-artvaristor technology(MOV)which allows fast and efficientsurge absorption.


The switchboard is equipped with from quality products of VCX and ElektroPlast:

- 2x VCX surge protector T1+T2
- 2x VCX fuse disconnector DC 2P
- 4x VCX DC fuse 10 x 38 gPV 16A / 1000V
- 2x cable gland PG-13.5 / IP68
- 2x cable gland PG-9 / IP68
- Weight of installed switchboard: 3 kg

Available fromiP65 protectionwhich means it iscompletely resistant to dust and splashing water from all angles at a flow rate of 12.5 litres per minute and a pressure of 30 kN/m² for at least 3 minutes from a distance of 3 metres. Designed for surface mounting.

Switchboard VCX T1+T2 V2 DC 1000V for 2 strings IP65complies with the relevant CSN standards.


You will receive the following documents with the switchboard:

-  Protocol for piecewise verification of the switchboard.
-  EC Declaration of Conformity.
-  Interface characteristics.
-  Wiring diagram.
-  Manual.

The certified enclosure contains the following components:

1x Switchboard RH-12 NEO for photovoltaics

High quality hermetic switchboard rH "NEO" seriesfor alternating voltage (AC) adedicated direct current (DC) voltage for photovoltaics. Designed for domestic and industrial use with the possibility of installing overcurrent circuit breakers and electrical devices.

Degree of coverageIP65 in the RH "NEO" cabinet, it is provided with two types of sealing, which consists of a seal inside the cabinet and the front of the lid, and an additional lid and glass seal. The front of the cabinet hasdoor in transparent colour.

The door can be opened on the left or right side by turning the hinges to the appropriate side.

- Dimensions (L x W x H): 260 x 330 x 138 mm
- Weight: 1.57 kg
- Protection rating: IP65
- Operating voltage Unr: 230/400V
- Insulation voltage: 500VAC 1000VDC
- Rated current In AC: 100A
- Number of modules: 12
- Module height range: 68-75 (95) mm
- PE clamp: 11x (1,5-16) + 2x (6-25)
- N clamp: 11x (1,5-16) + 2x (6-25)
- Impact resistance: grade IK 07
- Halogen-free: yes
- Lock: no
- Class: II
- Number of TH35 rails: 1x
- Operating temperature: -25°C to +60°C

2x Surge protector VCX PV30 DC class T1+T2 (B+C) 3P 1200V 14kA

Technically advanced surge protector of the highest quality designed for the protection of photovoltaic equipment operating as a surge protector of class T1+T2 (B+C);Equipped with visual operation indicator (green - protection, red - no protection). New version of DC varistor arrester class T1+T2 with voltage Ucpv increased to 1200V.

Protection usesstate-of-the-art varistor technology (MOV)which allows fast and effective surge absorption. Thanks to this, it achieves excellent levels of protection and extreme durability against overload. High flow varistor meets standards that other manufacturers achieve by using more varistorswhich means a more compact and efficient solution. Our protector is 18 mm/1 pole wide andthe total width of the 3 poles is only 54 mm.

- Protection class: T1+T2
- Protective element: varistor
- Connection max: 35mm2
- Rated operating voltage: Un 1200V DC (+PE,-PE)
- Rated impulse leakage current In (8/20 µs): 20 kA
- Maximum impact leakage current Imax (8/20 µs): 40 kA
- Lightning current Iimp (10/350 µs): 14 kA
- Voltage protection level: up to <4.5 kV
- Storage temperature: -30/+70°C
- Operating temperature: -30/+50°C
- Protection rating: IP 20


2x Fuse disconnector VCX CFPV-32, 2P, 32A, 1kV with LED signalling, DIN rail mounted

The fuse disconnector serves asshort circuit protection of photovoltaic strings. It is designed for cylindrical fuse links size 10 x 38 mm (not included in the disconnector).Optical LED fuse status indicatoron the front side indicates a fuse failure.

- Fuse holder 10×38: max 32A 1000V DC
- Number of poles: 2P
- Clamp capacity: 0,5-10mm2
- Mounting method: rail TH-35
- Rated voltage (Un): 1000V DC
- Number of modules: 2
- Operation indicator: yes, LED

4x DC fuse VCX 1000V 10x38 mm for solar systems 16A

The fuse is used to protect photovoltaic installations and low-voltage DC installations. The insert allows you to secure one chain of panels. The fuse is mounted in the MC4 holder or 10x38 fuse base.

- Cylindrical fuse insert 10×38, 15A 1000V DC
- Used to protect photovoltaic installations and low voltage DC installations
- Rated current: 16A
- Rated voltage: 1000V DC
- Features: delayed
- Operating temperature: -40 ~ +90 °C
- Complies with IEC60269
- Operating category gPV: protection in its entirety

2x Cable gland PG-13.5, IP68, 6-12mm, with nut, grey RAL 7035

PG-13.5 grommet for cable sizes 6 - 12 mm designed forto seal cable penetrations through electrical equipment enclosures.

Made of polyamide 6.6,weatherproof material - highly durable, flame retardant, halogen and phosphorus free. Free from silicone additives.

Special gland designprevents the cable from twisting inside and provides high tensile strength. Easy installation.

Protection IP 68 (protection class 10 bar according to EN60529).

Operating temperature: -40 °C to +85 °C (short-term up to +120 °C).

Colour: grey (RAL 7035).

The cable gland iscomplete with gasket and nut.

2x Cable gland PG-9, IP68, 4-8mm, with nut, grey RAL 7035

PG-9 grommet for cable sizes 4 - 8 mm designed forto seal cable penetrations through electrical equipment enclosures.

Made of polyamide 6.6,weatherproof material - highly durable, flame retardant, halogen and phosphorus free. Free from silicone additives.

Special gland designprevents the cable from twisting inside and provides high tensile strength. Easy installation.

Protection IP 68 (protection class 10 bar according to EN60529).

Operating temperature: -40 °C to +85 °C (short-term up to +120 °C).

Colour: grey (RAL 7035).

The cable gland iscomplete with gasket and nut.

Warning:

The installation of the switchboard may only be carried out by a person authorised to do so according to the Decree No. 50 paragraph 6 and 8 (new Government Decree 194/2022 Coll.). Incorrect wiring and adjustment can cause electric shock, short circuit or overload and consequently lead to property fire. Claims due to incorrect wiring and system settings cannot be accepted.
