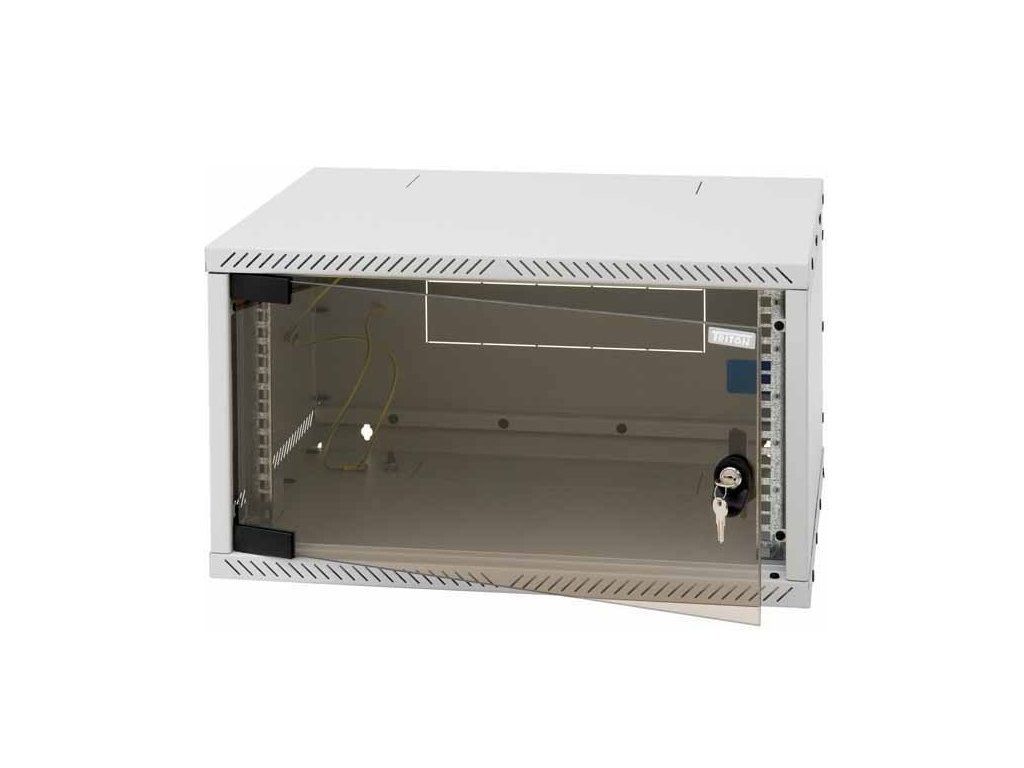

TRITON 19" one-piece 6U/400mm wall-mounted switchboard - FLAT PACK

Product detailed description

FLAT-PACK concept Reduces transport and storage costs. This, together with the unique design, contributes to an attractive price while maintaining all functional features. Installation Due to the unique design, assembly of the RXA is a matter of minutes and requires almost no tools (Thorx T25). Plastic plug-in mandrels are used to connect the individual parts. Doors These cabinets are only available with an all-glass door with lock. Adjustable vertical rails One pair of 19" vertical rails are step adjustable at the front of the cabinet. This facilitates the installation of equipment and the organisation of interconnecting cables. Breakaway plugs Cable entries are provided at the top, bottom and rear of the enclosure and are covered with knockout plugs. Flexible door opening A custom hinge system allows convenient access. Lock on the door Securely encloses the interior of the enclosure and protects the installed equipment. Package contents - AS4 cap 2x - Side panels (04U, 06U, 09U) 2x - Rear cover (04U, 06U, 09U) 1x - Vertical bar (04U, 06U, 09U) 2x - All-glass door (04U, 06U, 09U) 1x - Lock (Rubber washer 2x + full handle + assembled lock) 1x - Hinge (hinge pin - pair 1x) 2x - Grounding plate small 1x - Flat label "Titon" 1x - Nut M8: DIN 934 1x - Nut M5 with integrated fan washer 2x - Fan washer 8,4 Zn, DIN 6798 A/VZ 2x - Threaded screw DIN7500C Zn., cylindrical hl. THORX M5x12 4x - Plastic clamp 37x - Earthing cable 27 car connector: ZK-27k M5 (eye-connector) 4x - Key - front door 2x Technical parameters Physical characteristics Load capacity [kg]: 25 Degree of protection: IP30 Size: 19" Use: Indoor Number of "U" positions: 6 Weight [kg]: 13.3 Width [mm]: 550 Height [mm]: 320 Depth [mm]: 400 Door filling: Glass Demountable: Yes Colour: Grey General Switchboard type: Wall-mounted
