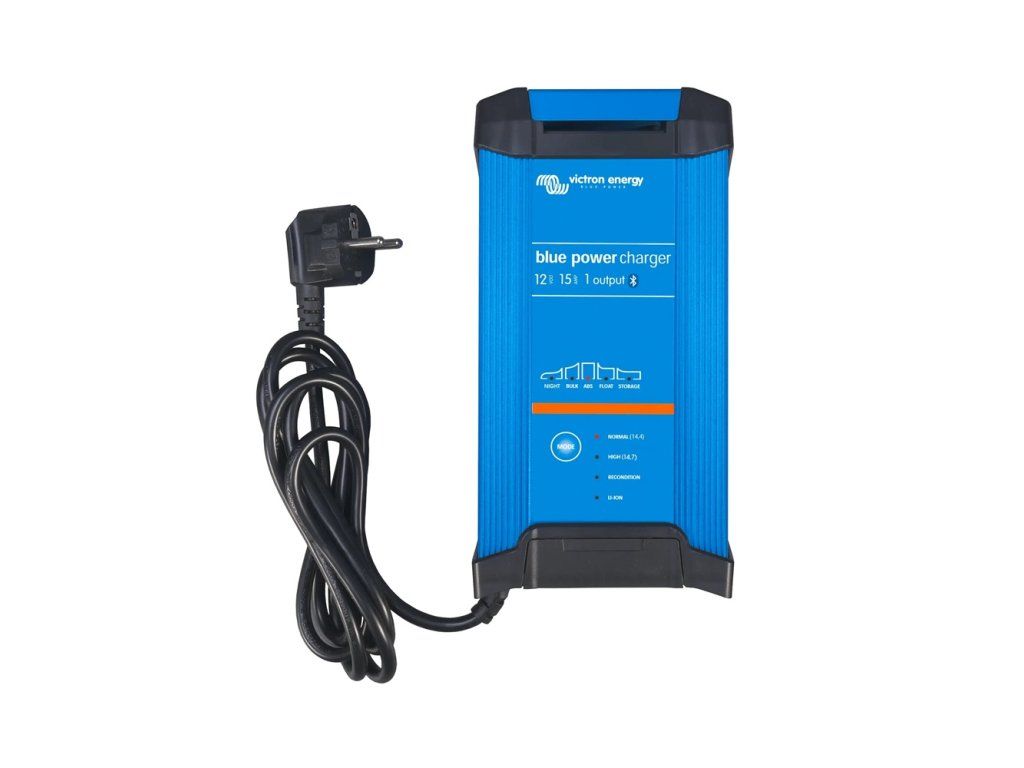

Victron Energy Smart Battery Charger BlueSmart 12V/15A (1) IP22

Product detailed description

Unmatched efficiency and low power consumption with built-in Bluetooth technology. Sophisticated microprocessor-controlled battery charger. Single output, active cooling. High efficiency With up to 94% efficiency, these chargers generate up to four times less heat, compared to the industry standard. And once the battery is fully charged, power consumption is reduced to 0.5W, about five to ten times less than the industry standard. Adaptive 6-step charging algorithm: test - bulk - absorb - recondition - float - store The charger is equipped with microprocessor controlled "adaptive" Battery management. The adaptive function automatically optimizes the charging process Storage mode: less maintenance and aging when the battery is not in use Storage mode - when the battery has not been discharged for 24 hours. In storage mode, the voltage is reduced to 2.2V/cell (13.2V on a 12V battery) to minimize gassing and positive plate corrosion. Once a week, the voltage is increased to the absorption level to "balance" the battery. This feature prevents electrolyte layering and sulfation. Also, charging Li-ion (LiFePO4) batteries LiFePO4 batteries are charged in a bulk - absorption - float algorithm. NIGHT and LOW settings When the NIGHT or LOW mode is set, the output current is reduced to a maximum of 25% of the rated output and the charger will be completely noiseless. NIGHT mode will end automatically after 8 hours.LOW mode can be manually exited. Overheating protection The output current will be reduced if the temperature rises above 50°C but will not damage the charger. Package contents 1x Victron charger Technical data: Input voltage: 180 - 265 V AC Frequency: 45 - 65 Hz Charging current: 15 A Charging current in night and LOW mode: 7.5 A No-load power consumption: 0.5 W Number of outputs (batteries to be charged): 1 Charging character: adaptive four-stage Absorption charging voltage: 14.4 V Maintenance charging voltage: 13.8 V Storage mode voltage: 13.2 V Protections: output reverse polarity, output short circuit, overheating Operating temperature range: - 40 to + 60 °C Humidity: maximum 98% Housing material: aluminium Colour: blue (RAL 5012) Battery output: terminal block without cables 230 V AC charger input: 1.5 m cable with conventional plug Degree of protection: IP 22 Plug type: CEE7/7 (Schuko) Weight: 1.3 kg Dimensions (height x width x length): 65 x 108 x 235 mm
