DAB.FEKABOX - 200 - automatic pumping stations

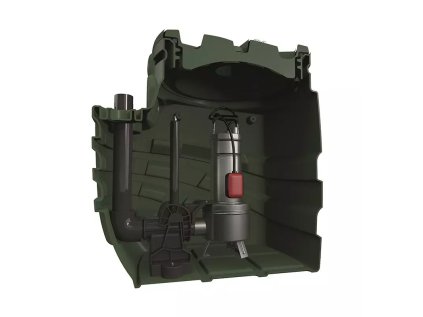

DAB.FEKABOX 200 automatic pumping stations are designed for the transport of wastewater from residential properties or underground areas such as garages and cellars where direct connection to the gravity sewer network is not feasible. These units are ideal for pumping groundwater, rainwater, wastewater, and water from rivers or ponds. The system includes a single-phase submersible sludge pump with float sensor, which must be ordered separately. The tank is constructed from LLDPE and is suitable for indoor installation on flat, solid floors or in external shafts. It is not suitable for mobile use and has a maximum load capacity of up to 100 kg.

Each unit is equipped with a 2" PP lifting device and anti-rotation bracket for FEKA VS pumps, a cable gland for single pump systems, and a 2" F x 1 x 1/4" M connection for FEKA 600 models. The working range is from 1 to 24 m³/h with a discharge capacity of up to 15 m. The maximum temperature of the liquid to be pumped is +45°C.

How to choose

• Assess the required flow rate and head to ensure the pumping station meets the system's hydraulic needs.
• Verify inlet, outlet, and vent connection compatibility with your existing piping system.
• Confirm the pump model and float sensor are compatible with the FEKABOX 200 tank.

Frequently asked questions

Can the FEKABOX 200 be used for mobile applications?
No, the FEKABOX 200 is not suitable for mobile use and is designed for fixed installation only.

What is the maximum temperature of the liquid that can be pumped?
The maximum temperature of the liquid is +45°C.
