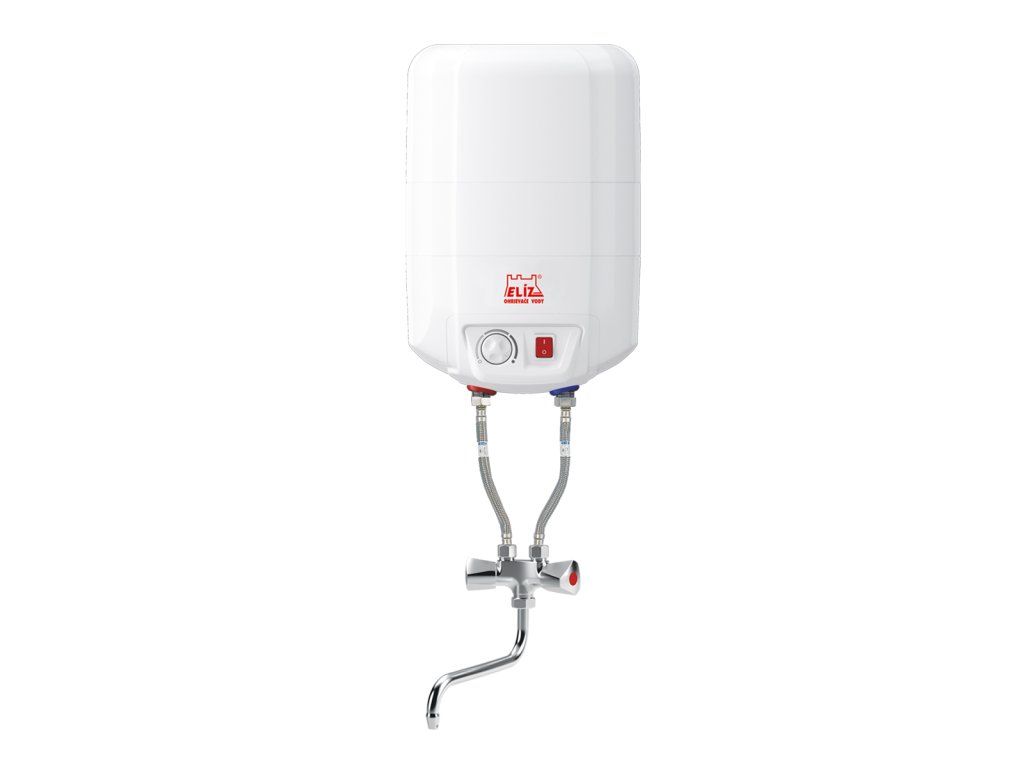

ELIZ EURO 10 ELZ_3281

Product detailed description

Non-pressurised water heaters are commonly used in domestic settings such as kitchens, utility rooms, and in holiday homes where central hot water systems are not available. These units are installed above a sink or basin and provide instant hot water to a single point of use. The ELIZ EURO 10 is suitable for installation in residential properties, cottages, and similar applications. It connects directly to a cold water supply and requires a non-pressurised tap mixer, which is included. The unit is designed to operate safely with the provided mixer only.

Installers should consider the electrical requirements, including a dedicated circuit with appropriate fuse rating and compliance with local wiring regulations. The compact dimensions allow for wall mounting above standard sinks, ensuring minimal space usage while maintaining accessibility for maintenance and adjustments. The IP24 rating ensures basic protection against splashing water, making it suitable for use in wet environments like kitchens.

Technical parameters

Type	EURO 10
Power	1500 W
Voltage	230 V
Fusing	10 A
Electrical protection	IP 24
Water heating time from 12 to 65 °C	0.4 hour
Heat losses	0.36 kWh/24h
Water connection	1/2 inch
Wall mounting	Yes
Thermal fuse	Yes
Weight	7.2 kg
Product dimensions	285 x 430 x 288 mm
Tank warranty	3 years
Product warranty	2 years
EAN	3800035730104
Code	ELZ_3281
Brand	ELIZ

The 1500 W power rating and 230 V supply voltage determine the speed and efficiency of water heating. A 10 A fuse provides electrical protection, while the IP24 rating ensures basic water resistance. The 0.4-hour heating time from 12 to 65°C indicates rapid response to demand. The 0.36 kWh/24h heat loss figure helps assess energy efficiency during standby periods. The 1/2 inch water connection ensures compatibility with standard plumbing fittings. The 7.2 kg weight and 285 x 430 x 288 mm dimensions allow for secure wall mounting without excessive strain on supports.

Installation and connection

Installation begins with selecting a suitable location above a sink or basin where the heater can be mounted securely to the wall. A 1/2 inch female thread is provided for connecting to a cold water supply line. A non-pressurised tap mixer must be installed at the point of use, and the heater must only be operated with the supplied mixer. Ensure all electrical connections are made using a dedicated circuit with a 10 A fuse. Verify the IP24 rating of the enclosure to ensure proper water resistance. Common mistakes include using an incompatible mixer or neglecting to secure the unit firmly to the wall, which could lead to leaks or instability. Always check for tight seals at all joints and confirm that the heater is level before finalising installation.

Compatibility and accessories

The ELIZ EURO 10 is compatible with any standard cold water supply system and requires the supplied non-pressurised tap mixer for operation. Additional components such as wall mounting brackets, sealing gaskets, and electrical wiring are typically part of standard plumbing supplies and may need to be sourced separately. No other related products are available for this model.

Technical background for designers

The ELIZ EURO 10 operates by heating water stored in a 10 L steel tank lined with zirconium glaze to prevent corrosion. A built-in thermostat allows temperature adjustment between 7 and 75°C, ensuring user comfort and safety. The unit includes thermal overload protection to prevent overheating and a frost protection setting to prevent freezing damage. The tank is insulated with high-density, non-Freon polyurethane foam, 30 mm thick, reducing heat loss to 0.36 kWh per 24 hours. This insulation contributes to low operating costs and energy efficiency. The unit integrates into non-pressurised systems, relying on gravity-fed flow through the mixer. The design ensures long-term reliability when installed according to specifications and maintained regularly.

Service and operation

Regular maintenance includes checking the integrity of the tank lining, verifying the function of the thermostat and thermal protection, and inspecting all electrical and plumbing connections for leaks or wear. The 3-year warranty on the tank and 2-year warranty on the complete unit reflect the expected service life under normal conditions. No scheduled service intervals are specified, but periodic inspections are recommended to ensure continued performance and safety. If the heater shows signs of malfunction, such as irregular heating or unusual noises, it should be disconnected and inspected by a qualified technician.

Frequently asked questions

Can the ELIZ EURO 10 be used with a pressurised water system?
No. The heater is designed for non-pressurised operation and must be used with the supplied non-pressurised tap mixer only.

What is the minimum temperature setting for frost protection?
The thermostat has a minimum setting of 7°C, which acts as frost protection to prevent freezing inside the tank.

Is it possible to adjust the maximum temperature limit?
Yes. The thermostat allows adjustment up to 75°C, which can be set according to the user’s needs and safety requirements.

Can the heater be installed in a bathroom?
It is not recommended. The IP24 rating provides basic splash protection, but the heater is intended for use in kitchens or utility areas, not in high-moisture environments like bathrooms.
