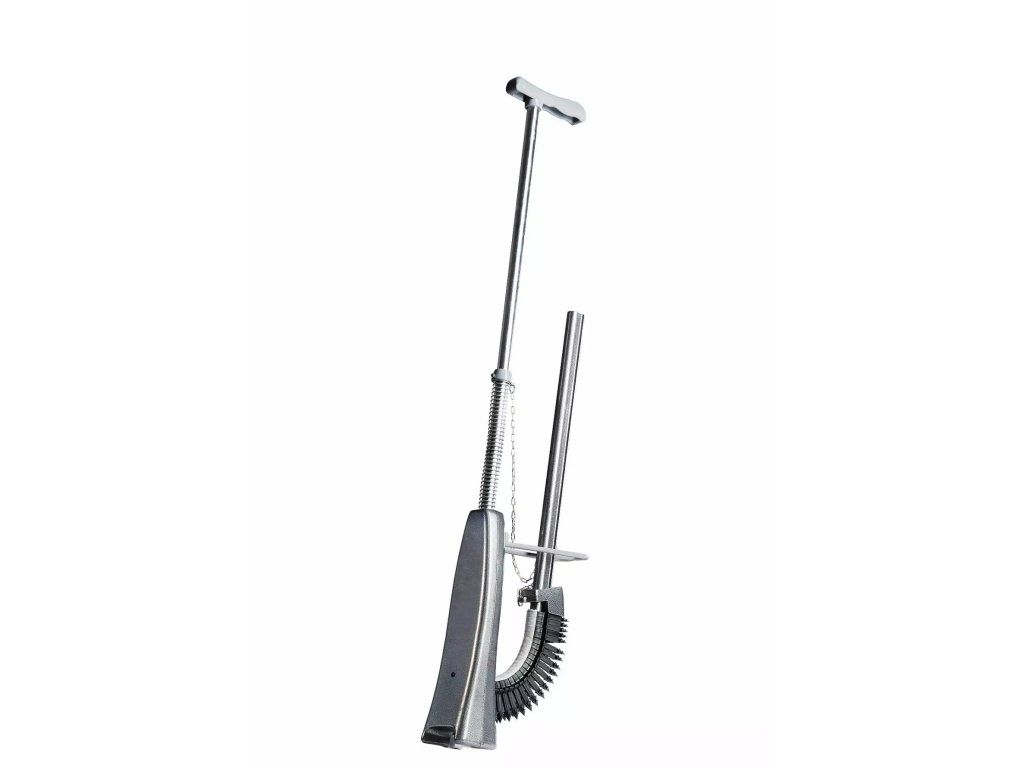

Fixing tool - for IVAR.PPA50 IVAR.TACKER

Product detailed description

Underfloor heating systems are commonly installed in residential and commercial buildings to provide even and efficient heat distribution. These systems often use flexible PEX or ALPEX pipes embedded in insulation boards. During installation, it is essential to secure the pipes in a precise pattern to ensure uniform heat output and prevent movement during the curing of the screed or floor covering. The IVAR IVATAC50 fixing tool is designed for this purpose, offering a reliable method to fasten pipes to the insulation substrate without damaging the pipe material or compromising the integrity of the system.

Installers working with underfloor heating systems must ensure that the pipe layout is stable and free from kinks or twists. This is particularly important in large floor areas where pipe movement can lead to uneven heat distribution or system failure. The IVAR IVATAC50 is used in conjunction with IVAR.PPA 50 fixing clips to hold the pipes in place during the installation process and until the system is fully set in the floor structure.

Technical parameters

Code	IVATAC50
Brand	IVAR

The IVAR IVATAC50 is designed to work with IVAR.PPA 50 fixing clips, which are recommended for use with ALPEX or PEX pipes. The tool ensures that the clips are applied correctly and securely, maintaining the intended spacing and alignment of the pipes. This compatibility is essential for the long-term performance of the underfloor heating system.

Installation and connection

The IVAR IVATAC50 is used during the mechanical fixing phase of underfloor heating installation. The process involves placing the PEX or ALPEX pipe on the insulation board and positioning the IVAR.PPA 50 clip at regular intervals. The fixing tool is then used to press the clip into the insulation board, securing the pipe in place. It is important to ensure that the clips are evenly spaced and that the pipe is not over-bent or twisted during this process. Common installation mistakes include using incorrect clip spacing, which can lead to uneven heat distribution, or applying the clips too tightly, which may damage the pipe insulation.

Compatibility and accessories

The IVAR IVATAC50 is specifically designed for use with IVAR.PPA 50 fixing clips. These clips are essential for securing ALPEX or PEX pipes to flat insulation boards. When planning an underfloor heating installation, it is necessary to order both the fixing tool and the required quantity of clips. The tool is not compatible with other fixing systems or clip types. Installers should ensure that all accessories are sourced from the same manufacturer to maintain system integrity and performance.

Technical background for designers

The IVAR IVATAC50 operates by applying mechanical force to press the IVAR.PPA 50 clip into the insulation board, creating a secure and stable fixing point for the pipe. The tool is constructed from durable materials to withstand repeated use during installation. The IVAR.PPA 50 clip is made from a thermoplastic material that is compatible with both ALPEX and PEX pipe types. This ensures that the fixing method does not compromise the pipe's thermal or mechanical properties. The integration of the fixing system into the underfloor heating layout is critical for maintaining the intended heat distribution pattern and system efficiency. The spacing and alignment of the clips directly affect the long-term performance of the system.

Service and operation

Once installed, the IVAR IVATAC50 fixing system requires no further maintenance. However, during the installation phase, it is important to check that the clips are correctly positioned and that the pipe is not damaged during the fixing process. Any misalignment or damage at this stage can affect the system's performance. There are no scheduled service intervals for this tool, as it is a one-time-use installation aid.

Frequently asked questions

Can the IVAR IVATAC50 be used with other clip types?
No, the IVAR IVATAC50 is specifically designed for IVAR.PPA 50 clips and is not compatible with other fixing systems.

Is the IVAR IVATAC50 suitable for both ALPEX and PEX pipes?
Yes, the tool is used to secure both ALPEX and PEX pipes to insulation boards using the recommended IVAR.PPA 50 clips.

Can the IVAR IVATAC50 be reused after installation?
No, the tool is a single-use installation aid and is not intended for repeated use.

What is the recommended clip spacing when using the IVAR IVATAC50?
Clip spacing should follow the manufacturer's technical data sheet to ensure even heat distribution and system stability.
