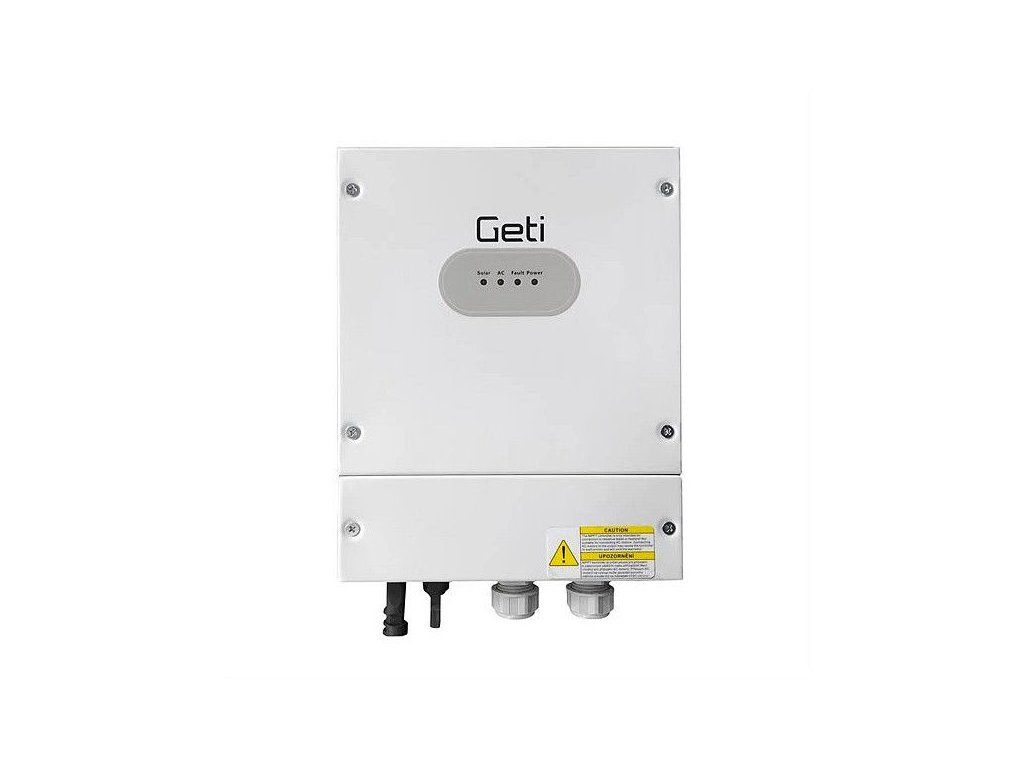

Solar inverter GETI GWH01 4000W MPPT for PV water heating

Product detailed description

The GETI GWH01 solar inverter is particularly suitable for use in photovoltaic water heating systems using the NZÚ and NZÚ light subsidy programme.

Save costs and heat water with solar energy today. Thanks to the GETI GWH01 solar inverter with automatic grid switching, you can significantly reduce your hot water heating costs. The NZU Light subsidy will then cover up to 100% of the cost of the installed system.

The GETI GWH01 4000W MPPT inverter developed for PV water heating allows the direct use of PV panel systems to power resistance heating devices such as electric boilers, heaters, heating mats, water heating, etc. The inverter is also equipped with an AC input that allows the inverter to be connected to the mains voltage and heat water even when solar radiation is insufficient for heating.

Note: The GETI GWH inverter is only suitable for resistive loads with a bimetal thermostat (not suitable for electronically controlled thermostats!)
The inverter output (L, N) must not be connected to the mains or earth!

The system is simple, requiring only the connection of an appropriate number of photovoltaic panels with a maximum output of 4000 W with an operating voltage of 160 ~ 350V DC, a mains voltage of 230C AC and a connection to a resistive load such as a heating coil, electric boiler, electric radiator or underfloor heating and circuit breakers.

The DC current generated in the panels, which cannot be fed directly to the heating devices, is converted in the inverter into AC current that can be used to power the heating devices.

The maximum output of the system is 4000 W. The inverter has a priority input from the photovoltaic panels and if this voltage drops below 120V, the water heating will be supplied from the 230V AC mains voltage.

Product parameters:
- solar inverter for hot water heating with resistive load (heating coil, boiler)
- automatic switching between networks (PV / 230V AC network)
- operating modes: only PV as an island system or PV + grid
- quiet operation thanks to passive cooling
- efficient monitoring of maximum power on panels using MPPT
- high efficiency > 99%

The GETI GWH01 inverter is equipped with an LED panel that informs the user about the current status of the inverter. :
- indication of water heating from PV panels
- indication of water heating from 230V AC mains
- comparison indication
- error status indication

Technical parameters:
- input voltage (VDC): 160 to 350 (VDC)
- input voltage (VAC): 230 V AC
- output voltage [VAC]: 0-260 V AC (VAC)
- maximum power: 4000 W
- type of load:resistive with bimetal thermostat (not suitable for electronically controlled thermostats!)
- the value of the resistive load must not be less than 13 Ohm
- mPPT: YES
- pV panel connection: series or series-parallel
- priority input: PV panels
- backup input: mains 230V AC
- working temperature: -25 °C ~ + 55 °C
- efficiency: > 99%
- cooling: passive
- input short circuit protection
- overheating protection
- input connection of PV panels: MC4 connectors
- input connection 230V AC: screw terminal
- output connection 230V AC: screw terminal
- material: aluminium + metal
- degree of protection: IP65
- dimensions d x w x h [mm]: 250 x 155 x 80 mm
- weight: 3 kg


This product requires professional installation.

Package contents: 1pc Solar Inverter GETI GWH01 4000W
