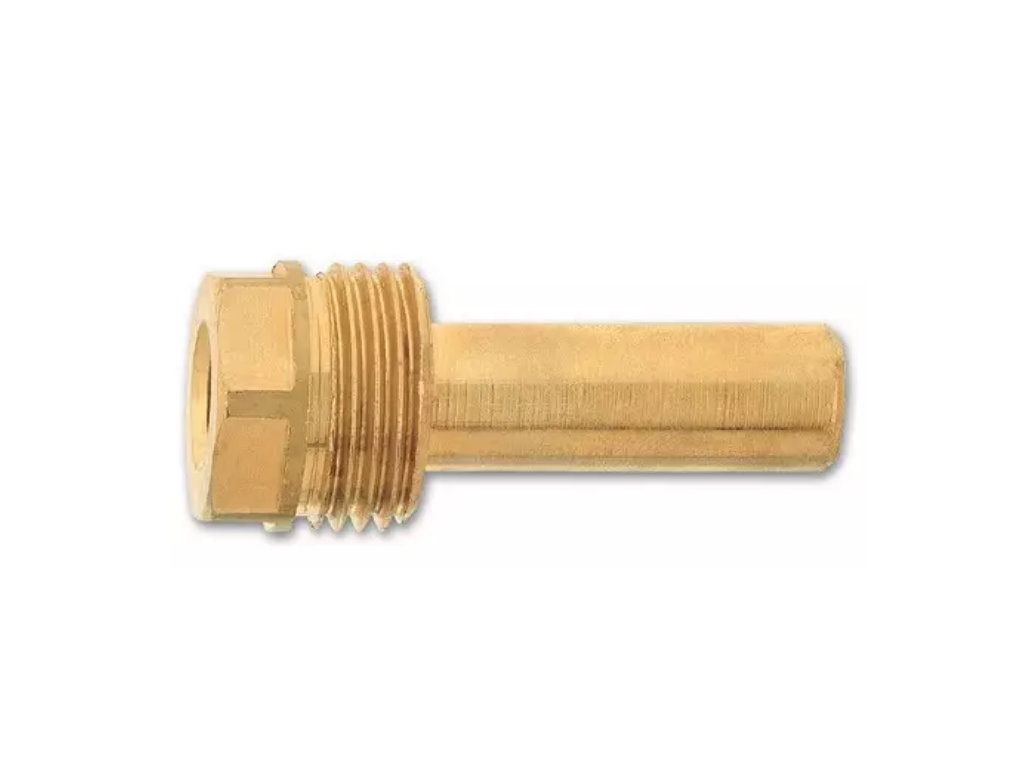

Sump, 1/2", L 300 mm

Product detailed description

Sump fittings are essential components in heating and plumbing systems where accurate temperature measurement is required. Installers working on residential and commercial heating systems, including underfloor heating, radiators, and boiler circuits, often integrate these devices to monitor system performance. The sump provides a secure and stable housing for a thermometer, ensuring reliable readings over time. Its compact design allows for installation in tight spaces, such as behind panels or within wall cavities, without compromising accessibility for maintenance.

In multi-zone heating systems, sumps enable individual temperature monitoring of different circuits. This is particularly useful in large buildings or industrial applications where precise control is necessary. The sump’s robust construction and standardised connection ensure it can be integrated into a wide range of systems without requiring custom modifications. Proper installation ensures the thermometer remains protected from physical damage and thermal stress, contributing to long-term operational efficiency.

Technical parameters

Installation and connection

Installation begins by selecting a suitable location along the pipe where temperature readings are needed. The sump is then threaded onto the pipe using a 1/2 inch external thread connection. A sealing compound or thread tape should be applied to prevent leaks. Once installed, the thermometer probe is inserted into the sump and secured with the locking screw provided. It is important to verify that the thread is fully engaged and that the probe is seated correctly to avoid measurement inaccuracies or mechanical stress on the connection.

Common installation errors include insufficient tightening of the locking screw, which can allow the probe to shift, and failure to align the sump with the flow direction, potentially causing turbulence or inaccurate readings. Installers should also ensure that the sump is not obstructed by insulation or other materials that could interfere with heat transfer to the probe.

Compatibility and accessories

This sump is compatible with standard thermometer probes that have an internal diameter of 9.5 mm and a 1/2 inch external thread. It is intended for use with copper or steel pipes in heating and plumbing systems. When ordering, ensure that the thermometer probe is available separately and matches the required specifications. No additional accessories are required for basic installation, though sealing tape or compound may be needed for leak prevention.

Technical background for designers

The sump operates as a passive housing for a thermometer probe, allowing direct contact with the fluid or air being measured. The brass CW617N material offers good corrosion resistance and thermal conductivity, making it suitable for both wet and dry applications. Its integration into the system depends on the positioning relative to the flow and the need for representative temperature readings. The material’s properties ensure minimal thermal lag between the probe and the surrounding medium, enhancing accuracy. Long-term efficiency is influenced by the stability of the installation and the absence of mechanical stress on the probe.

Service and operation

During normal operation, the sump requires no active maintenance. However, periodic visual inspections should be conducted to check for signs of corrosion, leakage, or mechanical damage. If the thermometer probe is removed or replaced, the locking screw should be re-tightened to maintain a secure fit. There are no defined service intervals for this component unless specified in the system’s overall maintenance plan.

Frequently asked questions

Can the sump be used with copper pipes?
Yes, the sump has a 1/2 inch external thread and is suitable for copper pipes with matching internal threads.

Is the internal diameter sufficient for most thermometer probes?
Yes, the 9.5 mm internal diameter accommodates standard thermometer probes designed for this application.

What sealing method is recommended for the thread?
A thread sealing compound or PTFE tape is recommended to ensure a leak-free connection.

Can the sump be used in vertical pipe runs?
Yes, provided the thermometer probe is inserted correctly and the locking screw is fully engaged to prevent movement.
