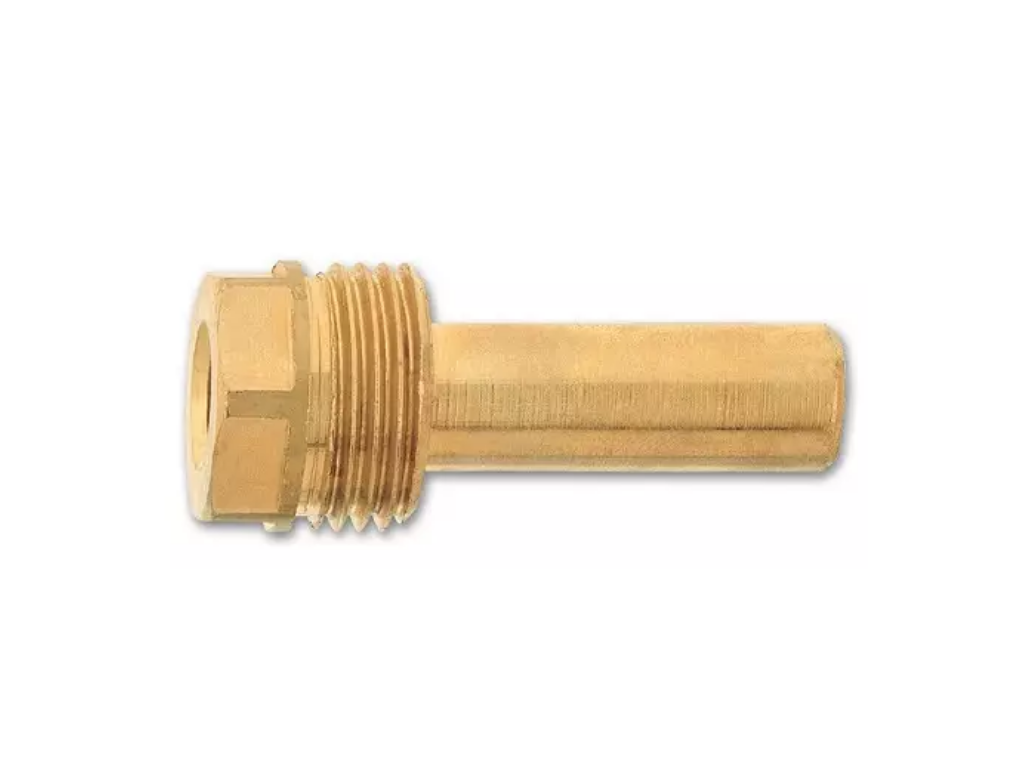

Sump, 1/2", L 50 mm

Product detailed description

Sumps are essential components in heating systems where temperature monitoring is required. They are commonly used in residential and commercial buildings to facilitate the installation of thermometers in pipelines. Installers and service technicians frequently encounter these components in central heating systems, where accurate temperature readings are crucial for system performance and efficiency. The sump allows for secure and stable thermometer installation without disrupting the flow of the system.

Proper selection and installation of a sump ensure that the thermometer can be inserted and removed without damaging the system. The sump must be compatible with the existing piping and fittings, and its dimensions must align with the requirements of the thermometer being used. In systems where frequent temperature checks are necessary, the sump provides a reliable and accessible solution for monitoring.

Technical parameters

Material	Brass CW617N
Weight	0.044 kg
Code	ACGUOV050
Brand	IVAR

Installation and connection

To install the sump, ensure the pipeline is depressurised and the connection is clean. The external 1/2 inch thread must be matched with the corresponding internal thread in the system. Use a sealing compound or PTFE tape to prevent leaks. Check that the internal diameter of 9.5 mm is suitable for the thermometer being used. Common installation mistakes include using an incorrect thread type or failing to align the sump properly with the thermometer. Always verify the connection before restoring system pressure.

Compatibility and accessories

This sump is designed for use with thermometers that have a 9.5 mm diameter probe. It is compatible with standard heating systems that use 1/2 inch threaded connections. When installing, ensure that the thermometer is compatible with the sump’s internal dimensions. No additional accessories are required for basic installation.

Technical background for designers

The sump functions as a housing for a thermometer probe, allowing it to be inserted into the system without obstructing flow. The CW617N brass material offers good corrosion resistance and mechanical strength, making it suitable for use in heating systems with water or glycol-based media. The external 1/2 inch thread ensures compatibility with standard piping systems. The length of 50 mm provides sufficient depth for the thermometer to obtain an accurate reading while remaining accessible for maintenance. The material and design contribute to the longevity and reliability of the component within the system.

Service and operation

During operation, the sump requires minimal maintenance. Periodically check for signs of corrosion or leakage at the connection. If the thermometer is removed for calibration or replacement, ensure the sump remains clean and undamaged. There are no specific service intervals required for this component unless specified in the system's maintenance plan.

Frequently asked questions

Can this sump be used with a thermometer of a different diameter?
No, the internal diameter is fixed at 9.5 mm. The thermometer probe must match this size for proper fit and function.

Is it possible to install this sump in a vertical pipeline?
Yes, the sump can be installed in any orientation as long as the connection is secure and the thermometer can be inserted and removed without obstruction.

What type of sealing material is recommended for the thread?
A sealing compound or PTFE tape is suitable for the 1/2 inch thread to ensure a leak-free connection.

Can this sump be used in glycol-based systems?
Yes, the CW617N brass material is compatible with glycol-based media and provides adequate corrosion resistance for such applications.
