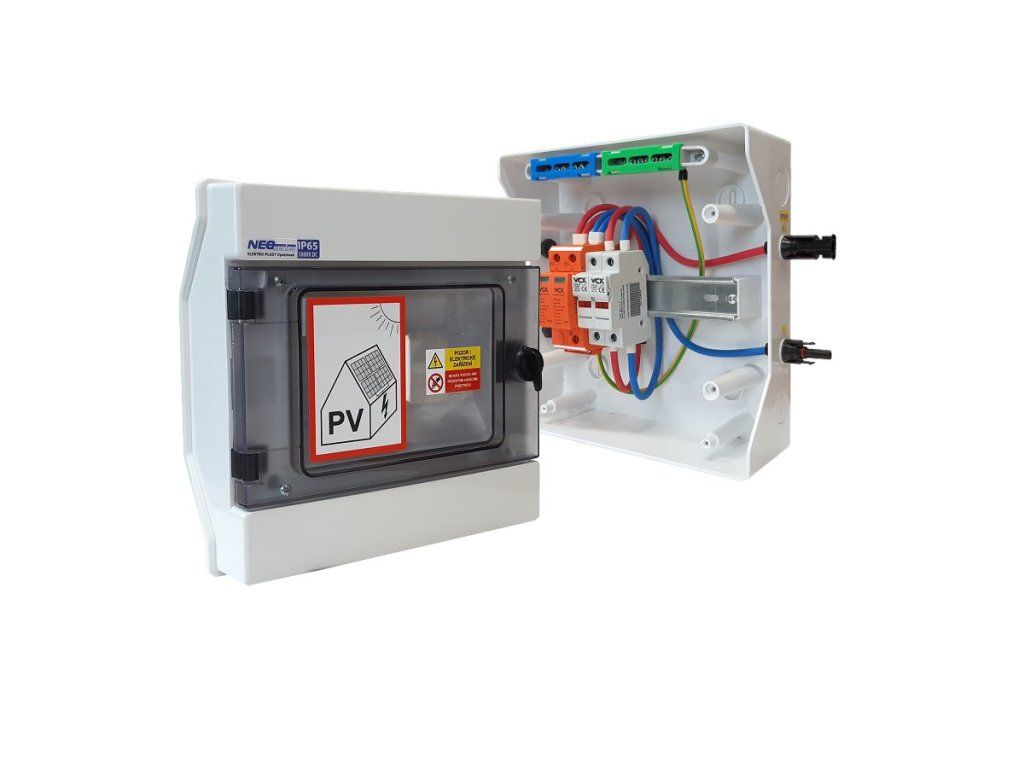

Switchboard VCX PROFI T2 (C) DC 1000V for 1 string IP65 certified

Product detailed description

Switchboard VCX PROFI T2 (C) DC 1000V for 1 string IP65 certified

Certified complete DC wall switchboard for 1 string with transparent lid for photovoltaics. It is designed for a maximum voltage of 1000 V DC, offers positions for 8 modules and a degree of protection IP65. Ideal for use with solar water heating controllers.

The distributor is already equipped with MC4 panel connectors for input from PV panels (string) and output for connection to inverter, which will make your work much easier during assembly.


The switchboard is equipped with from quality products of the brand VCX and ElektroPlast:

- 1x VCX surge protector T2 (C)
- 1x VCX fuse disconnector DC 2P
- 2x VCX DC fuse 10 x 38 gPV 15A / 1000V
- 4x MC4 panel connector


It has iP65 protectionwhich means it is completely resistant to dust and splashing water from all anglesat a flow rate of 12.5 litres per minute and a pressure of 30 kN/m² for at least 3 minutes from a distance of 3 metres. Designed for surface mounting.

Switchboard VCX T2 (C) 1000V for 1 string IP65 complies with the relevant CSN standards.

You will receive the following documents with the switchboard:

-  Protocol for piecewise verification of the switchboard.
-  EC Declaration of Conformity.
-  Interface characteristics.
-  Wiring diagram.
-  Manual.

The certified enclosure contains the following components:

1x Switchboard RH-8 NEO for photovoltaics

High quality hermetic switchboard Series RH "NEO" for alternating voltage (AC) a dedicated direct current (DC) voltage for photovoltaics.designed for domestic and industrial use with the possibility of installing overcurrent circuit breakers and electrical devices.

Degree of cover IP65the RH "NEO" enclosure is secured by two types of sealing, which consists of a seal inside the enclosure and the front of the lid, and an additional lid and glass seal. The front of the cabinet has door in transparent colour.

The door can be opened on the left or right side by turning the hinges to the appropriate side.

- Dimensions (L x W x H): 260 x 260 x 138 mm
- Weight: 1.27 kg
- Protection rating: IP65
- Operating voltage Unr: 230/400V
- Insulation voltage: 500VAC 1000VDC
- Rated current In AC: 100A
- Number of modules: 8
- Module height range: 68-75 (95) mm
- PE clamp: 9x (1.5-16)
- N clamp: 9x (1.5-16)
- Impact resistance: grade IK 07
- Halogen-free: yes
- Lock: no
- Class: II
- Number of TH35 rails: 1x
- Operating temperature: -25°C to +60°C

1x Surge protector VCX T2-DC (PV385) DC class T2 (C) 2P 1000V Professional Plus

Technically very advanced surge protector of the highest quality designed for the protection of photovoltaic equipment operating as a class C surge protector. Equipped with;visual indicator of operation (green - protection, red - no protection).

The new T2-DC model has better internal processing (meets the strictest criteria) and thus fully replaces the original PV375 model, which has become a sales hit and can be found on many photovoltaic installations.

VCX T2-DC (PV385) 1000V class T2 - protector, which is made using high quality high flow varistor (MOV). The use of a single varistor therefore meets standards that other manufacturers must meet by using multiple varistors.

The protector is only 18 mm wide at 1 pole and the total width of the 2 poles is only 36 mm.

- Protection class: T2
- Protective element: varistor
- Connection max: 35mm2
- Rated operating voltage: Un 1000V DC
- Rated impulse leakage current In (8/20 µs): 20 kA
- Maximum impact leakage current Imax (8/20 µs): 40 kA
- Voltage protection level: up to <4.0 kV
- Storage temperature: -30/+70°C
- Operating temperature: -30/+50°C
- Protection rating: IP 20

1x Fuse disconnector VCX CFPV-32, 2P, 32A, 1kV with LED signalling, DIN rail mounted

The fuse disconnector serves as short circuit protection of photovoltaic strings. It is designed for cylindrical fuse links size 10 x 38 mm (not included in the disconnector);Optical LED fuse status indicator on the front side indicates a fuse failure.

- Fuse holder 10×38: max 32A 1000V DC
- Number of poles: 2P
- Clamp capacity: 0,5-10mm2
- Mounting method: rail TH-35
- Rated voltage (Un): 1000V DC
- Number of modules: 2
- Operation indicator: yes, LED

2x DC fuse VCX 1000V 10x38 mm for solar systems 15A

The fuse is used to protect photovoltaic installations and low voltage DC installations. The insert allows you to secure one chain of panels. The fuse is mounted in the MC4 holder or 10x38 fuse base.

- Cylindrical fuse insert 10×38, 15A 1000V DC
- Used to protect photovoltaic installations and low voltage DC installations
- Rated current: 15A
- Rated voltage: 1000V DC
- Features: delayed
- Operating temperature: -40 ~ +90 °C
- Complies with IEC60269
- Operating category gPV: protection in its entirety

4x MC4 connector for solar panels, per panel - Female and Male

High quality MC4 male and MC4 female connectors for panel, rack mounting. The connectors are used to connect photovoltaic panels. They are compatible with conductors with a cross section of 2.5-6mm².

The materials used and the quality of workmanship guarantee a very long product life.

Protection class IP67 ensures waterproof and completely dustproof. The connectors are also resistant to UV radiation and adverse weather conditions.

- Current: 32A
- Power supply: 1000V DC
- Number of wires: 1
- Contact material: copper (100%) tin plated
- UV resistance: yes
- Housing flammability standard UL94: V0
- Housing material: PC/PPO
- Connection type: clamp
- Wire cross-section: 2.5-6 mm²
- Degree of protection: IP67
- Operating temperature: -40°C to +90°C

Warning:

The installation of the switchboard may only be carried out by a person authorised to do so according to the Decree No. 50 paragraph 6 and 8 (new Government Decree 194/2022 Coll.). Incorrect wiring and adjustment can cause electric shock, short circuit or overload and consequently lead to property fire. Claims due to incorrect wiring and system settings cannot be accepted.
