ATMOS DC 32 GS
Code: DC32GSProduct detailed description

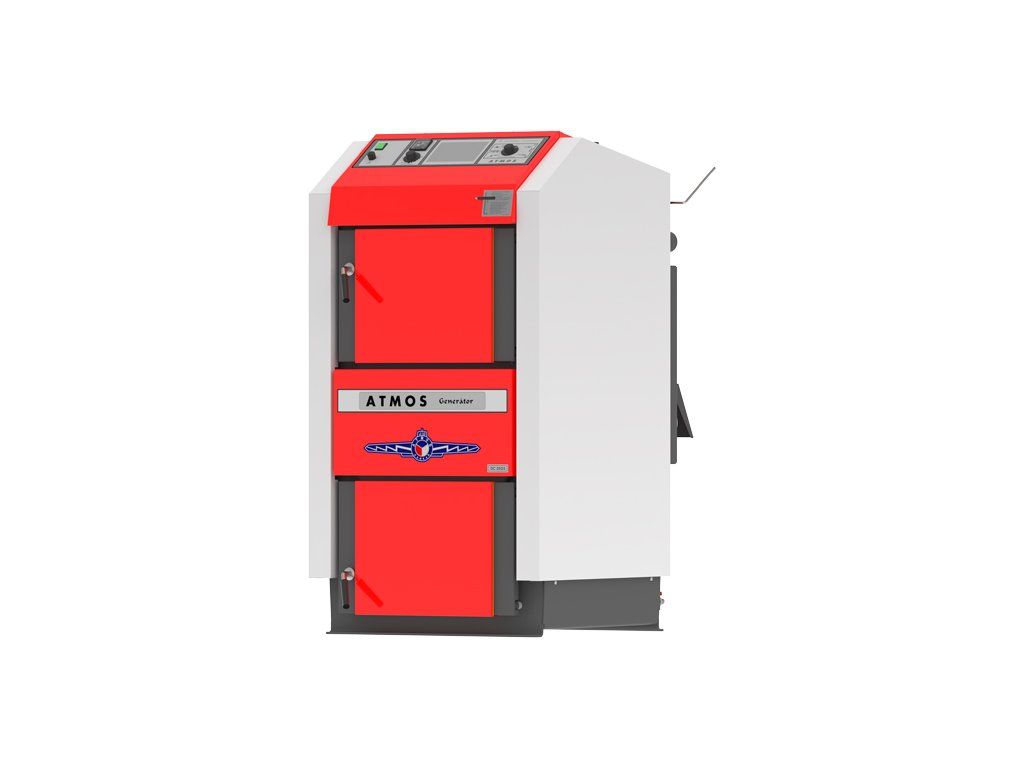

The Atmos DC32GS is a high-efficiency wood-fired generator stove suitable for residential and commercial heating applications. It is commonly used in systems where a consistent and reliable heat source is required, such as in large homes, workshops, and agricultural buildings. The stove is designed for integration into hydronic heating systems, providing a stable thermal output through its generator combustion principle. Installers should consider the required chimney draft and minimum return water temperature to ensure optimal performance.
As a generator stove, the DC32GS is ideal for installations where long burn times and high thermal efficiency are required. It is particularly suited for use with larger fuel logs and is designed to operate with a minimum of manual intervention. The system is intended for use with seasoned wood of specified dimensions and moisture content to ensure clean and efficient combustion.
Technical parameters
| Water volume | 80 L |
|---|---|
| Boiler weight | 436 kg |
| Maximum log length | 530 mm |
| Minimum return water temperature | 65 °C |
| Fuel hopper capacity | 120 dm³ |
| Prescribed fuel | Seasoned wood with calorific value 15 – 18 MJ/kg, diameter 80 – 150 mm and moisture content 12 -20 % |
| Prescribed chimney draft | 25 Pa |
| Energy efficiency class | A+ |
| Combustion class | 5 |
| Power | 32 kW |
| Code | DC32GS |
| Brand | Atmos |
The technical parameters of the Atmos DC32GS are critical for proper system sizing and integration. The 32 kW output and 80 L water volume are key factors in determining the system's thermal response and heat retention. The 120 dm³ fuel capacity allows for extended operation between refuels, while the minimum return water temperature of 65°C ensures that the system remains within safe operating limits. The required chimney draft of 25 Pa must be verified during installation to maintain stable combustion.
Installation and connection
Installation of the Atmos DC32GS requires careful planning to accommodate the 436 kg weight and the need for a stable foundation. The stove must be connected to a chimney with the specified draft and equipped with a flue damper for control. The flue connection is made via a vertical flue channel with a flue collar at the top. Installers should verify that the chimney is free of obstructions and that the draft meets the required 25 Pa. Common installation errors include incorrect chimney sizing, failure to provide adequate ventilation, and improper placement of the fuel hopper.
Compatibility and accessories
The Atmos DC32GS is compatible with standard hydronic heating systems and can be integrated with up to three heating circuits, domestic hot water systems, and solar thermal systems when equipped with the ACD04 control panel. Additional components such as expansion vessels, safety valves, and circulation pumps may be required depending on the system configuration. The model can also be ordered with an integrated ACD04 control panel for advanced system management.
Technical background for designers
The Atmos DC32GS operates on the principle of generator combustion, where wood is burned in a controlled environment to produce hot gases that are then used to heat water in a separate chamber. The combustion chamber is lined with ceramic refractory bricks to retain heat and improve efficiency. The system uses a built-in exhaust fan to remove combustion gases, reducing emissions and ensuring a smoke-free environment. The ceramic lining and robust steel construction contribute to the stove's durability and long service life. The integration of a cooling loop prevents overheating and protects the internal components from thermal stress.
Service and operation
Regular maintenance of the Atmos DC32GS includes cleaning the combustion chamber and flue system to remove soot and ash. The exhaust fan should be inspected for blockages and the flue damper checked for proper operation. The fuel hopper should be emptied and cleaned periodically to prevent clogging. The system is designed to shut down automatically when the fuel is exhausted, protecting the unit from overheating. No specific service intervals are provided in the technical data, but routine checks are recommended to ensure continued performance.
Frequently asked questions
Can the Atmos DC32GS be used with a solar thermal system?
Yes, the model can be integrated with a solar thermal system when equipped with the ACD04 control panel, which allows for the management of multiple heating sources.
Is the Atmos DC32GS suitable for use with logs longer than 530 mm?
No, the maximum log length is specified as 530 mm in the technical data, and exceeding this may cause feeding issues or blockages.
Can the minimum return water temperature be adjusted below 65°C?
No, the minimum return water temperature is fixed at 65°C to ensure safe and efficient operation of the system.
Is the Atmos DC32GS compatible with a condensing boiler?
Yes, the stove can be connected to a condensing boiler as part of a combined heating system, provided the system is designed to handle the thermal output and return water temperature.
Additional parameters
| Category: | Atmos GENERATOR |
|---|---|
| Warranty: | 2 years |
| Weight: | 501.4 kg |
| Boiler output: | 29 – 40 kW |
| Fuel: | wood |
| Boiler weight: | 436 kg |
| Combustion class: | 5 |
| Energy efficiency class: | A+ |
| Hopper capacity: | 120 dm³ |
| Max. log length: | 530 mm |
| Minimum return water temperature: | 65 °C |
| Output: | 32 kW |
| Prescribed fuel: | dry wood with a calorific value of 15 – 18 MJ/kg, diameter 80 – 150 mm and moisture content 12 -20 % |
| Prescribed chimney draught: | 25 Pa |
| Water volume: | 80 L |
