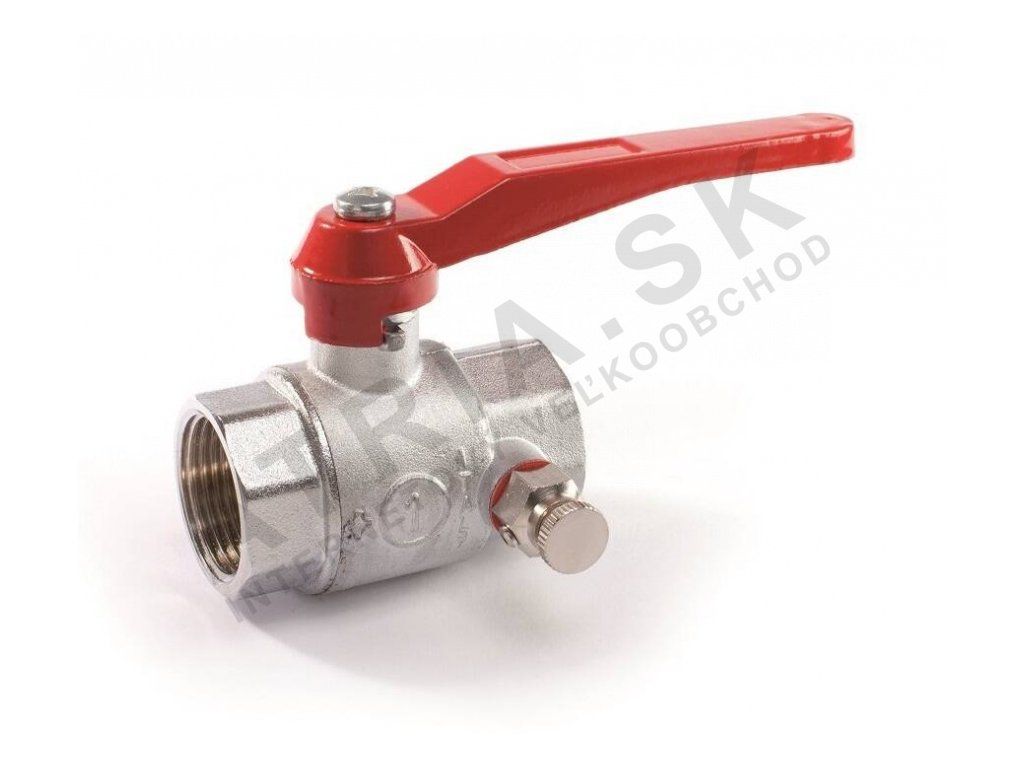

Ball cap - with drainage, 1" FF

Product detailed description

Ball valves with drainage are essential components in water systems where controlled flow and periodic draining are required. These valves are commonly used in heating, plumbing and irrigation systems in residential, commercial and industrial buildings. Installers and service technicians often encounter these valves in applications such as pipe isolation, system draining and maintenance access. The design allows for reliable shut-off and easy access to drain residual water, making it suitable for systems with seasonal operation or periodic maintenance requirements.

When installing ball valves with drainage, it is important to consider the system pressure and temperature conditions. The valve must be correctly sized and connected to ensure a secure and leak-free installation. The presence of a drainage feature requires additional attention to the location and accessibility for maintenance purposes. These valves are typically installed in positions where they can be easily reached for operation and inspection.

Technical parameters

Installation and connection

Installation of this ball valve requires a 1 inch FF (female-female) threaded connection. The internal thread must be matched with the corresponding male thread on the pipe or fitting. Before tightening, ensure the sealing material is applied correctly to prevent leaks. Check that the valve is fully aligned with the pipe axis to avoid stress on the threads. A common mistake is over-tightening, which can damage the threads or sealing surface. Always verify the valve position and orientation to ensure the drainage port is accessible and not obstructed by surrounding structures.

Compatibility and accessories

This ball valve is compatible with standard water systems using 1 inch FF threaded connections. It is typically used in conjunction with pipes, fittings and other valves of the same thread type. No additional accessories are required for basic installation. However, sealing materials such as PTFE tape or thread sealant may be used to enhance the connection's integrity. For specific applications, it may be necessary to use additional components such as drain pipes or isolation fittings to manage the drainage function effectively.

Technical background for designers

The ball valve operates by rotating a spherical disc with a bore to control the flow of water. The nickel-plated brass CW617N material offers good mechanical strength and resistance to corrosion in water environments. The PN 25 rating ensures the valve can handle moderate pressure conditions typical of water supply and distribution systems. The drainage feature allows for the controlled release of water, which is useful for maintenance and system draining. The valve's performance and service life depend on the quality of the installation, the cleanliness of the water and the absence of excessive vibration or pressure surges in the system.

Service and operation

Regular inspection of the valve is recommended to ensure it remains leak-free and operates smoothly. Check the threads and sealing surfaces for signs of wear or corrosion. The drainage port should be tested periodically to confirm it functions correctly. No specific service intervals are provided, but any signs of leakage or operational issues should be addressed promptly. If the valve is used in a system with high water hardness, periodic cleaning may be necessary to prevent mineral deposits from affecting the valve's performance.

Frequently asked questions

Can this ball valve be used in hot water systems?
Yes, the valve is suitable for hot water systems with a maximum operating temperature of +80 °C.

Is the drainage port accessible after installation?
The drainage port should be positioned to allow easy access for maintenance and draining operations.

What type of sealing material is recommended for the connection?
PTFE tape or thread sealant is suitable for ensuring a leak-free connection on the 1 inch FF threads.

Can this valve be used in irrigation systems?
Yes, provided the system operates within the specified pressure and temperature limits and uses compatible fittings.
