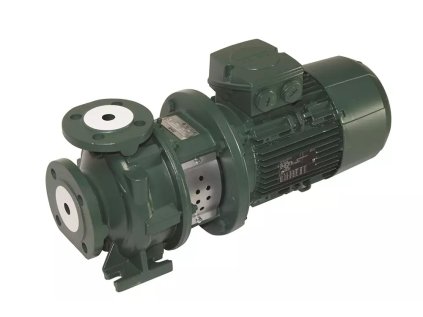

DAB.NKM-G, DAB.NKP-G - standard monoblock pumps

STANDARDIZED MONOBLOC CENTRIFUGAL PUMPS

DAB.NKM-G, DAB.NKP-G

Cast iron standard monobloc split shaft pump with radial or radiaxial cast iron or bronze impeller
Standard mechanical seal: carbon/silicon carbide/EPDM
Standard three-phase enclosed asynchronous motor, externally cooled, B3/B5 shape, four-pole for NKM-G version, two-pole for NPK-G version
Degree of protection: IP55
Insulation class: F
Pumped liquid: clean, free of solids or abrasive substances, non-aggressive, non-viscous, non-crystallising and chemically neutral, properties close to water
Liquid temperature range: -10 °C to +140 °C
Maximum ambient temperature: +40 °C
Maximum working pressure: 16 bar (1600 kPa) (max. 10 bar for DN 200)
PN 16 DIN 2533- PN 10 DIN 2532 for DN 200
Special design on request: pumps for liquids other than water, other voltage or frequency
Operating range: flow from 1 to 105 m3/h with a discharge up to 96 m.
