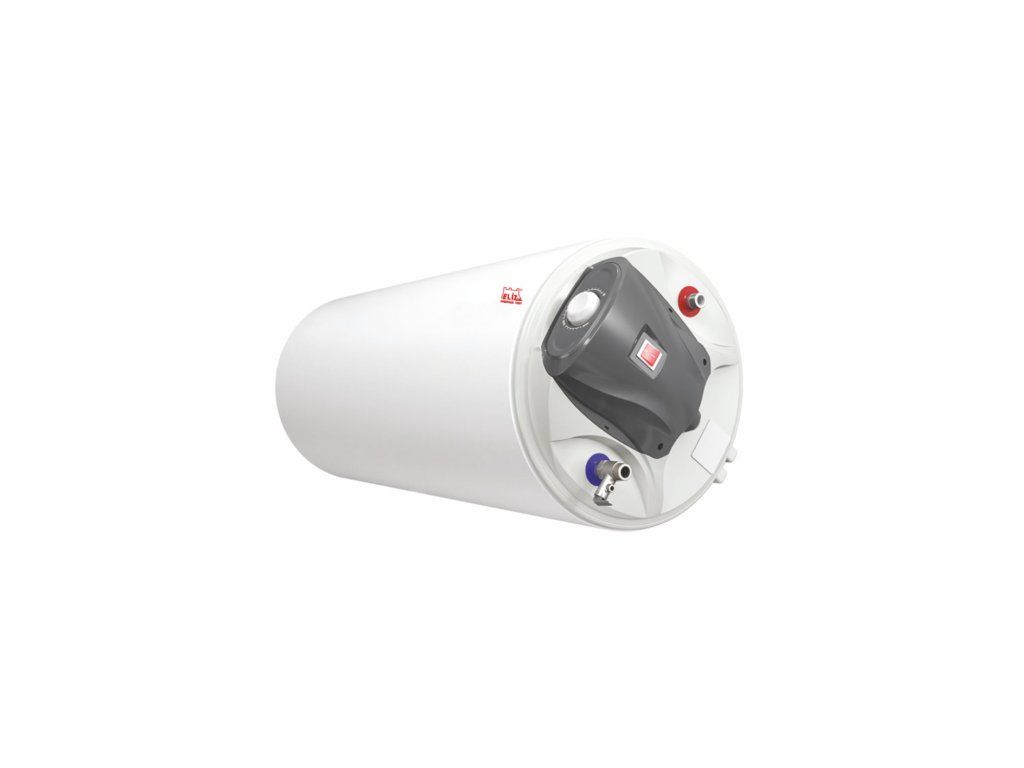

ELÍZ EURO 120 XR | ELZ_3431 | 120 L | Wall-mounted Electric Water Heater

Product detailed description

Wall-mounted electric water heaters are commonly used in residential and commercial buildings where space is limited and a compact solution is required. The ELÍZ EURO 120 XR is suitable for applications such as bathrooms, kitchens, and small service areas where a reliable supply of hot water is needed for one or more outlets. It is typically integrated into domestic hot water systems and can be used in conjunction with other plumbing components such as taps, showers, and mixing valves. The unit is designed for horizontal wall mounting and is intended for installation in dry, indoor environments. The right-side water connections simplify integration with existing pipe layouts, and the compact dimensions allow for installation in confined spaces. The unit is suitable for use in systems where electrical heating is the primary method of water heating and where a stable supply of mains water is available.

When selecting a water heater for a specific installation, it is important to consider the required flow rate, the number of outlets, and the desired temperature range. The ELÍZ EURO 120 XR is suitable for installations where the demand for hot water is moderate and where the system is not subject to high-pressure fluctuations. The unit is designed for use in systems with a maximum pressure of 6 bar and is compatible with standard domestic plumbing systems. The 2000 W power rating allows for relatively quick heating, and the thermostat enables precise temperature control. The unit is also equipped with a built-in safety cut-out to prevent overheating and damage to the system.

Technical parameters

type	EURO 120 XR
power	2000 W
voltage	230 V
current	10 A
electrical protection	IP 24
water connection	1/2 inch
maximum tank pressure	6 bar
heating time from 12 to 65 °C	3.8 hours
wall mounting	yes
safety cut-out	yes
weight	34 kg
product dimensions	width / height / depth: 1170 x 462 mm
tank warranty	5 years
product warranty	2 years
EAN	3800035727432
Code	ELZ_3431
Brand	ELIZ

The technical parameters of the ELÍZ EURO 120 XR are essential for determining its suitability for a specific installation. The 2000 W power rating and 230 V supply indicate the electrical requirements of the unit, while the IP24 rating ensures protection against dust and water splashes. The maximum operating pressure of 6 bar is a key factor in determining the compatibility of the unit with the existing plumbing system. The 120 L capacity and 3.8-hour heating time from 12°C to 65°C are important for sizing the unit to meet the hot water demand of the installation. The IP24 rating also ensures that the unit can be installed in environments where it may be exposed to splashing water, such as near sinks or showers.

Installation and connection

The ELÍZ EURO 120 XR is designed for horizontal wall mounting and requires a stable mounting surface. The installation should be carried out by a qualified electrician and plumber to ensure compliance with local regulations and safety standards. The unit has 1/2 inch water connections on the right side, which should be connected to the cold and hot water supply lines. It is important to ensure that the connections are properly sealed to prevent leaks and that the unit is securely mounted to the wall to prevent movement or vibration. The electrical supply should be connected to a dedicated circuit with a 10 A fuse to prevent overloading. The unit should be installed in a location that is easily accessible for maintenance and inspection. Common installation mistakes include incorrect electrical wiring, failure to secure the unit properly, and incorrect positioning of the water connections, which can lead to poor performance or damage to the unit.

Compatibility and accessories

The ELÍZ EURO 120 XR is compatible with standard domestic plumbing systems and can be used in conjunction with other plumbing components such as taps, showers, and mixing valves. The unit is supplied with a mounting bracket and a metal safety valve with a check valve, which are essential for proper installation and operation. Additional accessories such as expansion tanks, pressure regulators, and temperature controls may be required depending on the specific requirements of the installation. The unit is not compatible with high-pressure systems or systems that require a larger capacity than 120 L. It is also important to ensure that the electrical supply is compatible with the unit's requirements, including the correct voltage and current rating.

Technical background for designers

The ELÍZ EURO 120 XR operates by heating water using an electric heating element, which is controlled by a thermostat. The unit is designed to maintain a stable temperature within the tank and to provide a continuous supply of hot water to the outlets. The steel tank is coated with a layer of zirconium enamel, which provides protection against corrosion and extends the service life of the unit. The polyurethane insulation with a thickness of 33 mm reduces heat loss and improves the efficiency of the unit. The dual anode protection system, consisting of two magnesium anodes, provides additional protection against corrosion and helps to maintain the quality of the water. The integration of the unit into the system depends on the specific requirements of the installation, including the number of outlets, the flow rate, and the desired temperature range. The service life and efficiency of the unit are influenced by factors such as the quality of the installation, the maintenance schedule, and the operating conditions.

Service and operation

The ELÍZ EURO 120 XR requires regular maintenance to ensure optimal performance and longevity. The unit should be inspected periodically for signs of wear, damage, or corrosion. The anodes should be checked and replaced as needed to maintain the protection against corrosion. The electrical connections should be inspected for signs of overheating or damage, and the thermostat should be tested to ensure that it is functioning correctly. The unit should be drained and flushed periodically to remove sediment and scale buildup, which can reduce efficiency and affect the quality of the water. The service intervals are not specified in the brief, but it is recommended to follow the manufacturer's guidelines for maintenance and inspection. The unit is equipped with a built-in safety cut-out to prevent overheating and damage to the system, and the ECO mode helps to reduce energy consumption and extend the service life of the unit.

Frequently asked questions

Can the ELÍZ EURO 120 XR be connected to a high-pressure system?
No, the unit is designed for systems with a maximum pressure of 6 bar. Connecting it to a high-pressure system may cause damage to the unit.

Can the temperature of the water be adjusted?

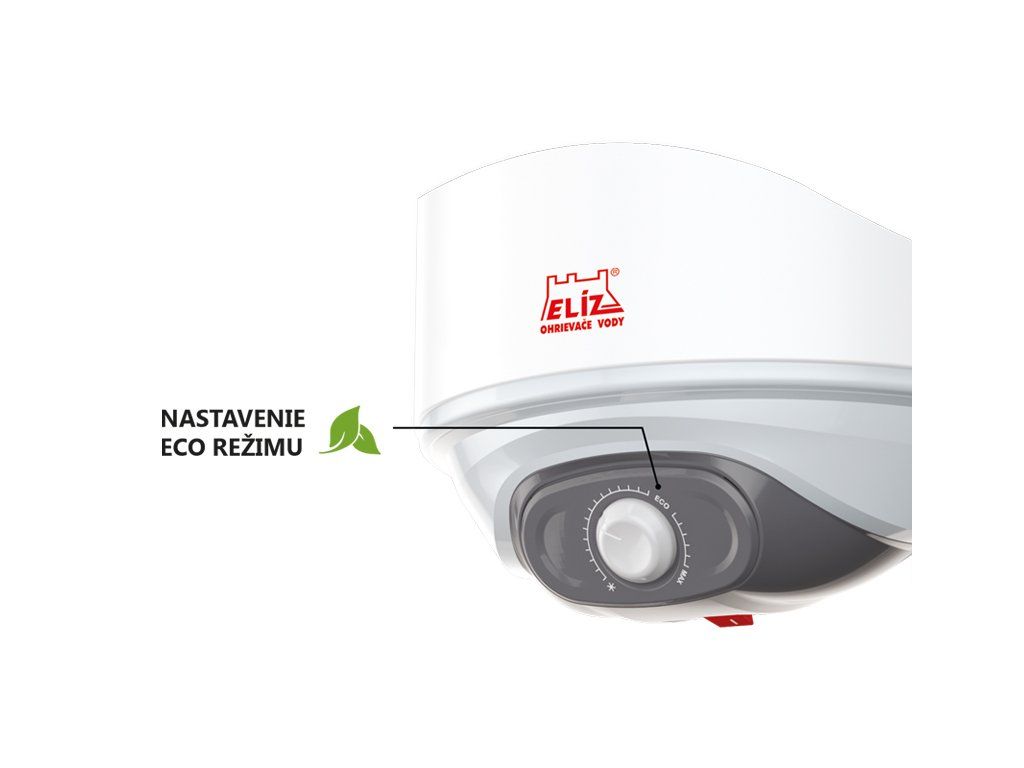

Yes, the unit is equipped with a thermostat that allows the temperature to be set between 7°C and 75°C. The ECO mode is also available for energy-efficient operation.

Can the unit be installed in a wet area?
Yes, the unit has an IP24 rating, which provides protection against dust and water splashes. It is suitable for installation in dry, indoor environments but not in areas with high humidity or direct water exposure.

Can the unit be used in a system with multiple outlets?
Yes, the unit is suitable for use in systems with one or more outlets. The capacity of 120 L and the 2000 W power rating make it suitable for moderate hot water demand.
