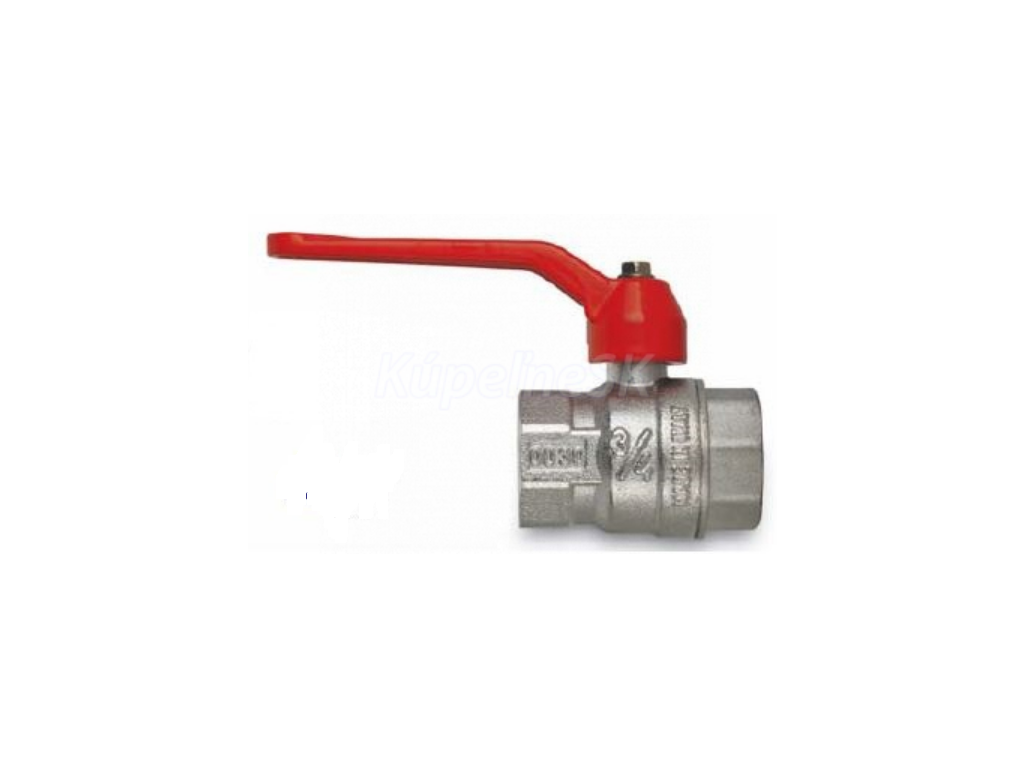

Gv. internal - internal, 5/4" FF

Product detailed description

Ball valves are essential components in plumbing and heating systems, particularly where reliable shut-off is required. This internal-to-internal ball valve is designed for use in water distribution systems, air circuits and other non-corrosive media applications. It is commonly found in residential, commercial and industrial settings, including domestic hot and cold water systems, HVAC circuits and process water lines. Installers should ensure that the valve is correctly aligned during installation to prevent stress on the body and guarantee leak-free operation.

The valve is intended for use in closed-loop systems where periodic shut-off is needed for maintenance or isolation. It is not recommended for high-vibration environments or where frequent cycling is expected without proper maintenance. The valve’s design ensures minimal operational force due to the specially contoured ball and sealing profile, reducing wear and extending service life.

Technical parameters

Installation and connection

This ball valve is connected using internal threads on both ends (FF), with a 5/4 inch nominal size. Installers should ensure that the pipe ends are clean and free from debris before threading to avoid damaging the sealing surfaces. The valve must be fully aligned with the pipeline to prevent bending forces that could cause leaks or mechanical stress. It is recommended to perform a hand-tight test before final tightening to verify correct positioning.

• Ensure the pipeline is de-pressurised before installation.
• Do not apply force to the valve body during tightening; use a wrench on the pipe only.
• Avoid welding within 20 cm of the valve edge to prevent heat damage.
• Verify that the valve is installed in a location accessible for future inspection or replacement.

Common installation errors include misalignment of the valve body, over-tightening the connections and failing to clean the threads before assembly. These issues can lead to leakage or premature failure.

Compatibility and accessories

This valve is compatible with standard copper, PPR and steel piping systems. It is typically used in conjunction with pipe fittings such as elbows, tees and couplings. No additional accessories are required for installation, provided the system is already equipped with the appropriate piping. No related products are available for this model.

Technical background for designers

The valve operates on the principle of a rotating ball with a central bore. When the lever is turned, the ball aligns with the flow path to allow media passage or rotates to block it. The specially contoured ball surface reduces contact area with the sealing seat, minimising friction and preventing particulate matter from interfering with the seal. The nickel-plated brass body offers good mechanical strength and corrosion resistance, while the approved sealing materials ensure compliance with potable water standards. The valve is not designed for disassembly and should not be modified after installation.

Designers should consider the valve’s pressure and temperature limits when integrating it into a system. The valve is suitable for use in closed-loop water systems and is not recommended for aggressive or chemically treated media. Its compact design allows for installation in tight spaces, and the lever orientation can be adjusted for ease of access.

Service and operation

This valve requires no regular maintenance. However, it is recommended to fully cycle the valve once every six months in active water systems to prevent sediment build-up on the ball surface. The valve must not be disassembled under any circumstances, as this will compromise its integrity. In the event of damage or malfunction, the entire unit must be replaced. The maximum allowable temperature during operation is 185 °C, beyond which the valve may suffer permanent deformation.

Frequently asked questions

Can this valve be used in potable water systems?
Yes, the valve is certified for potable water use and constructed from materials approved for drinking water applications.

Is it possible to replace the lever or handle separately?
Yes, the lever can be replaced independently of the valve body if damaged, provided the correct replacement part is available.

Can the valve be welded directly to the pipe?
No, welding must be performed at least 20 cm away from the valve body to avoid heat-induced damage.

What should be done if the valve becomes difficult to operate?
If the valve becomes stiff, it should be cycled through its full range of motion manually. If this does not resolve the issue, the valve should be replaced as it is not designed for disassembly.
